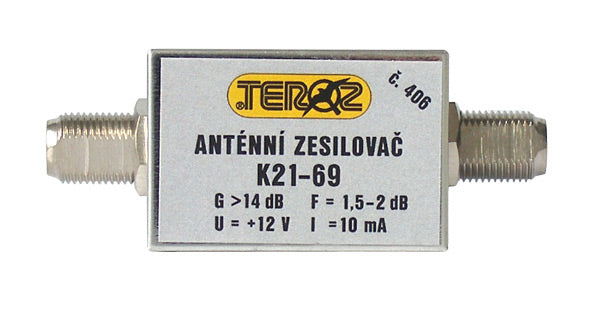

Antenna amplifier TEROZ 406X, low noise, UHF, G14dB, F1.5dB, U98dBµV, F-F

The Teroz 406X antenna preamplifier is a single-transistor low-noise amplifier K21 – 69 (470 – 862 MHz) with a low-noise high-frequency transistor of the BFP series. The amplifier input has a UHF high-pass filter that suppresses unwanted signals below the operating band.

Technical parameters:

- gain G: 14 dB
- noise F: 1.5 dB
- transmitted band: K21 to K69
- max. output level for 2 TV channels: 98 dBµV
- input and output impedance: 75 ?
- power supply to the output connector: 12V/10mA
- input and output connector: F female
- box dimensions: 24 x 36mm
- installation in the environment: indoor
