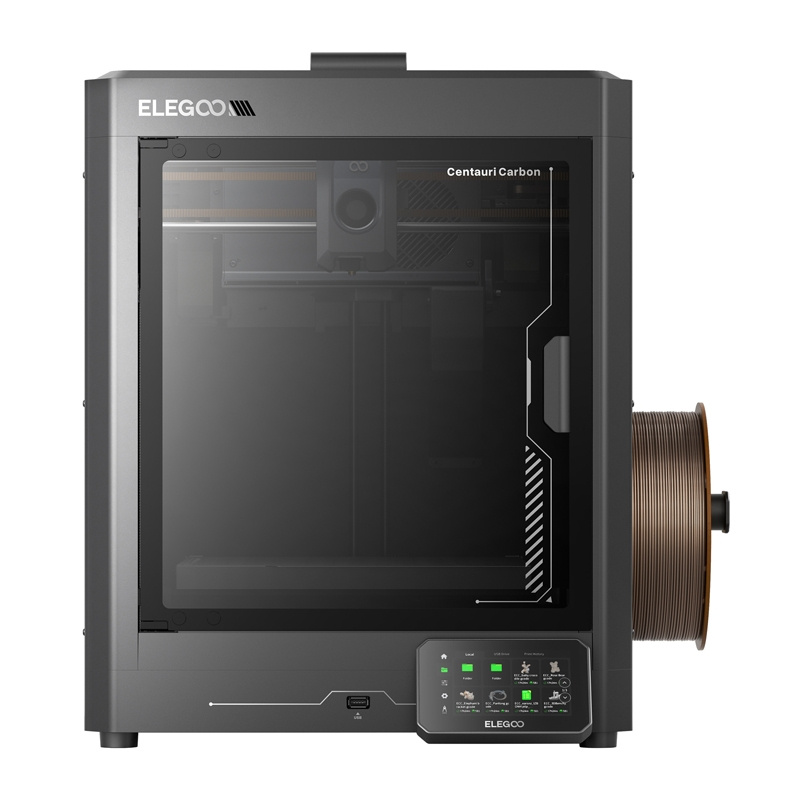

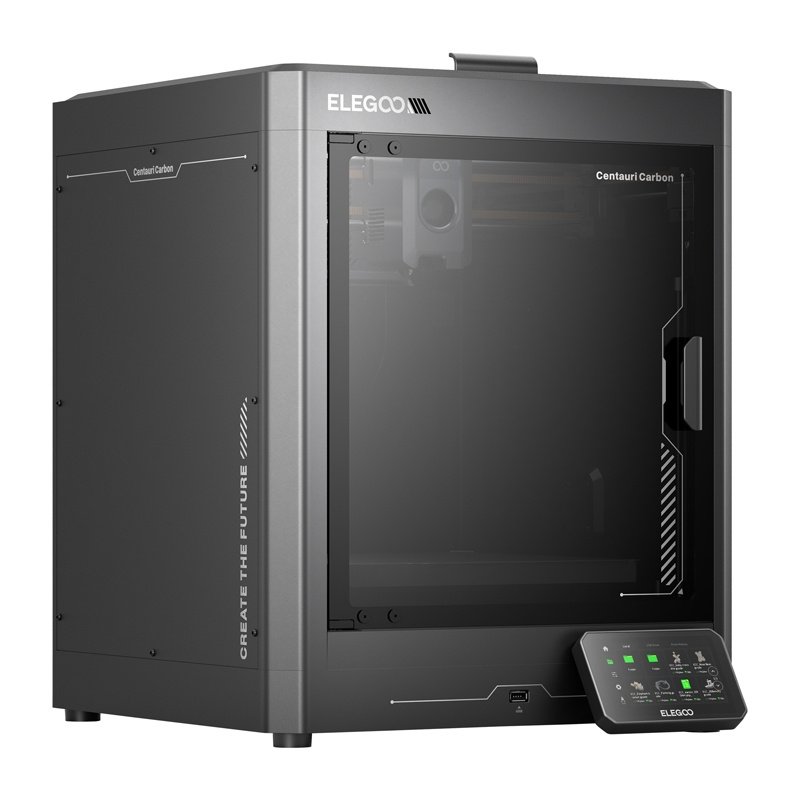

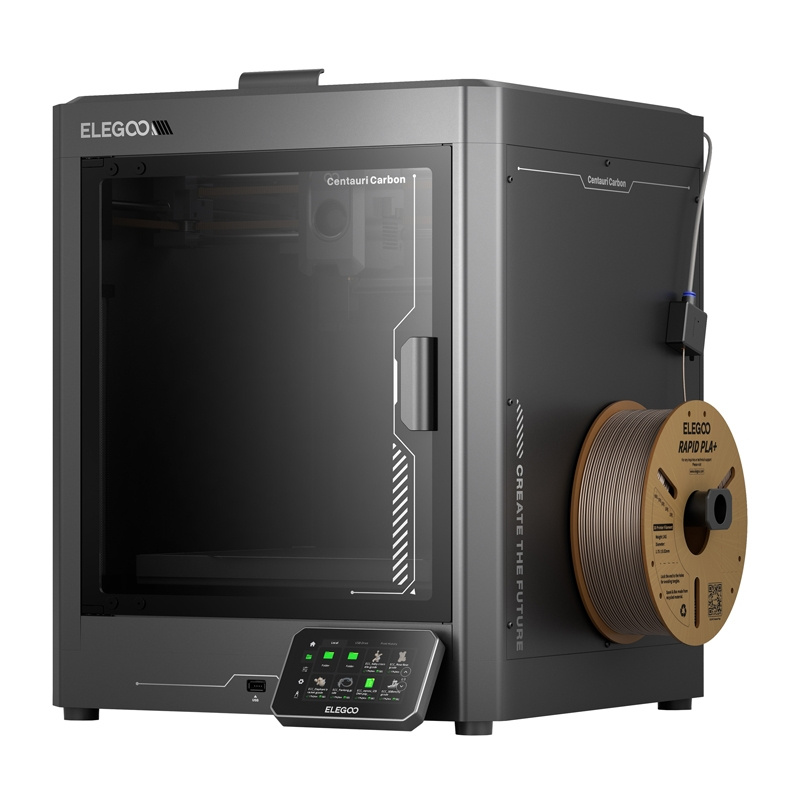

3D Printer ELEGOO Centauri Carbon

ELEGOO Centauri Carbon is an advanced 3D printer designed for professionals, engineers and 3D printing enthusiasts. With the latest CoreXY heated chamber kinematics and a robust design, it provides unmatched accuracy, stability and the ability to work with a wide range of materials. With a maximum nozzle temperature of 320 °C and a built-in automatic leveling system, every print is precise and perfectly reproduced, regardless of the complexity of the model.

Stability at any speed
The Centauri Carbon features a robust cast aluminum frame and additional reinforcements in the form of four aluminum alloy columns and stainless steel side panels. This design ensures excellent stability even at high printing speeds. The machine can reach speeds of up to 500 mm/s, which significantly reduces production time without compromising quality.

Printing from demanding materials
The use of a closed chamber with an active heating system allows you to work with demanding filaments that require stable temperature conditions. Centauri Carbon supports a wide range of materials, including PLA, PETG, TPU, ABS, ASA, and carbon fiber-reinforced filaments such as PETG-CF and PA-CF. Users can create flexible and extremely durable models that can withstand high temperatures and mechanical stress.

Cooling System - Precision in Every Detail
Centauri Carbon is equipped with an advanced cooling system that includes a high-speed model fan, an auxiliary fan for parts, and an external cabinet fan. This solution ensures optimal chamber temperatures, which effectively prevents layer deformation and enables extremely precise print details.

Stable Filament Feeding and Automatic Cutting
A dual hardened steel extruder ensures smooth and precise material feeding, even when printing at high speeds. The built-in automatic filament cutter allows for fast and precise cutting and turning of the material, eliminating the problem of clogged nozzles and increasing the overall reliability of the device.

CoreXY Kinematics - Speed ??and Accuracy
By using CoreXY kinematics, the printer achieves high precision and printing speed while reducing the weight of moving parts. Thanks to this, the Centauri Carbon not only works faster than standard 3D printers, but also provides better detail reproduction and higher print repeatability.

Automatic Z-axis leveling and compensation
The printer is equipped with an automatic calibration system that uses four precise pressure sensors and an intelligent Z-axis compensation algorithm. Thanks to this, the user can fully concentrate on designing, and the leveling of the table itself is done with a single click, eliminating the need for manual adjustments.

Full control over printing
Centauri Carbon offers a function of recording the printing process using a built-in time-lapse camera. Users can watch the printing process live, analyze any errors and document the entire process in high resolution, which is especially useful for industrial and educational applications.

Professional printer for the most demanding
ELEGOO Centauri Carbon is a device that will satisfy the needs of both amateurs and professionals. Thanks to the combination of high printing speed, precise temperature control, automatic leveling and compatibility with a wide range of materials, this printer is an excellent choice for anyone looking for reliability and top quality prints.

Technical parameters:

Printer:
Working space. 256 x 256 x 256 mm
Working platform size: 260 x 260 mm
Product size: 398 x 404 x 490 mm
Gross weight: 21 kg
Speed:
Printing speed: ? 500 mm/s
Acceleration: 20000 mm/s2
Temperature
Ambient temperature: 5-40?
Maximum heated bed temperature: 110?
Maximum nozzle temperature: 320?
Power: 1100W at 220V, 350W at 110V
Voltage: 100-240V, 50/60Hz
Tool head:
Nozzle: 1
Nozzle diameter: 0.4mm (default setting)
Printing accuracy: ± 0.1mm
Layer thickness: 0.1-0.4mm (0.2mm recommended)
Extruder Type: Hardened Steel Dual Speed ??Extruder
Reduction Ratio: 5.2
Supported Filament:
Recommended: .PLA, PETG, TPU, ABS, ASA, PLA-CF
Compatible: PETG-CF, ABS-CF, ASA-CF, PET-CF, PA-CF, PET, PC, PA
Filament Diameter: 1.75mm
Filament Cutter: Yes
Sensors:
Filament Leakage Sensor
Power Loss Recovery
Cooling:
High Speed ??Cooling Fan Model: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Control Board Fan: Closed Loop Control
Chamfer Temperature Controller Fan: Closed Loop Control
Air Filter: Nano Mineral Crystal Filters
Connection: USB Memory, Wi-Fi
Display: 4.3-inch color capacitive touch screen
Motherboard: Dual-core, fast and quiet motherboard
Software:
Slicing software: ELEGOO Slicer (recommended)
Supported file formats: STL, OBJ, 3MF, STP
Printing file format: Gcode

Package contents:

Touch screen
Spool holder
Filament sample
Power cable
Clog removal tool
Allen key set (1.5/2.0/2.5/3.0mm)
Screwdriver
Replacement nozzle/heating table squeegee
USB
Scraper
User manual
