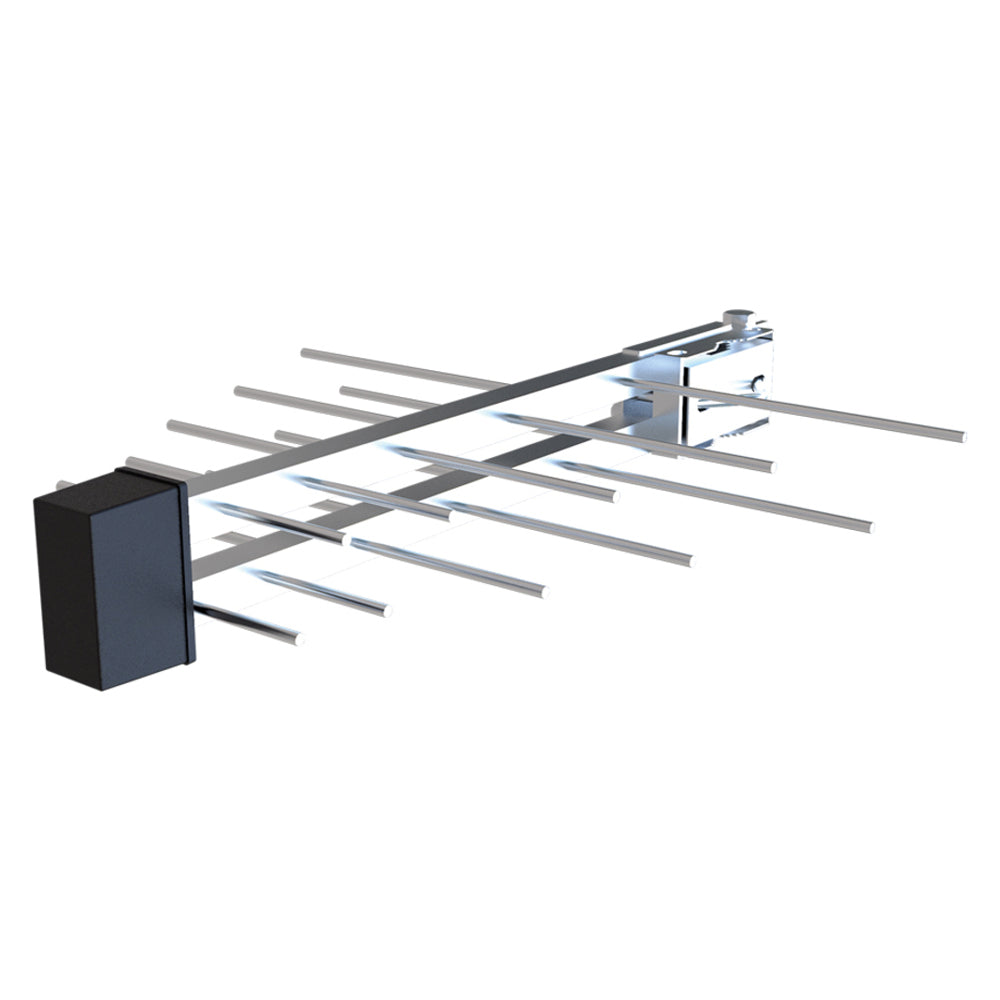

Outdoor antenna SENCOR SRT ANT100 Strong

The SRTANT100 outdoor UHF TV antenna is an all-in-one solution for optimal DVB-T/T2 signal reception. This antenna is compatible with both horizontal and vertical polarization and includes a U-mounting system for quick and easy installation.

- Outdoor UHF antenna 16-18 dB for optimal reception of DVB-T/T2 signals
- Integrated low noise amplifier
- Highly compact dimensions for quick and easy installation
- Horizontal and vertical reception
- Including an external 5G/4G LTE filter to improve reception
- Two mounting methods
- Long service life and weather resistance
- Suitable for all DVB-T/T2 receivers supporting active antenna power supply (5 V)*
- Including an external 5G/4G LTE filter to improve reception
- Integrated high gain amplifier for optimal signal strength and performance
- Low V.S.W.R
- Compatible with both horizontal and vertical polarization
- U mounting system, 20m RG6 coaxial cable, 5V power crossover for quick and easy installation
- Great reception even in challenging environments

Technical parameters:

- V.S.W.R: < 2.5 dB
- Reception range: UHF
- LTE filter: External 5G/4G LTE filter
- Arm length: 400 mm
- Frequency range (UHF): 470~790 MHz
- UHF active antenna gain: 16 – 18 dB
- RF impedance at the output: 75 Ohm
- VF Coaxial cable: 20 m black RG6 coaxial cable with IEC plug connector and F connector
- Connector type: F
- Power adapter input: 5V adapter (USB) + power switch
- Dimensions (W x D x H): 400 x 310 x 55 mm
- Net weight: 335 g

Package contents

- 1× Outdoor UHF TV antenna with integrated amplifier
- 1× 5G/4G filter
- 1× Short coaxial cable with connectors IEC socket - IEC plug
- 1× 5V adapter (USB) + power switch
- 1× 20 m black RG6 coaxial cable with IEC plug connector and F connector
- 1× U mounting system with longer legs
- Quick Start Guide
- Simplified CE declaration of conformity
- Safety and warranty sheet
