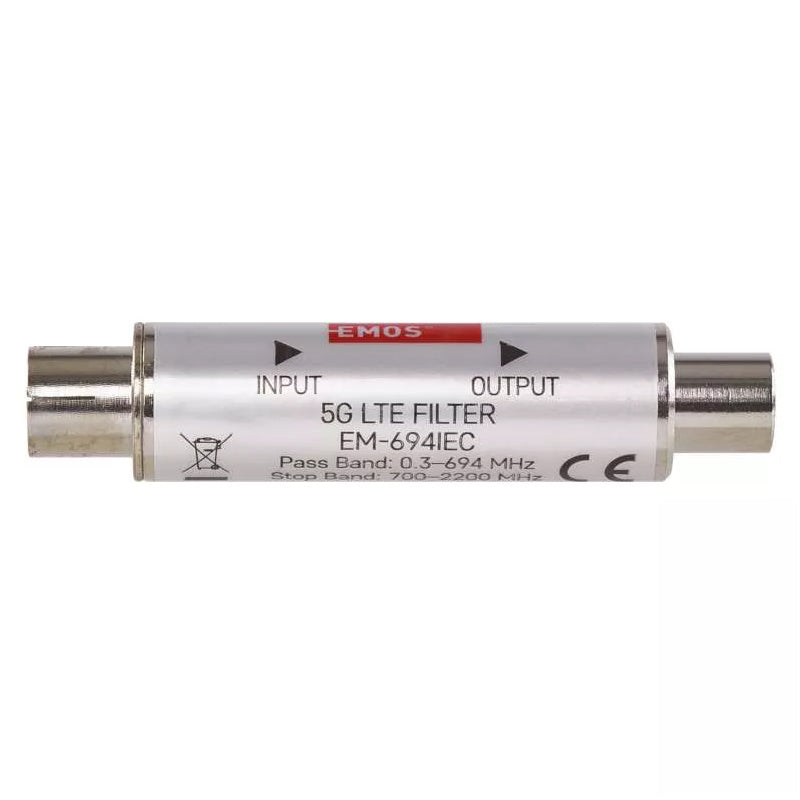

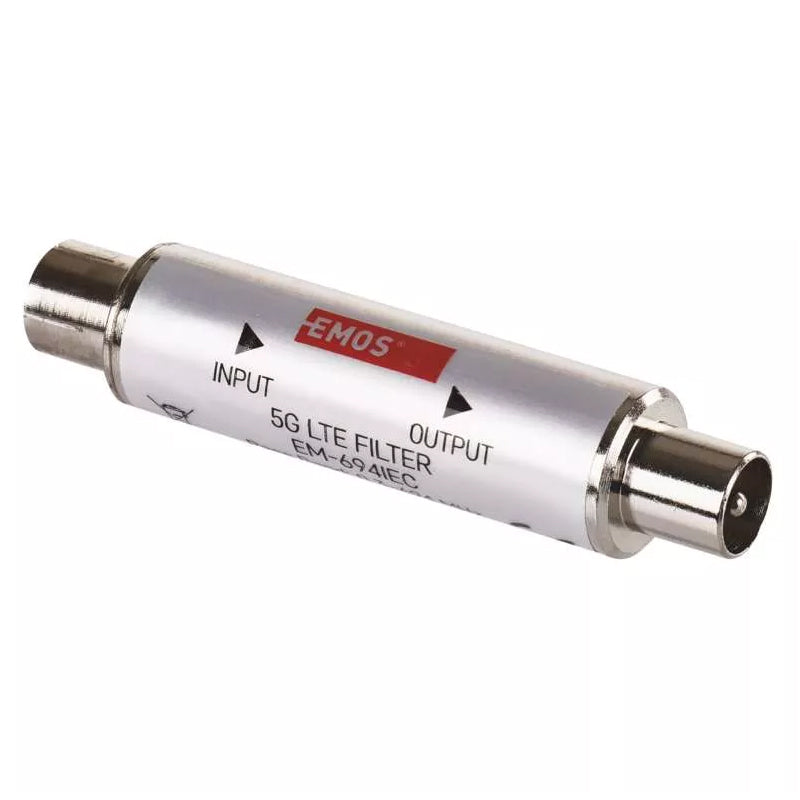

Antenna filter EMOS EM694IEC
Anténní filtr 5G - dolní propust, frekvenční rozsah 0,3 až 694MHz, potlačené pásmo 700–2400MHz, útlum v potlačeném pásmu více než 45dB, konektory IEC, průchozí pro stejnosměrné napájení předzesilovačů až 300mA, LTE filtr, krytí IP20, rozměry 16 × 68 mm, 1 vstup a 1 výstup, vnitřní instalace
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
215,00 Kč
177,69 Kč
excl. VAT
Unit price
/
Unavailable
EMOS | SKU:
14411356
Antenna filter EMOS EM694IEC
Regular price
215,00 Kč
177,69 Kč
excl. VAT
Unit price
/
Unavailable
Product description
5G Filter EM694IEC
Technical parameters:
inputs: IEC connector
frequency range: 0.3–694 MHz
gain: not specified
noise figure: not specified
power supply: not specified
insulation between inputs: not specified
connectors: IEC connector
maximum output signal level: not specified
number of inputs: 1
number of outputs: 1
suppressed band: 700–2,400 MHz
attenuation in the suppressed band:> 45 dB
pass-through for DC preamplifier supply: yes, 300 mA
gain regulation: not specified
hole spacing: not specified
protection: IP20
size: 16 × 68 mm
LTE filter: yes
