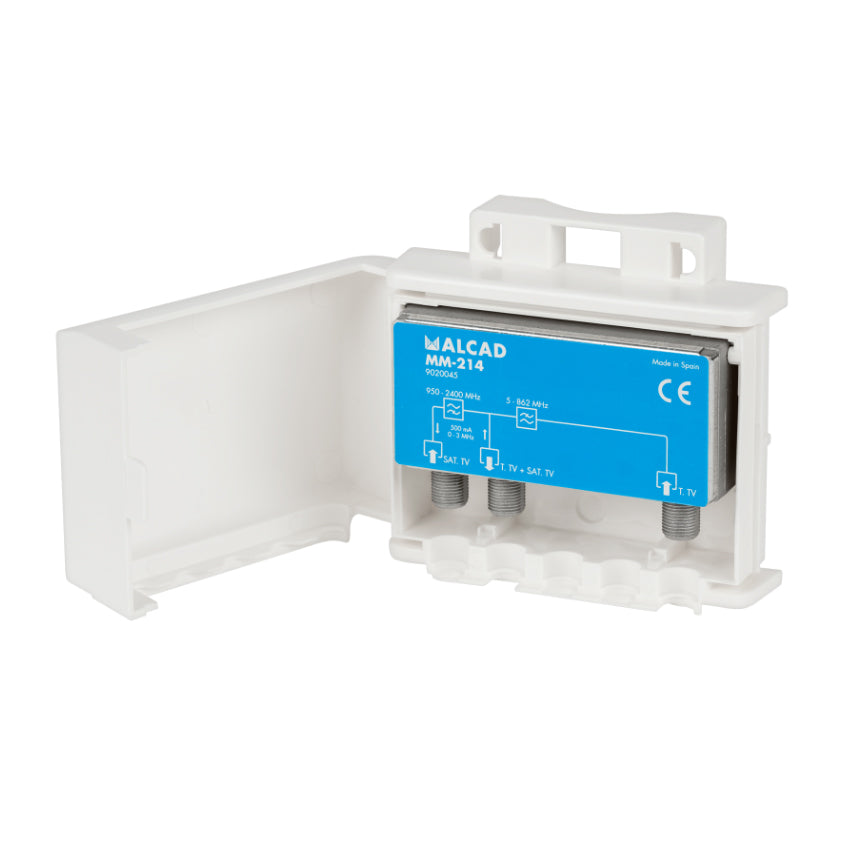

Antenna combiner ALCAD MM-214
Anténní slučovač - venkovní pásmový typ FM/TV/SAT, vstupy FM/TV (40–862 MHz) a SAT (950–2400 MHz), vložný útlum 1 ±0,5 dB, izolace mezi vstupy >35 dB, průchod napájení 0–500 mA na SAT vstupu, průchod 22kHz/DiSEqC pro SAT, konektory F, krytí IP53, pracovní teplota -10 až +65°C, odlitek s plastovým krytem, montáž na stožár
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
219,00 Kč
180,99 Kč
excl. VAT
Unit price
/
Unavailable
ALCAD | SKU:
14411384
Antenna combiner ALCAD MM-214
Regular price
219,00 Kč
180,99 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Outdoor combiner FM / TV / SAT - pass-through for power supply for SAT input. Can be attached to a mast.
- MM combiners are band combiners suitable for outdoor environments.
- The combiners are placed in a casting, which is protected against weather conditions by a plastic cover.
- Inputs and outputs are on F-connectors.
Technical parameters:
- number of inputs: 2
- inputs: FM/TV (40-862 MHz), SAT (950-2400 MHz)
- insertion loss: 1 ± 0.5 dB
- band ripple: ± 0.1 dB(FM/TV), ± 0.3 dB(SAT)
- isolation between inputs: >35 dB
- input reflection attenuation: >10 dB
- feed-through: 0-500 mA for SAT input (fixed)
- pass through for 22kHz/DiSEqC: yes (only for SAT input)
- connectors: F-connector
- working temperature: -10°C - +65°C
- degree of protection: IP 53
- MM combiners are band combiners suitable for outdoor environments.
- The combiners are placed in a casting, which is protected against weather conditions by a plastic cover.
- Inputs and outputs are on F-connectors.
Technical parameters:
- number of inputs: 2
- inputs: FM/TV (40-862 MHz), SAT (950-2400 MHz)
- insertion loss: 1 ± 0.5 dB
- band ripple: ± 0.1 dB(FM/TV), ± 0.3 dB(SAT)
- isolation between inputs: >35 dB
- input reflection attenuation: >10 dB
- feed-through: 0-500 mA for SAT input (fixed)
- pass through for 22kHz/DiSEqC: yes (only for SAT input)
- connectors: F-connector
- working temperature: -10°C - +65°C
- degree of protection: IP 53
