Emme Esse 83199CE, for mast, 4xUHF input for ant. quadruplet

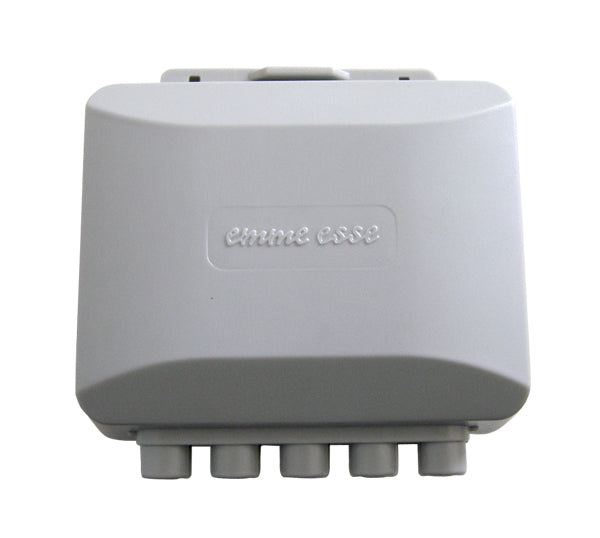

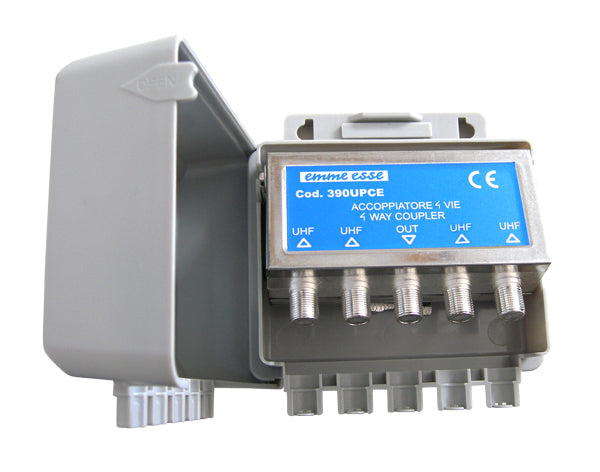

Combiner for small TV distribution, which can merge signals from up to four UHF TV antennas. It is advantageous for combining four identical UHF antennas to amplify a weak signal. Any doubling of the number of antennas means theoretically increasing the signal level by 3dB, practically taking into account the pass-through attenuation of the combiner and the inhomogeneity of the electromagnetic field. The antistatic plastic box is weather-resistant and is mounted on an antenna mast of max.diameter approx. 55mm using FeZn yoke with M4 thread and wing nuts. The combiner is located in the casting. The inputs and outputs of the combiner are type F connectors.

Technical parameters :

- number of inputs : 4
- number of outputs : 1
- operating frequency : UHF (470-862 MHz)
- Through attenuation : 0,2dB
- Isolation between inputs : <-16 dB
