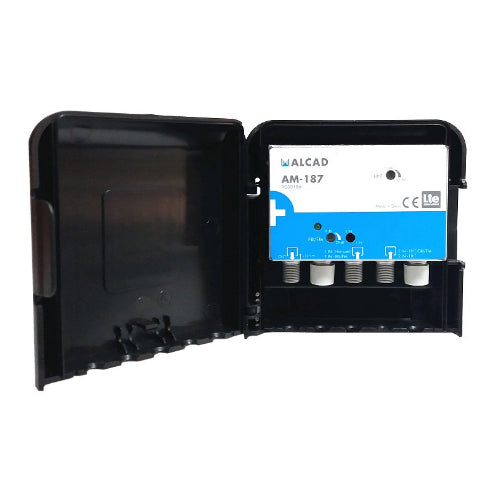

Antenna amplifier ALCAD AM-187

The new series of AM amplifiers are 1, 2, 3 and 4 input broadband home amplifiers suitable for outdoor use. Individual inputs have separate output level control. The amplifier's +12V power supply is implemented remotely via a coaxial cable via the output. The amplifiers manufactured using SMT technology are placed in a Zamac casting, which is protected against weather conditions by a new, more durable plastic cover. Inputs and outputs are on F-connectors. The plastic cover of the amplifier is adapted for both pole mounting (using the included bracket) and wall mounting. For selected inputs, the +12V/50 mA preamplifier power supply is implemented via a switch. The new series has improved electrical and mechanical connections between the printed circuit board and the Zamac casting, which leads to greater resistance to amplifier oscillation. The AM-187 amplifier has an integrated 5G filter.

Technical parameters:

Number of inputs: 1x FM/VHF, 1x UHF
Number of outputs: 1
Inputs: FM(88-108 MHz) _ DAB/BIII(160-260 MHz) _ UHF(470-694 MHz)
Gain: 20 dB (FM/DAB/BIII), 34 dB (UHF)
Rippling in the band: ±1 dB (FM/DAB/BIII), ±2 dB (UHF)
Gain control: 20 dB (FM/DAB/BIII), 16 dB (UHF)
Noise figure: 5 dB (FM/DAB), 3.5 dB (UHF)
Max. output level (DIN45004B): 108 dBµV
Max. output level (IMD3 -66 dB): 105 dBµV
Max. output level (IMD2 -60 dB): 93 dBµV
Suppression between inputs: >30 dB
Reflection attenuation at input: >10 dB

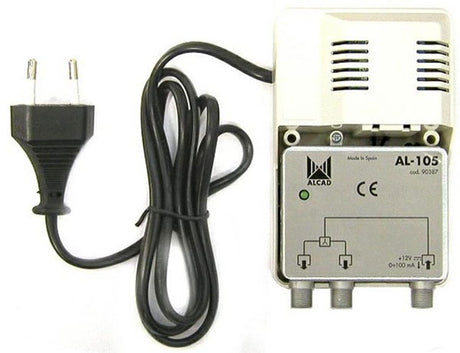

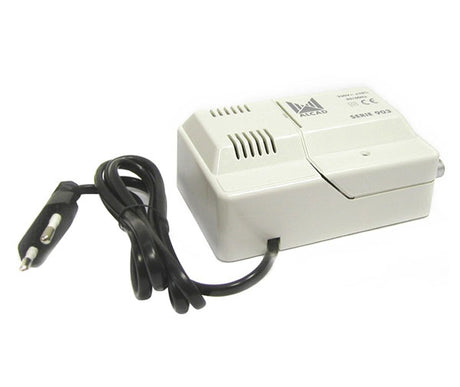

Power supply: +12V / 45 mA (external power supply AL-105 or AL-205)
Connectors: F-connector
Operating temperature: -10°C - +65°C
Protection degree: IP53
Weight: 0.22 kg
Package dimensions: 110 x 125 x 45 mm
