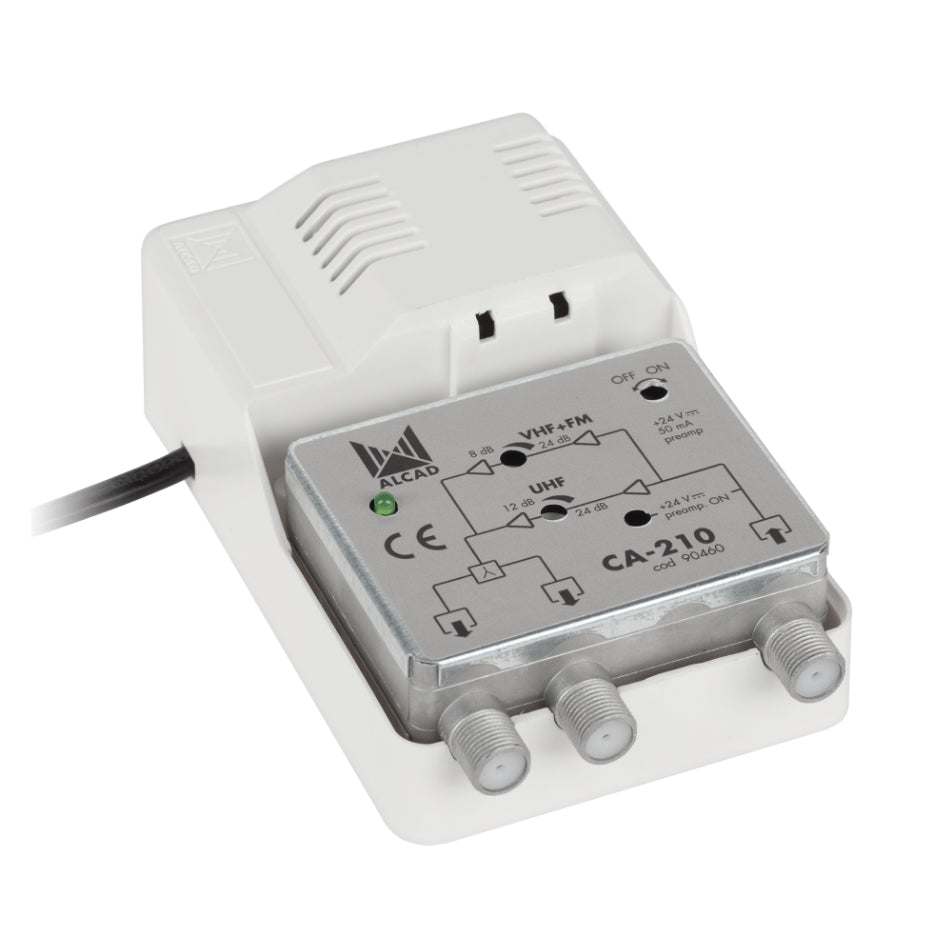

Antenna amplifier ALCAD CA-210
Distribuční anténní zesilovač - pásma VHF 40–400MHz a UHF 470–862MHz, 2 výstupy, zisk VHF 24dB, oddělené nastavení zesílení pro VHF a UHF pásmo, napájení předzesilovačů 24V/55mA, vhodný pro malé a soukromé instalace, nelze použít v kabelových TV sítích kvůli prázdné mezeře S20–S38, zabudovaný napájecí zdroj 230V
In stock 4 pcs
Expected shipping:
15.06.2026
Sale price
625,00 Kč
Regular price
650,00 Kč
516,53 Kč
excl. VAT
Unit price
/
Unavailable
ALCAD | SKU:
14411383
Antenna amplifier ALCAD CA-210
Sale price
625,00 Kč
Regular price
650,00 Kč
516,53 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The CA-210 amplifier is used as a distribution device in small or private installations to provide the necessary signal level for multiple receivers.
The amplifier operates in the 40 - 400 MHz and 470 - 862 MHz bands. Thanks to separate gain settings for the VHF and UHF bands, the gain level can be set to match each signal level. This simplifies installations using a single cable to send signals from all antennas.
It can be used in community installations. Due to the empty gap between the VHF and UHF bands (S20-S38), it cannot be used in typical cable television networks.
The amplifier is especially useful in situations where the initial signal is low. It can additionally power 24V/55mA preamplifiers.
Technical parameters:
Number of outputs: 2
VHF
Frequency range: 40-400 MHz
Gain: 24 dB +/-2 dB
Gain setting: 16 dB
Noise figure: < 4.5 dB
Return attenuation: >= 10 dB
UHF
Frequency range: 470-862 MHz
Gain: 25 dB +/-2 dB
Gain setting: 12 dB
Noise figure: < 3 dB
Return attenuation: >= 10 dB
Power supply: 230 V +/-10% AC, 50/60Hz
Output voltage: 24 V
Operating temperature: -5 ~ 60 degrees C
Protection class: IP20
