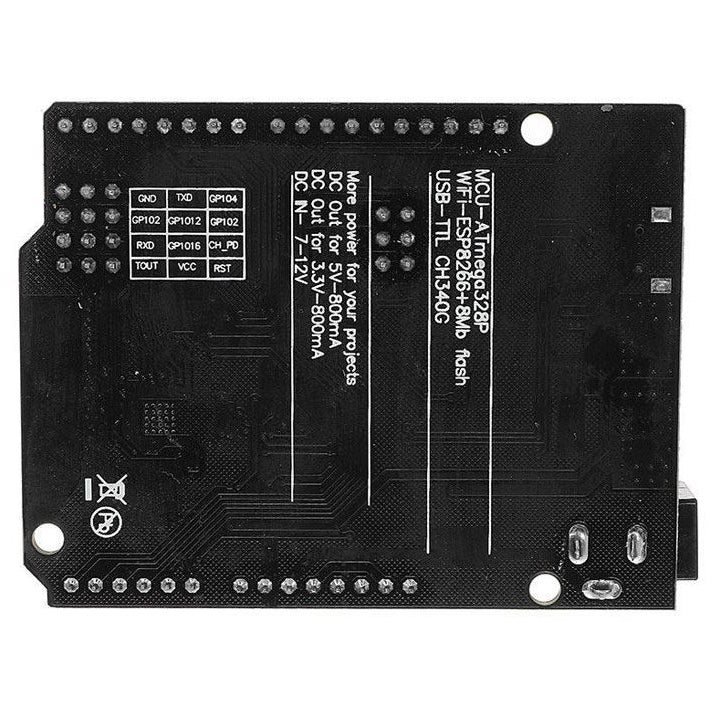

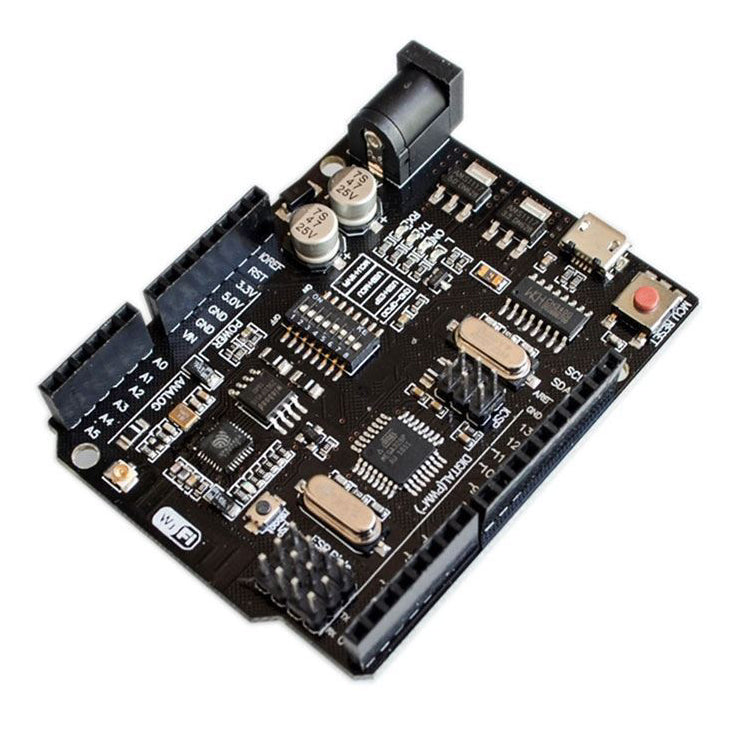

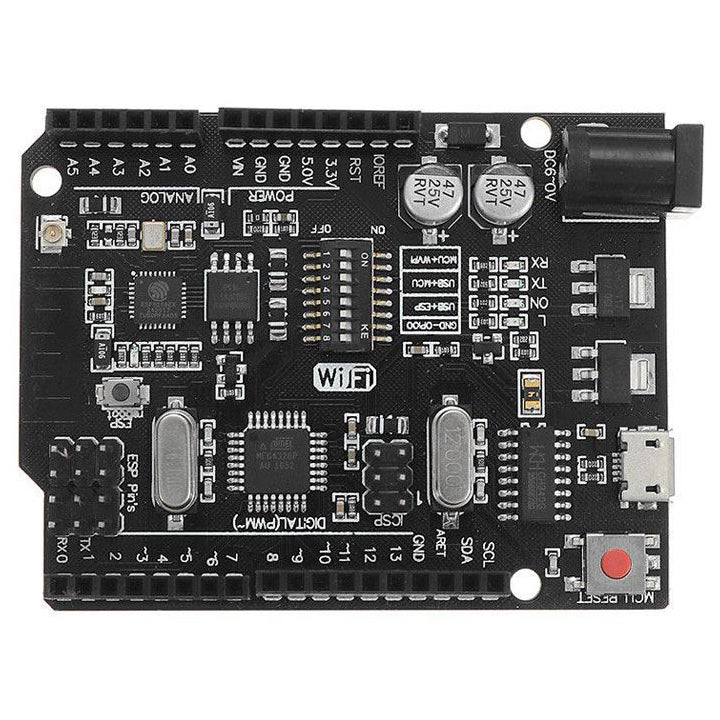

Arduino Uno + WiFi ATmega328P + ESP8266 32kB / 32MB
Vývojová deska Arduino UNO + WiFi - mikrokontrolér ATmega328P + ESP8266, krystal 12MHz/16MHz, flash paměť 32 kB (ATmega) / 32 MB (ESP8266), SRAM 2 kB, EEPROM 1 kB, 14 digitálních I/O pinů, 6 PWM výstupů, 6 analogových vstupů, USB-Serial převodník CH340G, integrovaná WiFi přes ESP8266, oba moduly pracují nezávisle nebo společně, programování přes Arduino IDE, jazyk Wiring
In stock 5 pcs
Expected shipping:
15.06.2026
Regular price
220,00 Kč
181,82 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830076
Arduino Uno + WiFi ATmega328P + ESP8266 32kB / 32MB
Regular price
220,00 Kč
181,82 Kč
excl. VAT
Unit price
/
Unavailable
Product description
It is an ideal board for beginners as well as for advanced. It offers a good compromise between price and performance. In terms of software, arduino is programmed via the integrated development environment (Arduino IDE), which offers a simple and clear programming language WIRING. This board is suitable for both beginners and advanced and thanks to its versatility can be used in almost any project. This is a modified version of the classic ARDUINO UNO R3 board. Full integration of ATmega328 microcontroller and IO ESP8266 with 32 MB flash memory and USB-TTL converter CH340G. All modules can work together or independently.
Technical parameters:
- ATmega328P / ESP8266 microcontroller
- 12MHz / 16MHz crystal
- Flash 32kB / 32Mb
- SRAM 2kB
- EEPROM 1kB
- USB - Serial Converter CH340G
Inputs and outputs:
- digital I / O14 / 5
- PWM 6
- analog inputs 8
- DC Current per pin 40mA
- input voltage 7-12V
- 5V max current 800mA
- 3.3V max current 800mA
- weight 22g
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- ATmega328P / ESP8266 microcontroller
- 12MHz / 16MHz crystal
- Flash 32kB / 32Mb
- SRAM 2kB
- EEPROM 1kB
- USB - Serial Converter CH340G
Inputs and outputs:
- digital I / O14 / 5
- PWM 6
- analog inputs 8
- DC Current per pin 40mA
- input voltage 7-12V
- 5V max current 800mA
- 3.3V max current 800mA
- weight 22g
The product is not a self-functional unit, it requires professional assembly.
