Battery balancer SUNKKO BAL-524 4S-24S 5A for Li-Ion and LiFePO4
New
Bateriový balancér - typ BAL-524, balanční proud 0–5A, 4–24 článků (4S–24S), kompatibilní s Li-Ion a LiFePO4 články nad 20Ah, napěťový efekt 10–20mV, jmenovité napětí 3,2–3,7V/článek, vlastní spotřeba <5mA, podpěťová ochrana <2,7V (Li-Ion) / <2,5V (LiFePO4), toroidní transformátor, spínače MOS, tlačítko START pro 1h intenzivní ekvalizaci, tlačítko ON-OFF pro kontinuální ekvalizaci, rozměry 156 × 106 × 22 mm, hmotnost 230 g, v balení konektor, kabeláž, šroubovák a LED lišta pro 1–24 článků
Will be restocked
Regular price
1.650,00 Kč
1.363,64 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830343
Battery balancer SUNKKO BAL-524 4S-24S 5A for Li-Ion and LiFePO4
Regular price
1.650,00 Kč
1.363,64 Kč
excl. VAT
Unit price
/
Unavailable
Product description

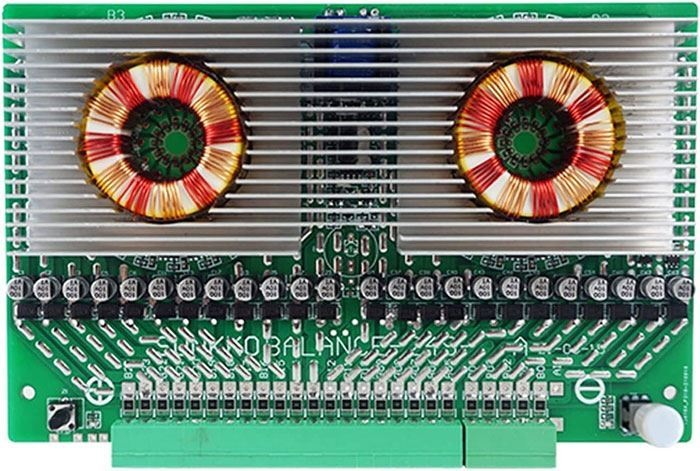

The SUNKKO BAL-524 5A is a high-end battery balancer for Li-Ion or LiFePO4 cells with a capacity of over 20Ah. It is equipped with a toroidal transformer and MOS semiconductors.
Specifications:
- Balancing current 0-5A
- Number of balancing cells: 4-24
- Balancer voltage effect: 10-20mV
- Rated voltage: 3.2-3.7V/cell
- Self-consumption: <5mA
- Undervoltage protection: <2.7V/cell (Li-Ion), <2.5V/cell (LiFePO4)
- START button for intensive equalization for 1 hour (double click, switch in OFF)
- ON-OFF button to turn on continuous equalization
- Dimensions: 156×106×22mm
- Weight: 230g
Package Contents:
- BAL-524 balancer
- Connector and wiring harness
- Screwdriver
- LED indicator strip for 1-24 cells
- Comprehensive manual (in EN only)
Specifications:
- Balancing current 0-5A
- Number of balancing cells: 4-24
- Balancer voltage effect: 10-20mV
- Rated voltage: 3.2-3.7V/cell
- Self-consumption: <5mA
- Undervoltage protection: <2.7V/cell (Li-Ion), <2.5V/cell (LiFePO4)
- START button for intensive equalization for 1 hour (double click, switch in OFF)
- ON-OFF button to turn on continuous equalization
- Dimensions: 156×106×22mm
- Weight: 230g
Package Contents:
- BAL-524 balancer
- Connector and wiring harness
- Screwdriver
- LED indicator strip for 1-24 cells
- Comprehensive manual (in EN only)
