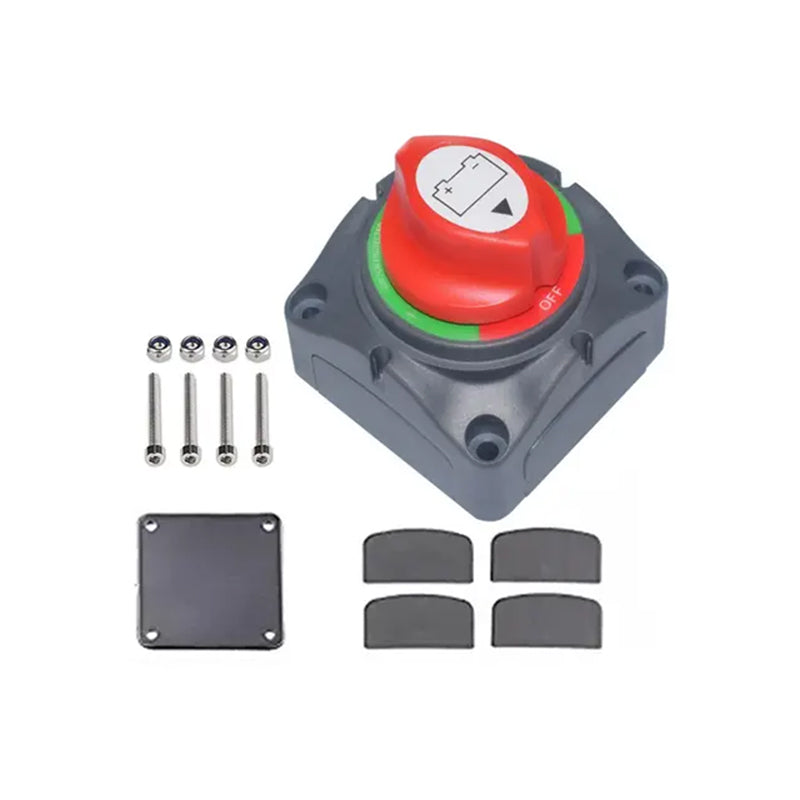

Battery disconnector GETI GF-S02

The four-position battery disconnector in a case made of durable ABS plastic is used for safe switching of DC circuits with a voltage of 12-48V. Four positions allow two batteries to be switched independently or simultaneously. Ceramic insulation allows the disconnector to be used even under load with a current load of 1000A short-term and 200A long-term. Very suitable as a safety disconnector for battery systems in smaller photovoltaic installations, motorhomes, trucks, boats, caravans, etc.

- switching positions: 1 / 1 and 2 / 2 / OFF
- voltage: 12 – 48V DC
- short-term load: 1000A
- long-term load: 200A
- insulation: ceramic
- contacts: 3x 8 mm thread with nut
- contact material: tinned brass
- housing material: self-extinguishing ABS plastic
- dimensions: 69 x 69 x 75 mm
- protection rating: IP20 (for indoor use only)
