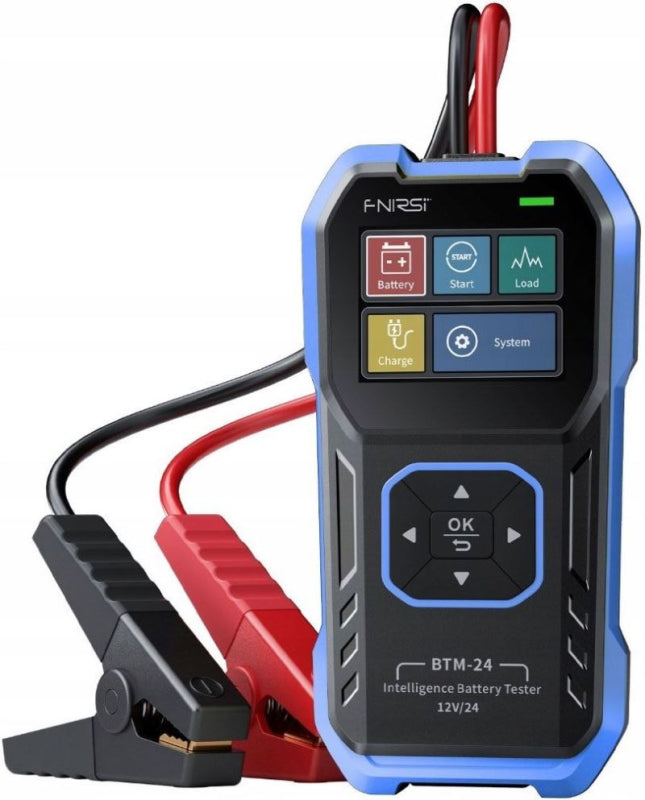

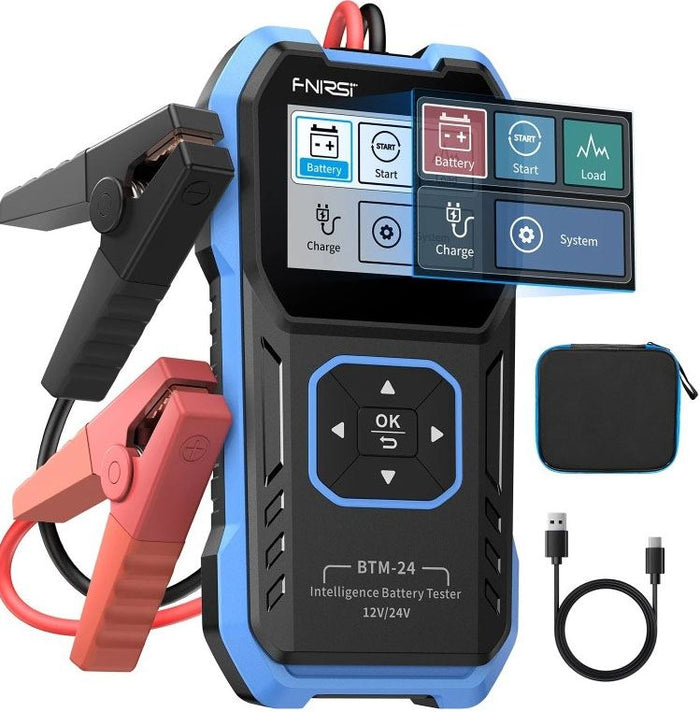

Battery tester FNIRSI BTM-24

The FNIRSI BTM-24 is a portable multifunction car battery tester designed for fast and accurate diagnostics of 12V and 24V batteries. The instrument features intuitive operation and a colour 2.4" TFT display that clearly shows the measured values.

Main functions and measurement options:

Comprehensive battery analysis: measures voltage, internal resistance, state of charge (SOC) and total battery life (SOH).

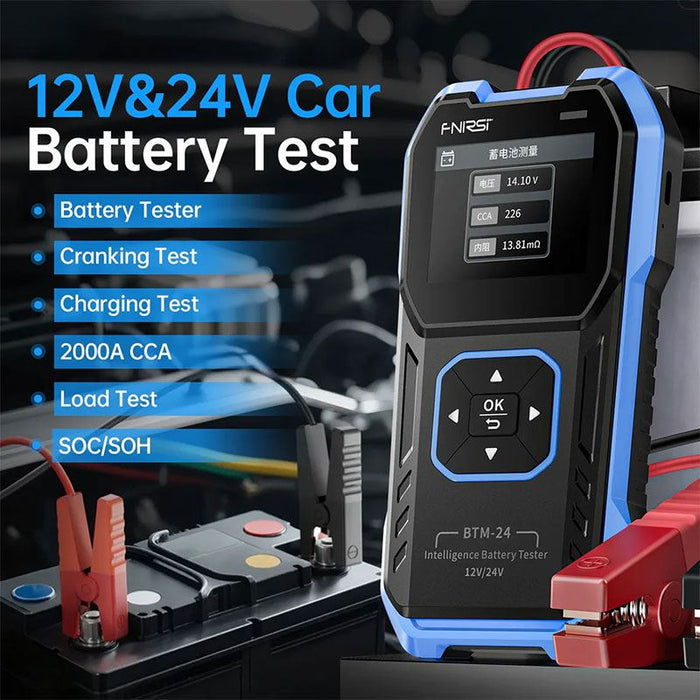

Starting and charging test: Evaluates the vehicle's starting ability (cranking test) and alternator functionality (charging test) under load.
Battery Types: Compatible with conventional lead acid (flooded), AGM (spiral and flat), GEL, EFB and lithium batteries.
Two testing modes: allows for both in-vehicle and stand-alone (benchtop) measurements.
Supports common international standards such as CCA (0-2000 A), IEC, EN, DIN, JIS and GB.

Technical parameters:

Device type: 12 V / 24 V automotive battery tester.
Material: high quality ABS plastic
Display: 2.4" TFT high resolution color display
Supported languages: Chinese, English
Supported batteries: 12 V and 24 V car and electric vehicle batteries
Supported battery types: ASB, FLA, VRLA, LAB, EV LAB
Supported standards: CCA, IEC, EN, DIN, JIS, GB
Test Scope: Start test, load test, charge test, resistance measurement, life test
Battery life evaluation range: Low: 0-60%
Voltage range: 12 V/24 V systems
Maximum starting current (CCA): up to 2000 A
Protection functions: over-polarity and over-voltage protection, bad contact protection
Power supply/connection: terminals with insulation, cable approx. 61 cm
Operating temperature: -20 °C to +60 °C
Display data: Starting voltage, dynamic voltage, state of charge, internal resistance, lifetime
Dimensions: 80.5 × 155.7 × 28.1 mm
Weight: approx. 479 g
