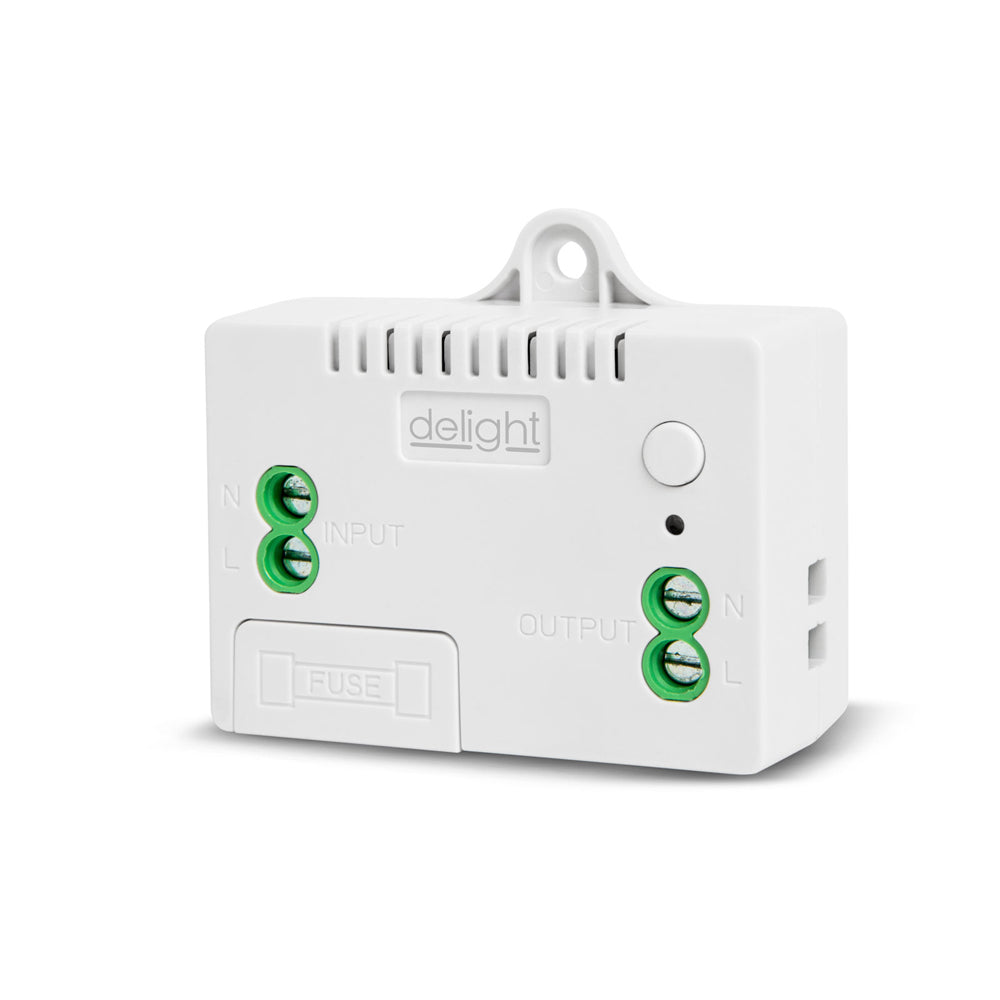

Wireless control unit DELIGHT 55356 Kinetic

The control unit of the latest line of KINETIC wireless switches of the Delight brand, which can be connected to most circuits, thanks to which the appliance is connectable. . To use this product, you must also purchase one of the 55352, 55353 switches from the Delight menu! Unit purchasing allows for a modular setup so everyone can create a network of switches to suit their own needs.

Operation:
Any appliance with a power not exceeding 500 W operating voltage (110 V-230 V AC (50/60 Hz)) can be connected to the control unit. wireless switches KINETIC. The control unit is easy to pair, it is able to control several buttons at once, so it can also be installed as a switch.

Caution: Prior to mounting, make sure that the circuit is de-energized. Make sure you are connected correctly, if you are not sure, always seek the help of a specialist!

Technical parameters:

- Power supply: 110 - 230 V AC (50/60 Hz)
- Max. power: 500 W (min. 5 W)
- Max current strength: 10 A
- Built-in glass fuse: 10 A / 250 V
- Operating temperature: 10 ° C - + 50 ° C
- Operating radio frequency: 433 MHz
- Range: max. 100 m
- Operating type: 86
- Method of communication: FSK
- Frequency transmission: +10 dBm
- Service life: +200000 switching cycles
- Fastening: Screw, dowel, double-sided adhesive tape (included)
- Protection class: IP20
- Dimensions: 60 x 52 x 28 mm
- Color: White
- Weight: 50 g
