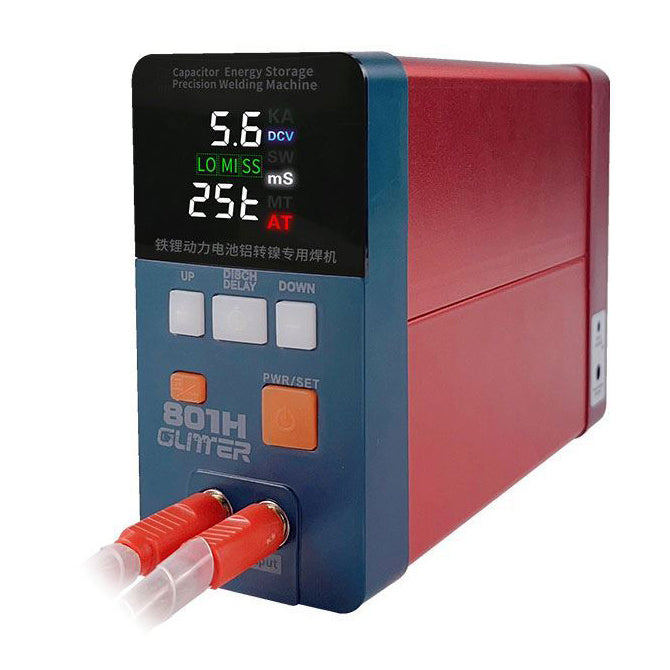

Spot welder of batteries GLITTER 801H

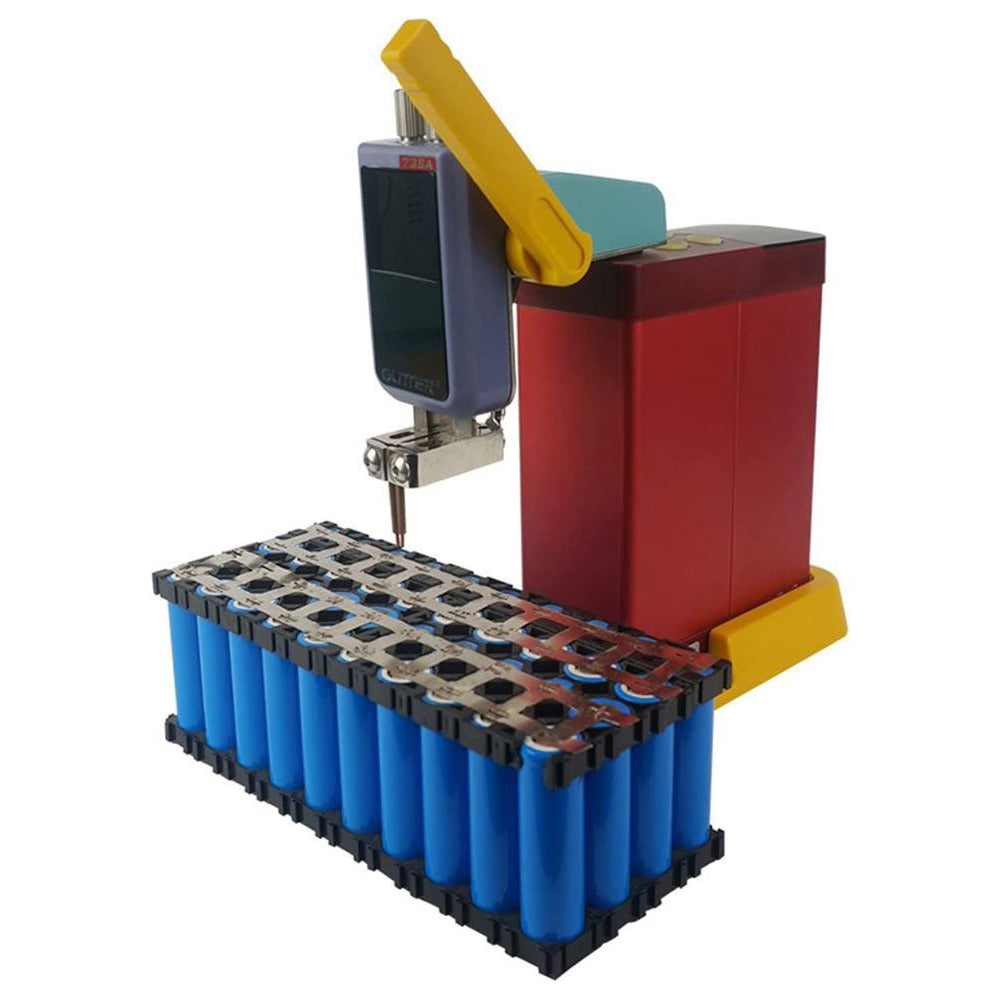

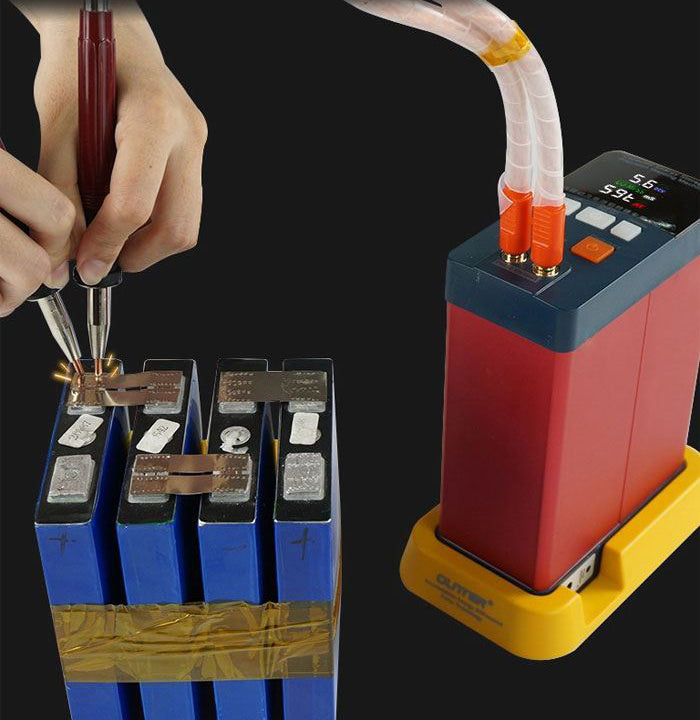

GLITTER 801 is a condenser spot welder for spot welding batteries into battery packs using nickel plates. A welding pen or an integrated arm can be connected to the station. Compared to classic welders with a transformer, it offers lower weight and dimensions and greater pulse energy. The welding machine also enables the welding of nickel strips on an aluminum base.


Technical parameters.

- power supply: 15V/2–3A, 230VAC adapter included
- first charging time: 5–15 min
- output welding voltage: 5.6–6V
- output welding current: 500-3500A
- max. welding power: 19.8 kW
- max. welding energy: 238J
- pulse duration: 0.2–20ms
- welding power setting range: 0–99t
- welding mode: AT/MT
- regeneration time: 100–500ms
- thickness of nickel strips: 0.05–0.45 mm
- size: 120×65×180mm
- weight: 2.5 kg

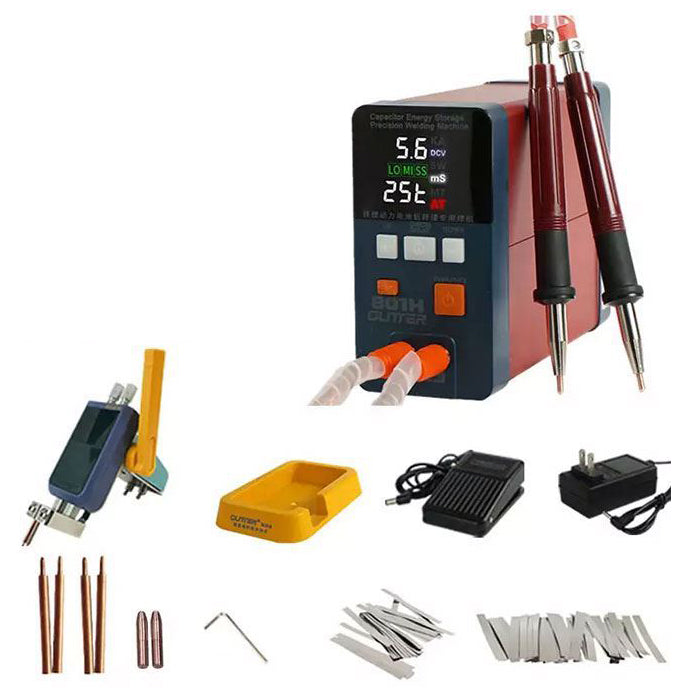

Package contents:
- welding machine GLITTER 801H
- 2x welding pen
- control pedal
- welding arm with spikes
- 4x spare tips
- 20x nickel plates 0.15x8x100mm
- 20x nickel plates 0.15x10x100mm
- Al-Ni joint sample
