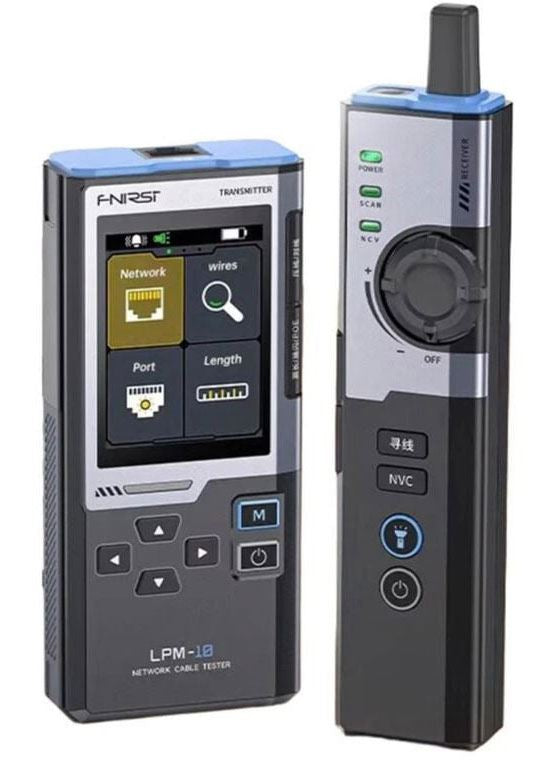

Cable tester FNIRSI LPM10A

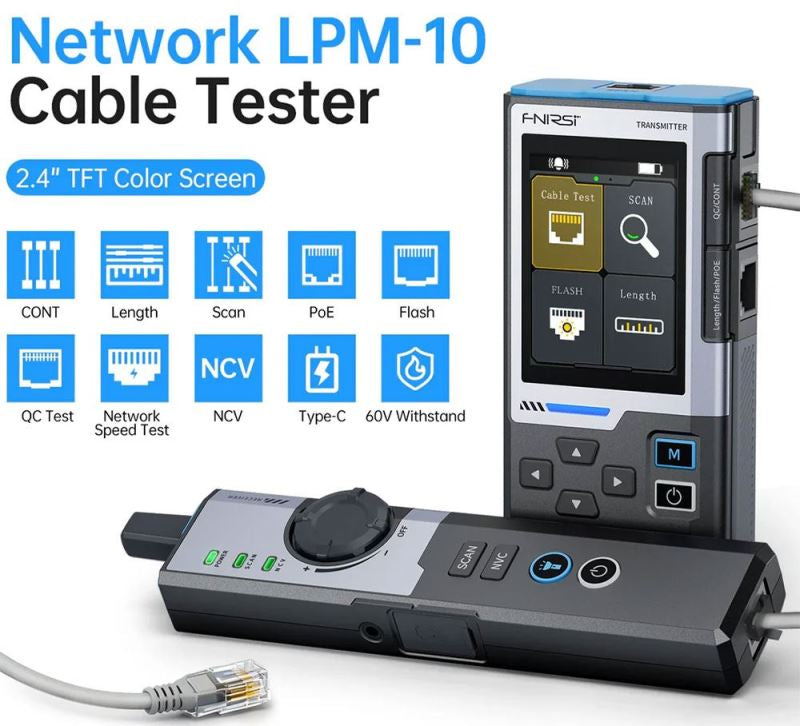

The FNIRSI LPM10A Multifunctional Cable Tester is a multifunctional digital tester and network cable finder for installation, maintenance and troubleshooting of IT infrastructure. The instrument has a 2.4-inch color TFT display and integrates 10 basic functions for working with cabling.


Product parameters:

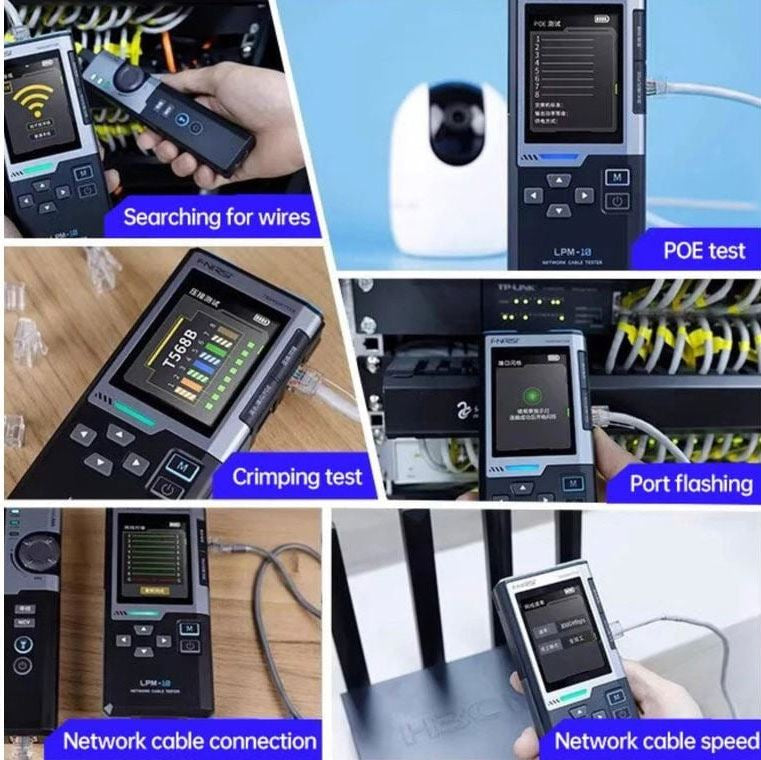

- Cable Tracing.
- Length measurement: measures the length of cables (Cat5, Cat5e, Cat6, Cat6a) with a tolerance of ±1.6 m to ±3.2 m using TDR (Time Domain Reflectometer) technology.
- PoE testing: identifies power mode (end-span/mid-span), protocol standard (802.3af/at) and measures voltage and current in real time.
- Wiremap: Detects crimp errors, short circuits, broken wires or crossed pairs in RJ45 connectors.
- Port Flashing: Helps identify a specific port on a switch or router by flashing the port light.
- Network Speed Test: Can detect the speed of the connected network (10/100/1000 Mbps) and duplex mode.
- NCV (Non-Contact Voltage): non-contact voltage detection function to safely locate live wires.


Specifications:

- 2.4" TFT display.
- backlight: adjustable
- power supply: battery (AA or rechargeable)
- Connection interface: RJ45 (up to 8 cores)
- supported cables: RJ45 / RJ11 / coaxial
- Network speeds: 10M / 100M / 1000M
- Port Flashing: Full Duplex / Half Duplex (self-negotiating and non-self-negotiating mode)
- Cable length measurement: <20m: ±1.6m, 20-2.4m: ±2.4m, >100m: ±3.2m
- POE test: standard and non-standard, automatic power identification
- RJ45 crimp test: up to 8 cores
- NCV detection: no touch voltage indicator
- Other features: integrated LED flashlight, low voltage warning, multi-language support
