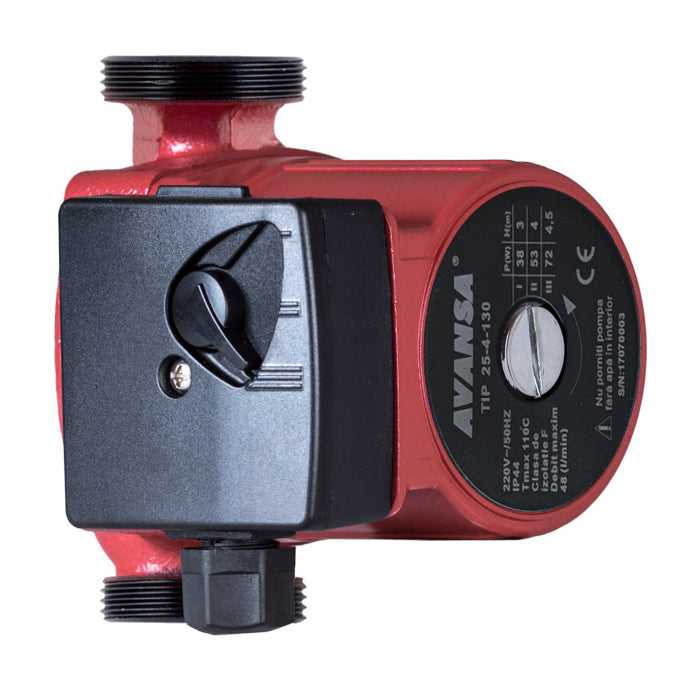

Circulating pump AVANSA 25/4/130

The circulation pump Avansa 25/40 130mm is designed for central heating systems. The pump housing is made of cast iron, cast aluminum. The high quality bipolar motor, asynchronous, does not require overload protection, has three speeds, which is controlled by a special switch mounted on the terminal block, which allows the pump to be adjusted to the characteristics of the device.



Use:
heating of all systems
industrial circulation equipment
cold water and air conditioning systems


Detailed description:
     Maximum working pressure: 10 bar
     Distance between suction and discharge port: 130 mm
     Pumped medium temperature: -10 to +110 ° C
     Protection class: IP44
     Insulation class: FH
     Power input engine: 72/53/38 W
     Discharge (m): 4
     Dimensions hxwxd (cm): 13,5 x 17,5 x 14,5
     Weight (kg): 2.7
     Suction DN (mm): 25
     DN displacement (mm): 25
     Maximum flow (l / min): 48
     Material, pump parts: cast iron / plastic
     Execution (V): 230
     Connection dimensions: 6/4 "
