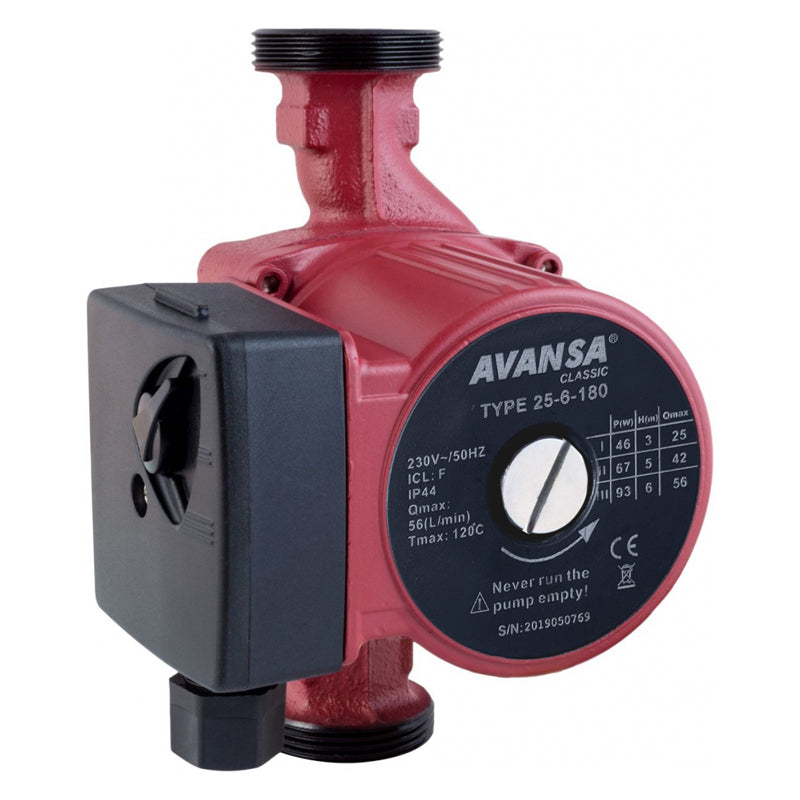

Circulating pump AVANSA 25/6/180

The circulation pump Avansa 25/60 180mm is designed for central heating systems. The pump housing is made of cast iron, cast aluminum. The high quality bipolar motor, asynchronous, does not require overload protection, has three speeds, which is controlled by a special switch mounted on the terminal block, which allows the pump to be adjusted to the characteristics of the device.

Use:

    heating of all systems
    industrial circulation equipment
    cold water and air conditioning systems


Detailed description:

    Maximum working pressure: 10 bar
    Distance between suction and discharge port: 180 mm
    Pumped medium temperature: -10 to +110 ° C
    Protection class: IP44
    Insulation class: FH
    Power input engine: 93/67/46 W
    Displacement (m): 6
    Dimensions hxwxd (cm): 13,5 x 19,5 x 14,5
    Weight (kg): 2.8
    Suction DN (mm): 25
    DN displacement (mm): 25
    Maximum flow (l / min): 55
    Material, pump parts: cast iron / plastic
    Execution (V): 230
    Connection dimensions: 6/4 "
