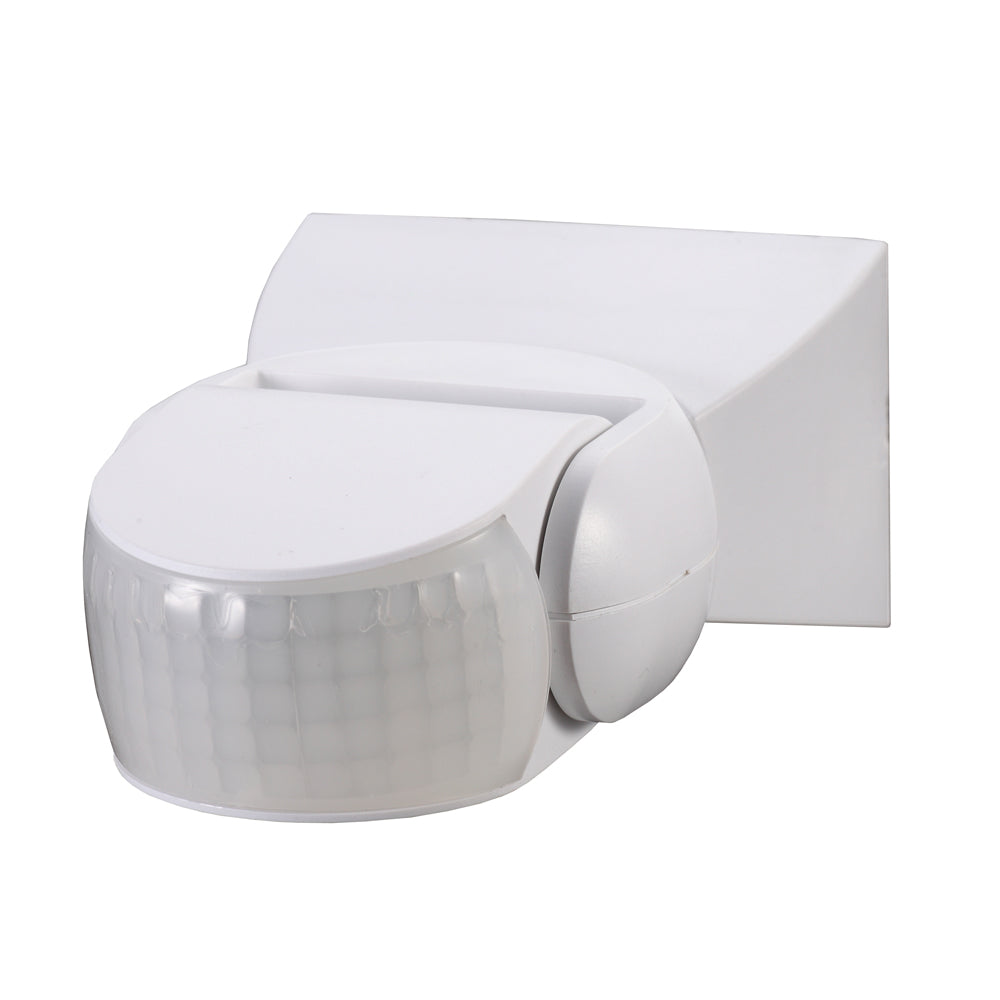

PIR sensor GETI GS1103

This device is a handy, energy-saving sensitive motion detector. It is made with advanced integrated circuit technology and has a wide detection field. It responds immediately to human movement by emitting infrared rays in the detected range. The sensor distinguishes between day and night illumination. Easy to install.


Product parameters:

- detection field: Wide detection range in up and down, left and right.
- day / night resolution automatically
- manual sensitivity adjustment
- permanently built-in time loop - reduces unwanted starting
- adjustable switching time

Technical parameters:

- detection angle: 180 °
- sensor type: PIR
- operating voltage: 220-240V AC / 50 Hz
- rated load: 1200W (incandescent bulb), 300W (energy saving bulb) + LED
- detection range: 12m max (<24 ° C)
- switching time: 10sec ± 3sec (min.), 15min ± 2min (max.)
- ambient lighting: 3-2000LUX (adjustable)
- detection motion speed: 0.6-1.5m/s
- protection class: IP65
- installation height: 1.8m ~ 2.5m
- operating temperature: -20 ~ + 40 ° C
- operating humidity: <93 ° RH
- dimensions: 119,5 x 80 x 51,5 mm
- white color
