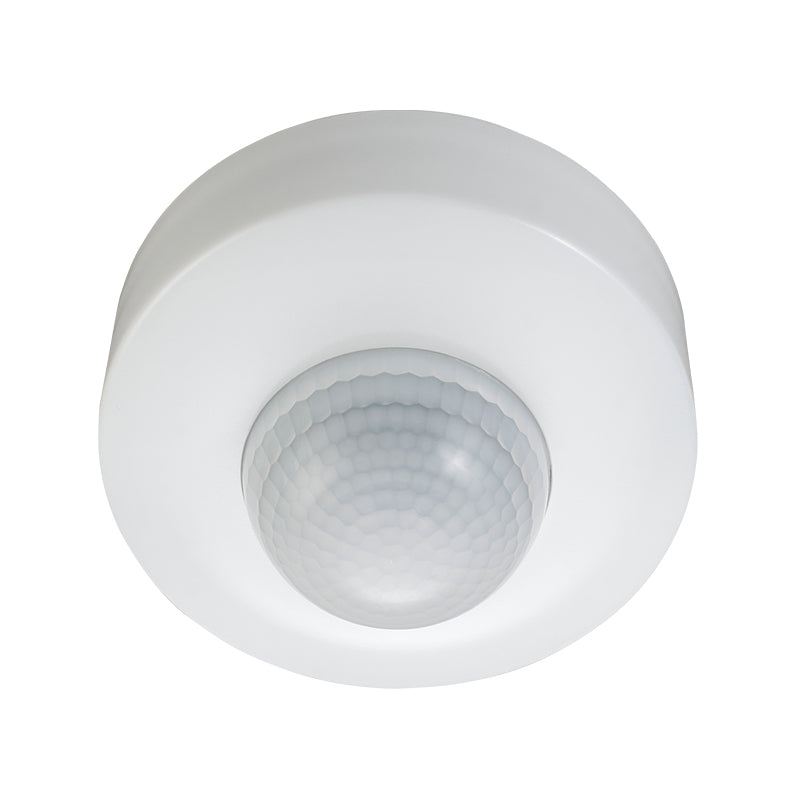

PIR sensor GETI GS1202 (3x sensor)

This device is a handy, energy-saving sensitive motion detector. It is made with advanced integrated circuit technology and has a wide detection field. It responds immediately to human movement by emitting infrared rays in the detected range. The sensor distinguishes between day and night illumination. Easy to install.


Product parameters:

- 3x detectors
- day / night resolution automatically
- manual sensitivity adjustment
- permanently built-in time loop - reduces unwanted starting
- adjustable switching time

Technical parameters:

- detection angle: 360 ° (3x detectors)
- sensor type: PIR
- operating voltage: 220-240V AC / 50 Hz
- rated load: 1200W (incandescent bulb), 300W (energy saving bulb)
- detection range: 12 m max (<24 ° C)
- switching time: 10sec ± 3sec (min.), 7min ± 2min (max.)
- ambient lighting: 3-2000LUX (adjustable)
- detection motion speed: 0.6-1.5m/s
- protection class: IP20
- installation height: 2,2 m ~ 4 m
- operating humidity: <93 ° RH
- dimensions: 88 x 55 mm
- white color
