PIR sensor GETI GS1204

PIR motion sensor module for various installation variants.
Miniature version of the infrared switch, designed for installation in the ceiling, wall, etc. Its features make this sensor
a small technical miracle. It is ideally located near your existing luminaire (simply
connect to the luminaire and it will light up automatically when you enter the detection zone of the infrared switch). Infrared switch
it is equipped with circuits with high sensitivity of motion detection. The device meets hygiene requirements because
no need to touch switches. It also saves electricity by illuminating only where people are moving.

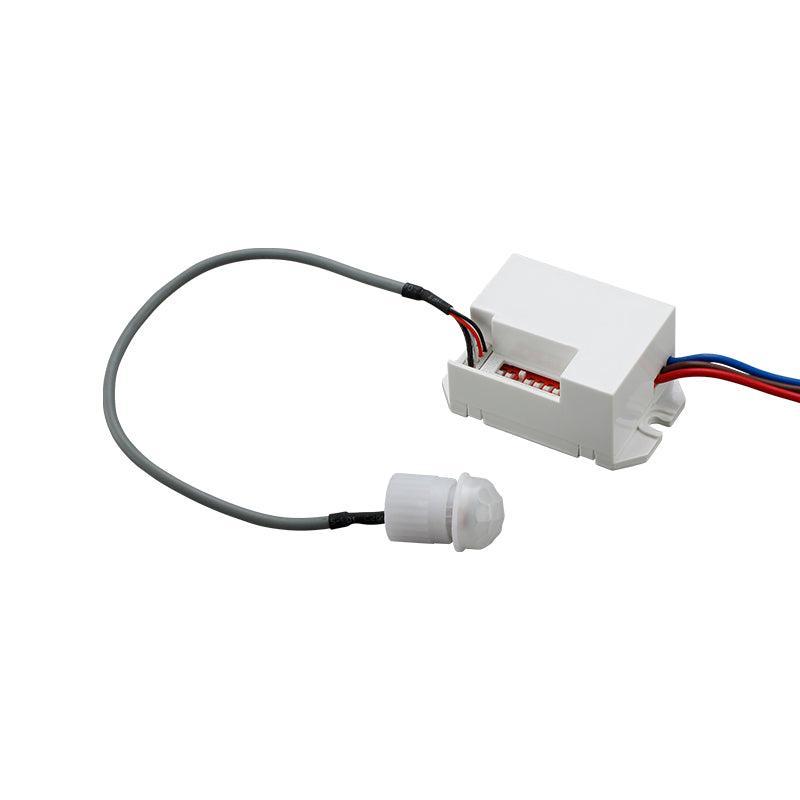

The miniature dimensions of the sensor guarantee inconspicuousness. The sensor is connected to the switching circuit by a removable 20 cm cable, so mounting and extending the sensor is very simple. Adjustable sensitivity.

Product parameters:
- DIP switches for setting the sensor parameters
- sensor function in both dark and daylight
- miniature design
- installation in suspended ceiling or other board
- easy installation also thanks to the removable cable

Technical parameters:
- detection system: detection of movement of persons and moving cars
- rated voltage: 220V ~ 240V / 50Hz
- detection angle: 360 ° in the horizontal plane (circular detection), 120 ° in the vertical plane
- range: up to 6 meters depending on site conditions
- operating temperature: - 10 to + 40 ° C
- switched load max. : 800W (incandescent lamps), 200W (fluorescent lamps, discharge lamps or other inductive load)
- lighting level below which the device switches: <10Lux
- time to switch off after leaving the room: adjustable 5s / 30s / 1min / 3min / 5min / 8min
- protection class: IP20
- white color
