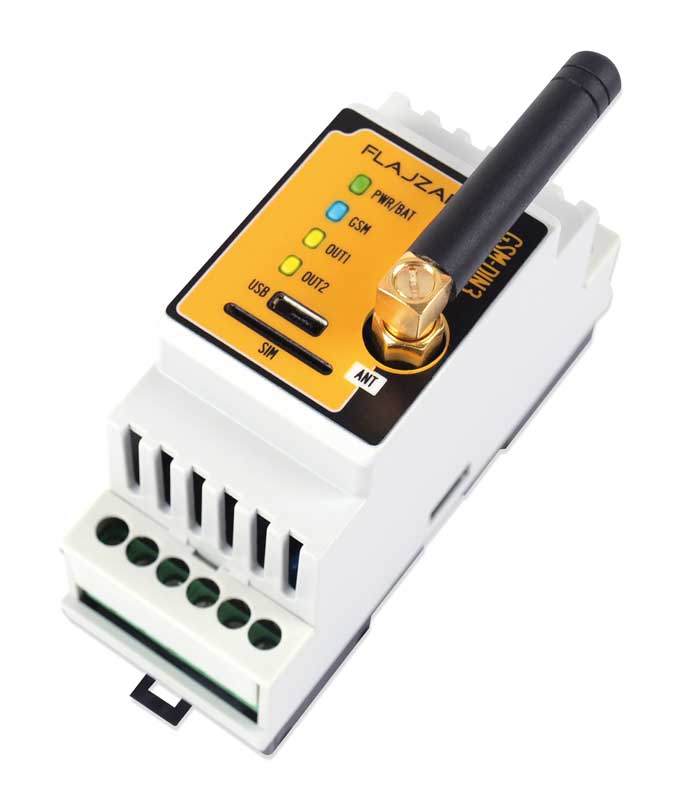

Remote control GSM FLAJZAR GSM-DIN3 on DIN rail

Modern GSM control of the new generation!

Universal GSM device, transmitting information via GSM network. Allows easy control of appliances and status checking using your mobile phone. The communicator contains two power outputs with contact load up to 230V/5A. It is then possible to change their status remotely using SMS messages or just by ringing (free of charge), or use the timer and thermostat function with the connection of an external temperature sensor.

GSM-DIN3 is equipped with two universal inputs, to which you can connect the contact of any sensor. You will then receive an information SMS message or call on your mobile phone in case of activation of these inputs. The inputs can be switched to activation / deactivation input mode for connecting a keyboard, RFID, remote control receiver. The device then serves as a small security control panel with the possibility of activation / deactivation by the access system. Each input can be named separately (text of the sent SMS). If it is necessary to have the inputs permanently active (in guard mode), they can be switched to 24h loop mode.

Internal Li-ion battery ensures the operation of the communicator even in the event of a 230V mains voltage failure
Possibility of monitoring the 230V mains voltage - SMS are sent when it fails and is restored
Possibility of easy configuration using PC software and USB cable, which is included in the delivery
The device is intended for dry environments. For outdoor installation, use a cabinet with appropriate protection
Two universal inputs with the ability to set the reaction to a change, disconnection or connection of the loop
Option to set the exit and arrival time from 10 to 90 seconds
Input for a digital temperature sensor with the ability to automatically control both relays (thermostat)
Information SMS in case the set temperature is exceeded or the temperature drops below the set limit
Two output relays 230V/5A (resistive load), each relay can be assigned a timer of up to 10 hours, for each you can select control commands (e.g. "Turn on the heating", "Turn off the heating" ...)
You can check the device status at any time using a status SMS message

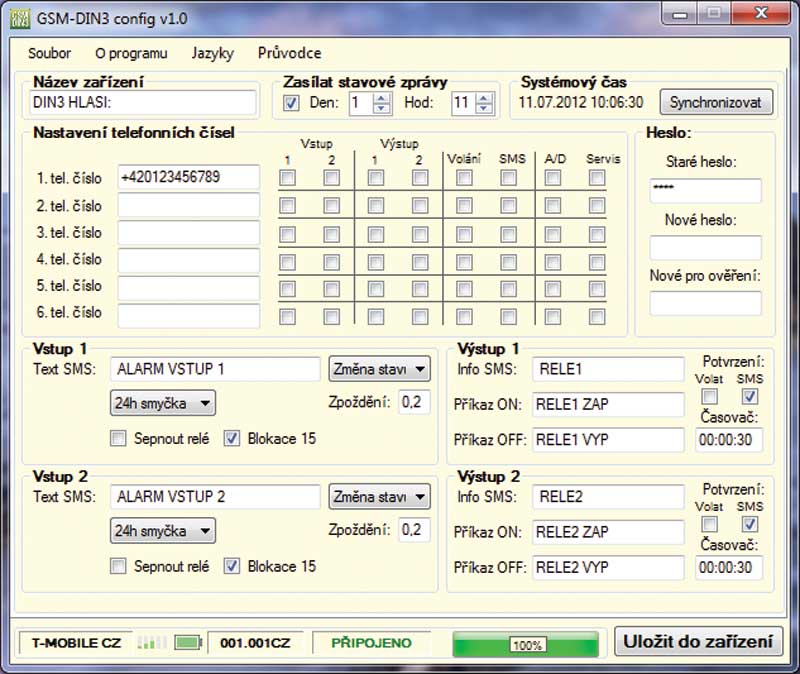

GSM-DIN3 can be configured quickly and easily using a clear and intuitive PC program. The program allows you to easily make all settings, save them and load them to/from the configuration file.
During installation, you will also appreciate the function of online GSM signal strength detection.

Technical parameters:

Dimensions (h x w x d): 90 x 36 x 58mm
GSM/GPRS Quad Band 850/ 900/ 1800/ 1900 MHz
Power supply: 230V AC
The communicator is backed up by an internal LI-ion battery 3.7V/550mAh
Current consumption - networked, idle state: approx. 10mA
Both relays closed: 100mA, when charging the battery: 300 mA
Max. current consumption (GSM module transmits): peak approx. 330mA
Working temperature: -20°C to +50°C
2 logic inputs, separated by optocouplers, active level GND
Inputs are designed for connecting potential-free contacts!
1 input for digital temperature sensor with measurement range from -20°C to 125°C
2 power relays 230V AC, contact current up to 5A (resistive load)
