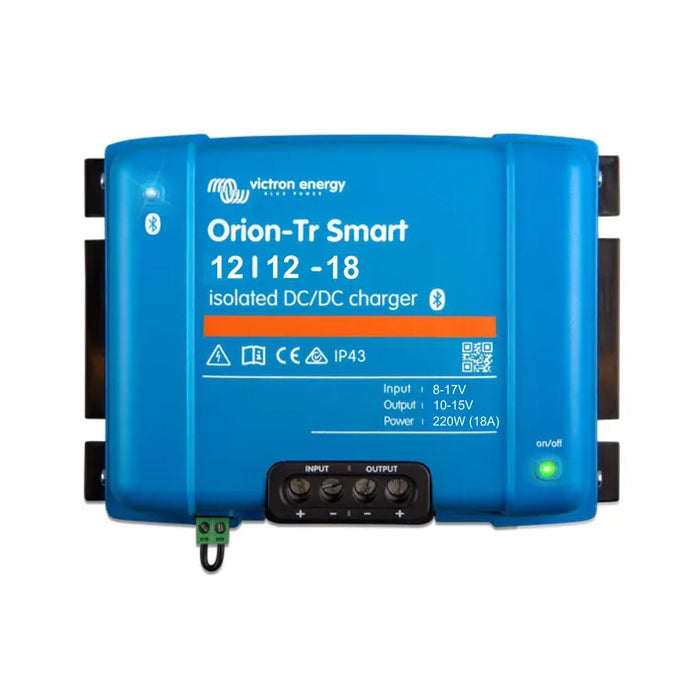

DC-DC charger Orion-Tr Smart 12/12-18A (220W) isolated

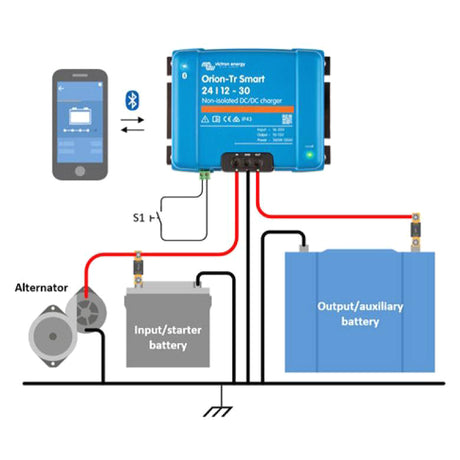

The Victron Energy Orion-Tr Smart DC-DC charger is a professional DC-DC adaptive three-stage charger with built-in Bluetooth functionality. It is intended for use in dual battery systems in vehicles or boats where a (smart) alternator and starter battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and controlled remotely with a remote on/off switch. The charger is also equipped with a motor detection mechanism.
Orion Tr-Smart chargers are available in 12V or 24V versions and are suitable for both lead-acid batteries and lithium batteries. Models up to 400 W are available. In addition, you can connect an unlimited number of units in parallel to increase the output power.
It is suitable for use at high ambient temperatures, up to 55 °C, and at full rated output power up to 40 °C.

With Bluetooth Smart connectivity:
- any smartphone, tablet or other device can be used to monitor, change settings and update the charger when new software features are available.

Fully programmable:
- battery charging algorithm (configurable) or constant output.
- smart alternator compatibility: engine running detection mechanism.

Adaptive three-stage charging algorithm: fast - absorption - floating:
- for lead-acid batteries, it is important that during mild discharges the absorption time is short, thus avoiding overcharging the battery. After a deep discharge, the absorption time increases automatically to ensure the battery is fully charged.
- the absorption time for lithium batteries is constant, 2 hours according to the default setting.
- or a constant output voltage can be selected.

Remote on/off: A remote on/off switch or relay contact can be connected to the two-pole connector, or the H (right) terminal of the two-pole connector can be switched to the positive battery terminal or the L terminal
(left) of the two-pole connector can be switched to the minus pole of the battery (or, for example, to the chassis of the vehicle).

All models are equipped with short-circuit protection and can be connected in parallel to increase the output current:
- the number of units that can be connected in parallel is not limited.
- high temperature protection
- output current will decrease at high ambient temperature.

Protection IP43 when installed with screw terminals facing downwards.

Screw terminals:
- installation does not require special tools.
- input fuse (not replaceable)


Technical parameters:
- input voltage 12 V
- output voltage 12 V
- output current 18 A
- type: isolated
