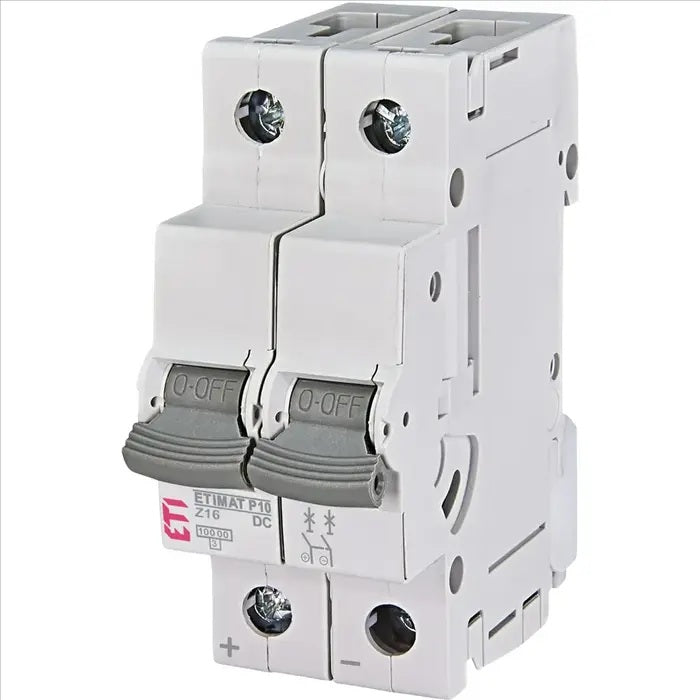

DC circuit breaker 16A two-pole ETIMAT
New
Dvoupólový DC jistič - jmenovitý proud 16A, napětí 440V DC, zkratová odolnost 10kA, vypínací charakteristika Z, jmenovité impulsní výdržné napětí 6kV, svorky 1–25 mm2, jmenovitá frekvence 1–25Hz, funkce MCB, norma IEC 60898-2, ochrana kabelů proti přetížení a zkratu, nutno dodržet polaritu při instalaci, montáž na DIN lištu
In stock 2 pcs
Expected shipping:
15.06.2026
Regular price
921,00 Kč
761,16 Kč
excl. VAT
Unit price
/
Unavailable
ETI | SKU:
04291249
DC circuit breaker 16A two-pole ETIMAT
Regular price
921,00 Kč
761,16 Kč
excl. VAT
Unit price
/
Unavailable
Product description
ETIMAT P10-DC 2p Z16 is used to protect cables against overload and short circuit.
Important note - when installing, it is important to always observe the polarity of the device.
Technical parameters:
Class name: circuit breaker
Rated current (A): 16
Breaking characteristic: Z
Number of poles: 2
Short circuit resistance (kA): 10
Voltage type: DC
Un (V): 440
Rated frequency (Hz): 1...25
Rated impulse withstand voltage (kV): 6
Input terminals (mm2): 1...25
Standards: 60898-2
Function: MCB
Important note - when installing, it is important to always observe the polarity of the device.
Technical parameters:
Class name: circuit breaker
Rated current (A): 16
Breaking characteristic: Z
Number of poles: 2
Short circuit resistance (kA): 10
Voltage type: DC
Un (V): 440
Rated frequency (Hz): 1...25
Rated impulse withstand voltage (kV): 6
Input terminals (mm2): 1...25
Standards: 60898-2
Function: MCB
