DC circuit breaker 6A two-pole ETIMAT
New
Dvoupólový DC jistič - jmenovitý proud 6A, napětí 220V/440V DC, zkratová odolnost 6kA, vypínací charakteristika C, svorky 1–25 mm2, utahovací moment max. 2,5 Nm, krytí IP20, montáž v libovolné poloze, hmotnost 240 g, normy IEC 60898 / EN 60898 / DIN VDE 0641, ochrana kabelů proti přetížení a zkratu, nutno dodržet polaritu při instalaci
Will be restocked
Expected shipping:
20.03.2026
at our place
Regular price
440,00 Kč
363,64 Kč
excl. VAT
Unit price
/
Unavailable
ETI | SKU:
04291024

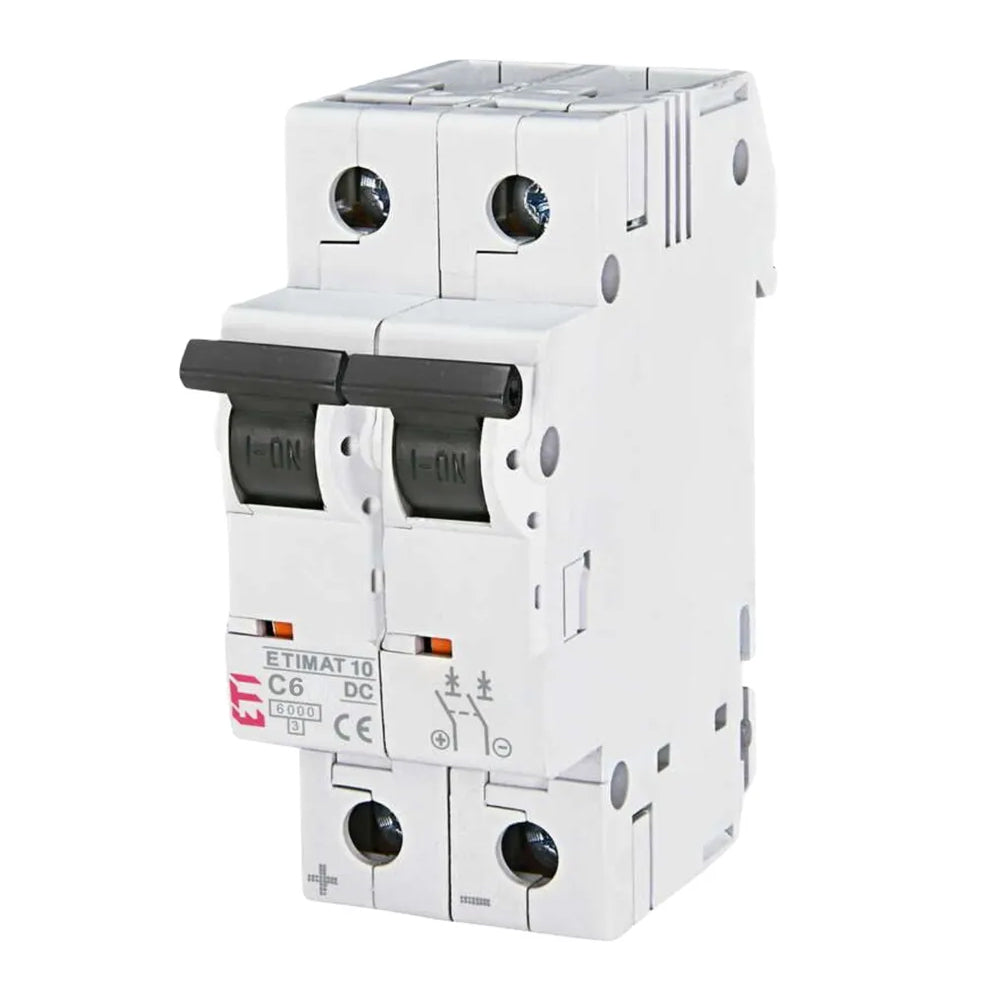

DC circuit breaker 6A two-pole ETIMAT
Regular price
440,00 Kč
363,64 Kč
excl. VAT
Unit price
/
Unavailable
Product description
DC 2-pole circuit breaker with rated current 6A, short-circuit resistance 6kA. It is used to protect cables against overload and short circuit.
Important notice - during installation, it is important to always observe the polarity of the device.
Technical parameters:
- nominal working voltage DC: 220 V/ 440 V d.c.
- short-circuit resistance: 6 kA
- switching characteristic: C
- rated current: 6 A
- number of poles: 2
- terminals: 1-25 mm2, max. 2.5Nm
- degree of protection: IP20
- mounting position: any
- weight: 240g
- standards: IEC 60898, EN 60898, DIN VDE 0641
- manufacturer: ETI Elektroelement

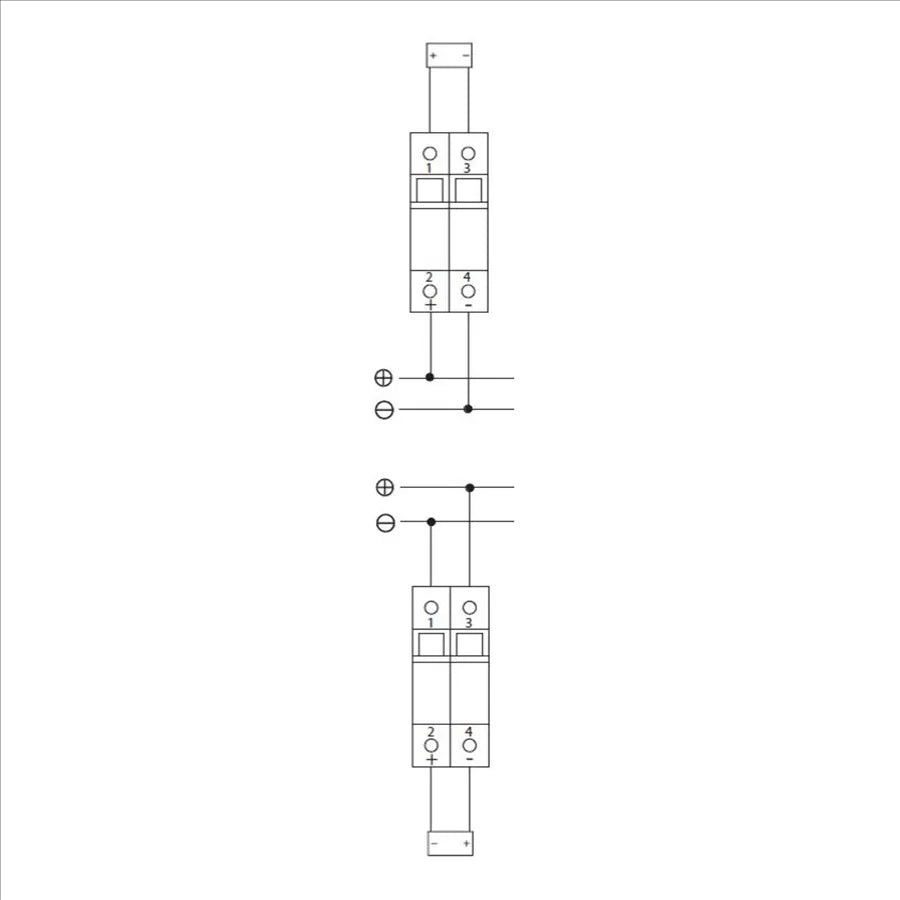

Important notice - during installation, it is important to always observe the polarity of the device.
Technical parameters:
- nominal working voltage DC: 220 V/ 440 V d.c.
- short-circuit resistance: 6 kA
- switching characteristic: C
- rated current: 6 A
- number of poles: 2
- terminals: 1-25 mm2, max. 2.5Nm
- degree of protection: IP20
- mounting position: any
- weight: 240g
- standards: IEC 60898, EN 60898, DIN VDE 0641
- manufacturer: ETI Elektroelement
