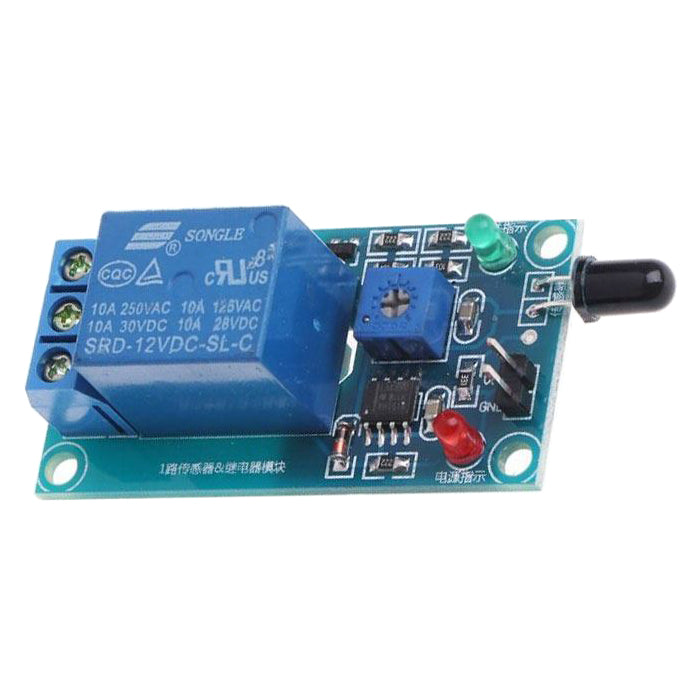

Flame detector, FC-13 module with relay output
Detektor plamene s releovým výstupem - napájení 12V DC, příkon 150mA, detekce infračerveného záření vlnové délky 760 až 1100 nm, úhel detekce 60°, nastavitelná citlivost trimrem, výstup přepínací kontakt relé 250VAC/10A, indikace pohotovostního a aktivního stavu LED, rozměry 50 × 26 × 19 mm, vyžaduje odbornou montáž
Last piece
Expected shipping:
15.06.2026
Regular price
42,00 Kč
34,71 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830132
Flame detector, FC-13 module with relay output
Regular price
42,00 Kč
34,71 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The flame detector module detects the presence of fire. It works on the principle of detecting infrared radiation, which emits fire. Detection angle 60 °, threshold sensitivity adjustable by trimmer. Output to relay changeover contact.
Technical parameters:
- power supply: 12V DC
- consumption: 150mA
- wavelength detection: 760 - 1100nm
- detection angle: 60 °
- indication of standby and active state in case of alarm
- output: relay, changeover contact 250VAC / 10A
- dimensions: 50 × 26 × 19mm
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- power supply: 12V DC
- consumption: 150mA
- wavelength detection: 760 - 1100nm
- detection angle: 60 °
- indication of standby and active state in case of alarm
- output: relay, changeover contact 250VAC / 10A
- dimensions: 50 × 26 × 19mm
The product is not a self-functional unit, it requires professional assembly.
