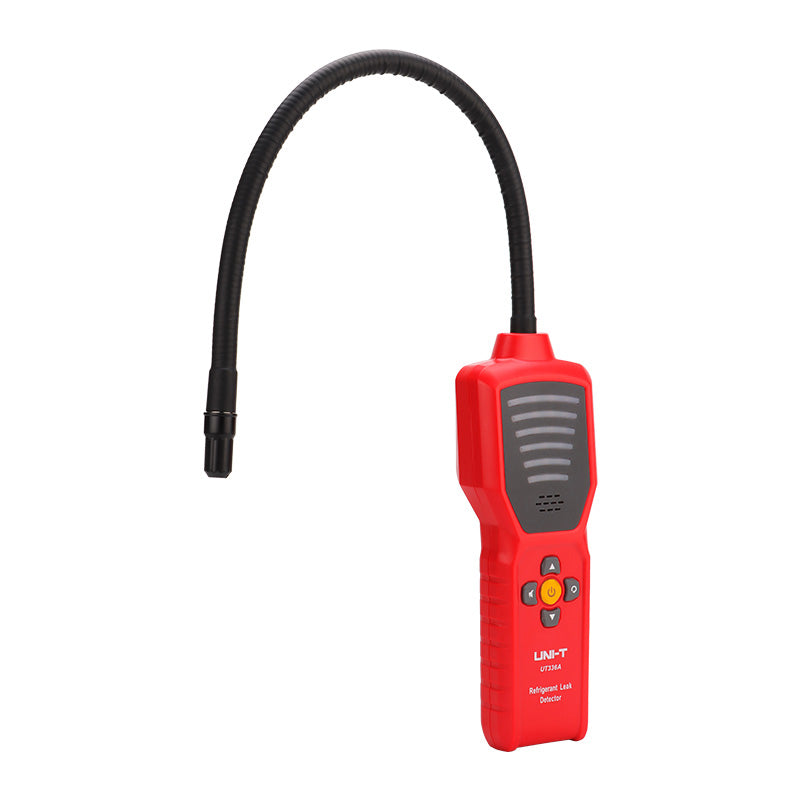

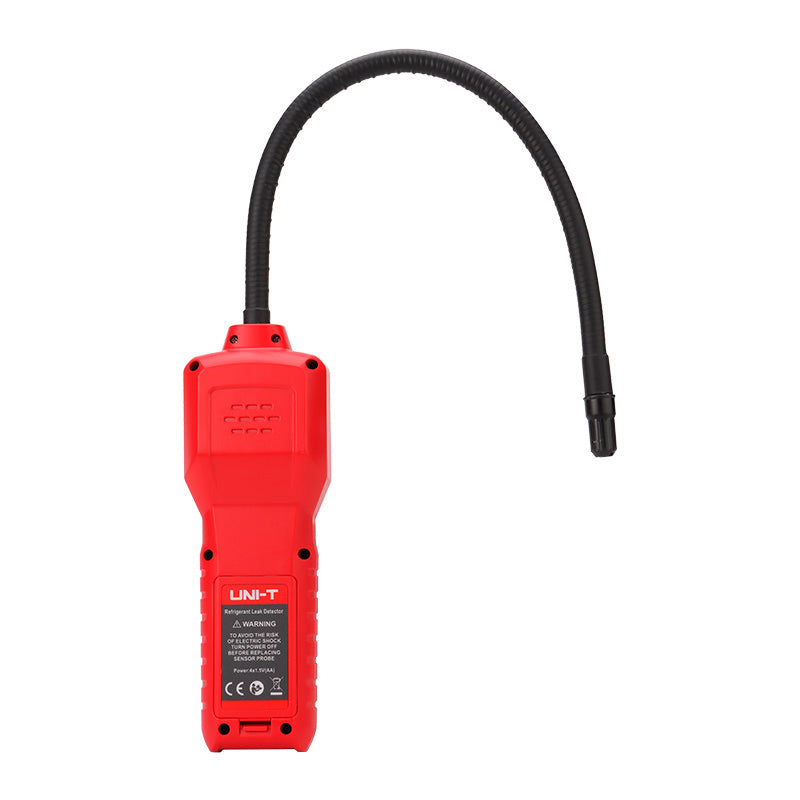

Refrigerant Leak Detector UNI-T UT336A

This product comes with a 3-year warranty.

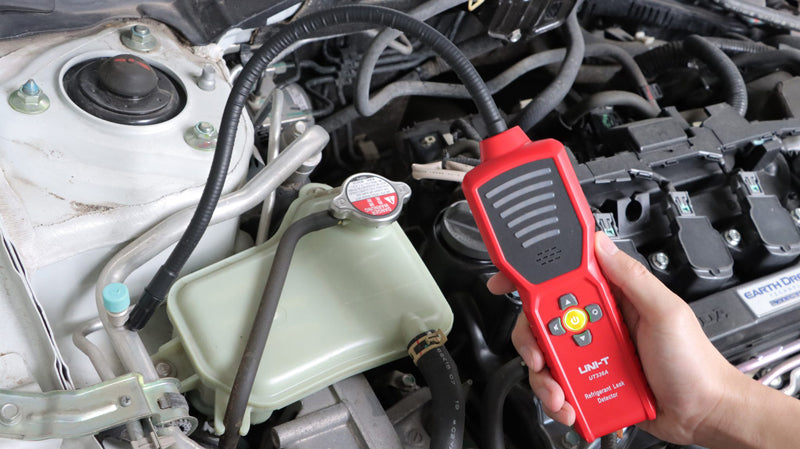

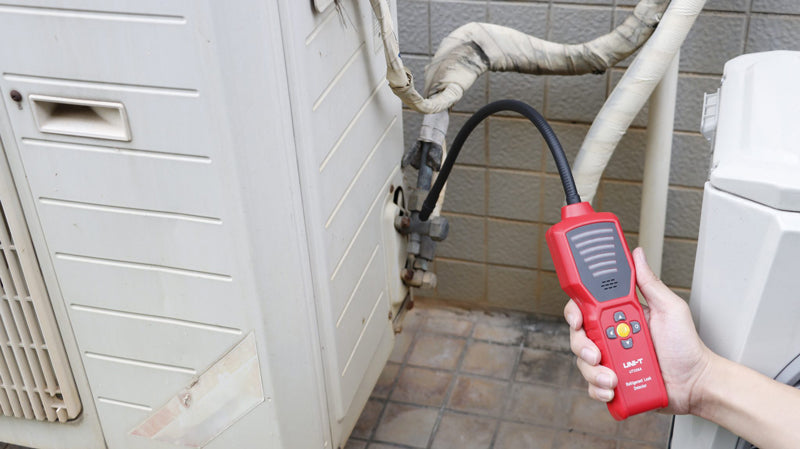

The UNI-T UT336A detector is an electronic refrigerant leak detector with negative corona, characterized by fast response, high reliability and easy operation. It is widely used in air conditioner maintenance, automobile maintenance, refrigeration unit detection, refrigerator maintenance, etc.


Product parameters:

- high sensitivity and the ability to detect small leaks
- easy operation
- sensitivity setting in six levels, suitable for multiple scenarios with different leakage concentration

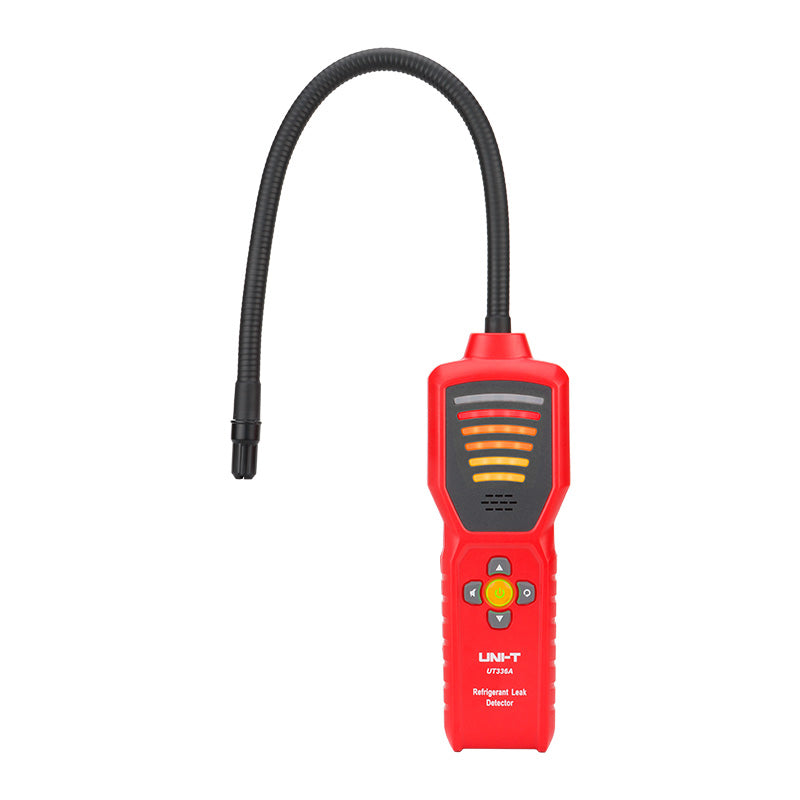

- sound and visual signaling in six levels, with intuitive LED indication in yellow, orange and red
- automatic reset (current state is set to zero)
- three main types of halogenated refrigerants: CFC, HCFC, HFC


Technical parameters:

- maximum sensitivity 3g/a
- heating time 3s
- sensor: negative Corona Sensor
- sensitivity setting: 6 levels (green light)
- alarm light: 6 levels (yellow/orange/red light)
- battery status indicator
- reset
- muting the sound
- battery life: 20 hours
- automatic shutdown

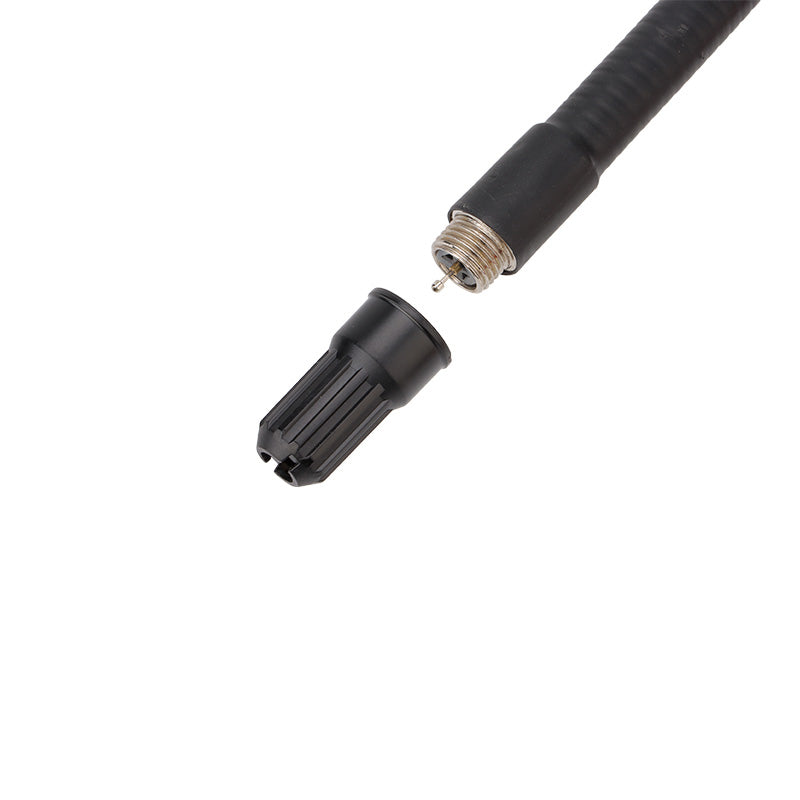

- probe lifetime: approx. 50 hours under normal detection conditions
- operating temperature and humidity: 0 °C to 50 °C <95%RH (non-condensing)
- power supply: alkaline battery 4 x AA (R06) (included in the product)
- product size: 190 x 65 x 43 mm (probe rod not included)
- net product weight: 312 g (without battery)
- standard quantity in a carton of 10 pcs
