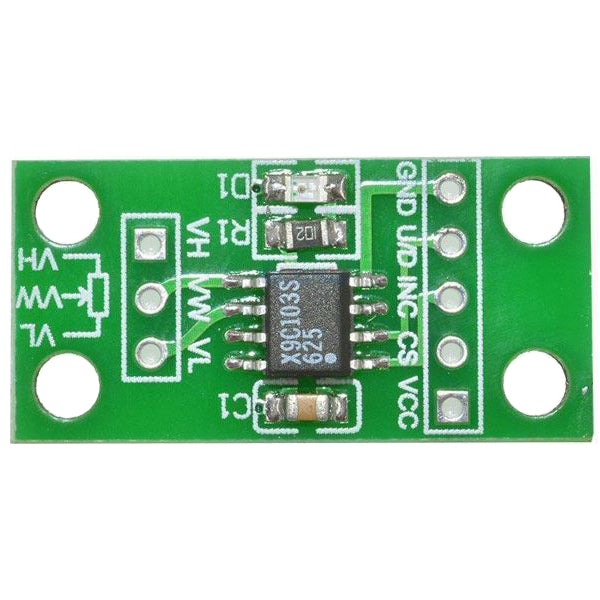

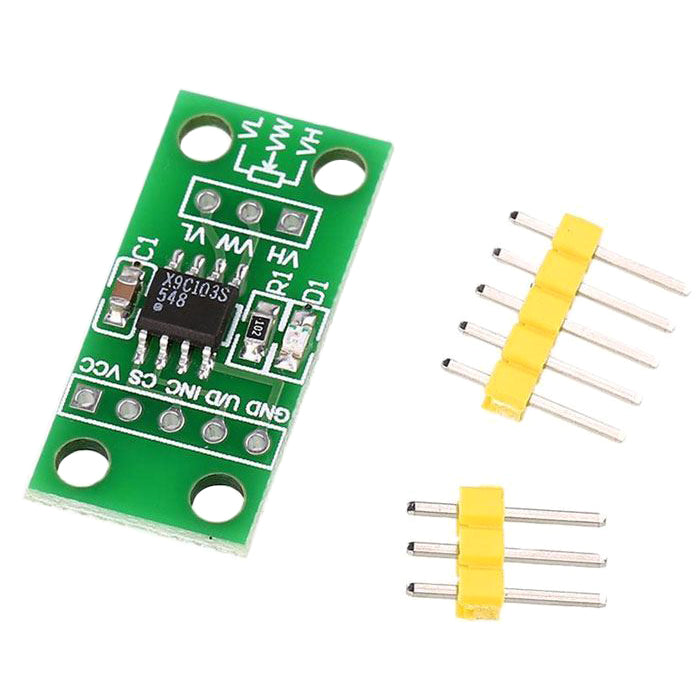

Digital potentiometer 10kohm, module with X9C103S
Wholesale price
Digitální potenciometr - IO X9C103S, odpor 10k?, provozní napětí 5V, 100 nastavitelných poloh, maximální aktivní proud 3mA, stand-by proud 0,5mA, napětí na potenciometru -5 až +5V, rozhraní U/D, INC, CS pro řízení mikrokontrolérem, kompatibilní s Arduino (propojení 5 vodiči), určen pro odbornou montáž
In stock 5 pcs
Expected shipping:
30.07.2026
Regular price
69,00 Kč
57,02 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830082
Digital potentiometer 10kohm, module with X9C103S
Regular price
69,00 Kč
57,02 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Digital potentiometer for microcontrollers.
Technical parameters:
- IC X9C103S
- resistance: 10 kohm
- operating voltage: 5V
- maximum active current: 3 mA
- maximum stand-by current: 0.5 mA
- maximum potentiometer voltage: from -5 to 5 V
- 100 adjustable positions
Connection:
- for successful connection of digital potentiometer and Arduino board we connect a total of 5 wires. Connect GND to ground Arduino, U / D to pin D5, INC to pin D4, CS to pin D3 and VCC to + 5V Arduino.
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- IC X9C103S
- resistance: 10 kohm
- operating voltage: 5V
- maximum active current: 3 mA
- maximum stand-by current: 0.5 mA
- maximum potentiometer voltage: from -5 to 5 V
- 100 adjustable positions
Connection:
- for successful connection of digital potentiometer and Arduino board we connect a total of 5 wires. Connect GND to ground Arduino, U / D to pin D5, INC to pin D4, CS to pin D3 and VCC to + 5V Arduino.
The product is not a self-functional unit, it requires professional assembly.
