Digital thermostat W3230, -55 to 120°C, 230VAC power supply
Digitální termostat do panelu - napájení 230V AC, rozsah –55 až +120°C, krok 0,2°C, přesnost 0,2°C, nastavitelná hystereze 0,1–30 %, kalibrace ±10°C, obnovovací frekvence 0,5 s, relé 250VAC/7A nebo 14VDC/15A (odporová) / 3A (indukční), režim topení i chlazení, čidlo NTC 10k? 0,5% vodotěsné s kabelem 100 cm, rozměry 78 × 42 × 25 mm, montážní otvor 40 × 72 mm
Will be restocked
Expected shipping:
17.06.2026
at our place
Regular price
123,00 Kč
101,65 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
08840392
Digital thermostat W3230, -55 to 120°C, 230VAC power supply
Regular price
123,00 Kč
101,65 Kč
excl. VAT
Unit price
/
Unavailable
Product description

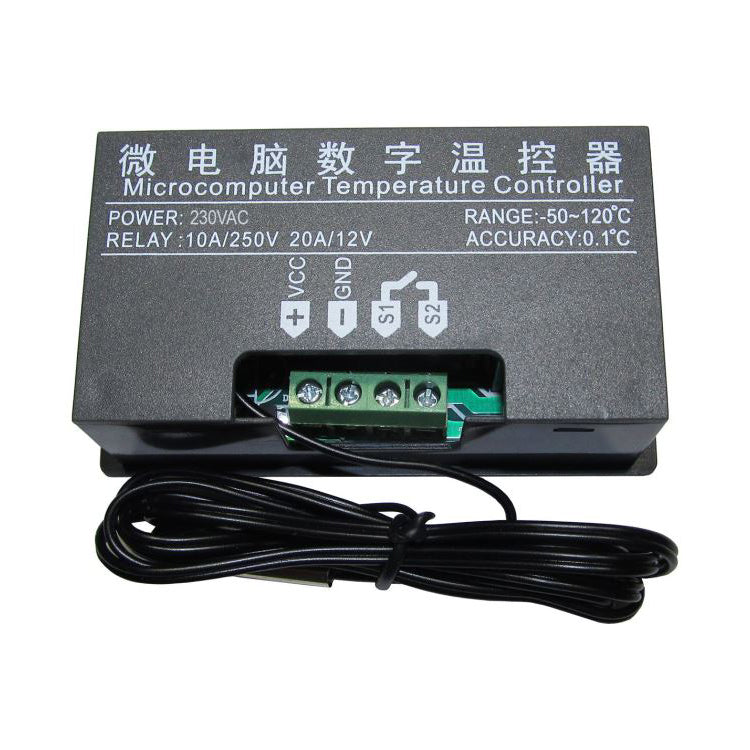

Digital thermostat W3230, -55 to 120°C, 230VAC power supply. A simple thermostat that displays the set and current temperature. The compact case for the panel contains buttons near the display. 1m cable with probe.
Technical parameters:
- temperature measurement range: –55°C to 120°C
- measurement step: 0.2°C
- accuracy: 0.2°C
- adjustable hysteresis: 0.1% ~ 30%
- temperature calibration: –10° to +10°
- refresh rate: 0.5s
- supply voltage: 230 V AC

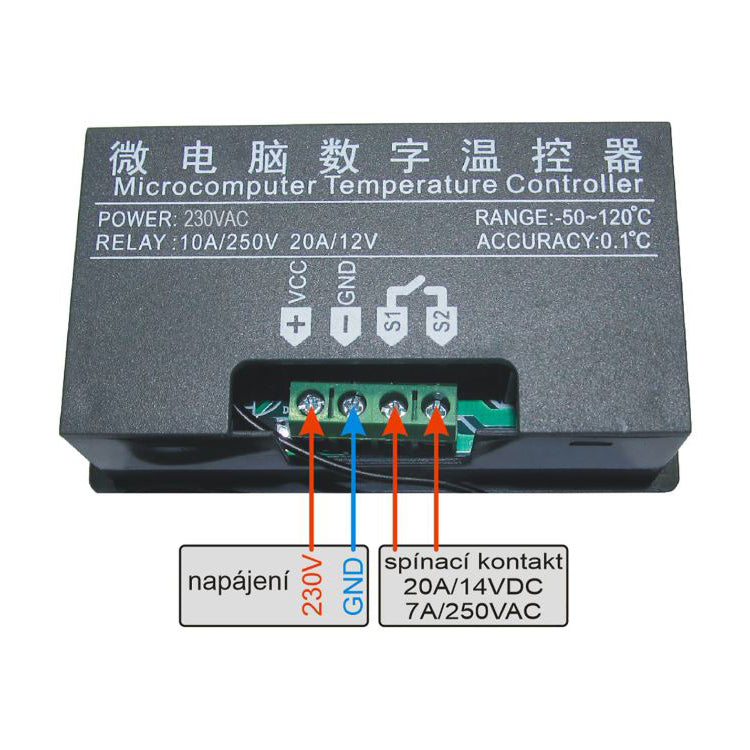

- relay switching contact: 14 V DC / 15 A - resistive load, 3 A - inductive load, 7 A / 250 V AC
- measuring element: NTC (10K 0.5%), length 100cm, waterproof thermistor case
- the thermostat can be operated in both cooling and heating mode
- dimensions: 78×42×25mm, required hole in the panel: 40×72mm
Instructions for use:

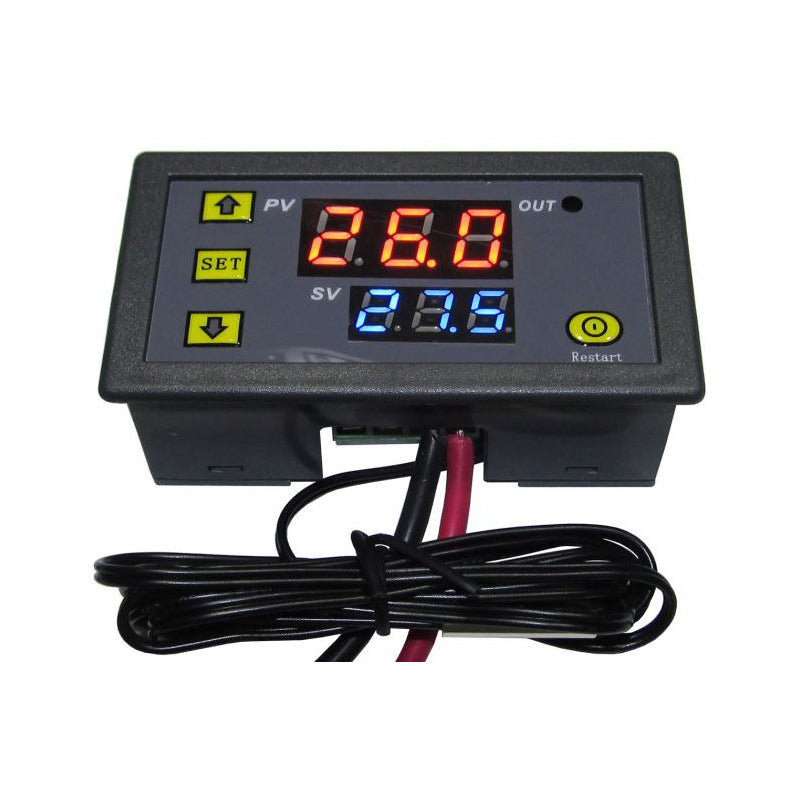

A short press of the RESTART button turns the thermostat on, a long press turns it off. By briefly pressing the SET button after the display flashes, you can set the desired temperature with the up and down arrows. By long pressing the SET button and then using the arrows, other functions of the thermostat can be set:
P0: heating mode (H) or cooling mode ©
P1: hysteresis setting 0.1 to 30 °C
P2: setting the upper maximum temperature limit
P3: setting the lower maximum temperature limit
P4: temperature correction compared to temperature sensor -10 to 10°C
P5: time delay 0 to 10 minutes
P6: Signaling when the maximum temperature has been reached -50 to 120°C (factory disabled)
P7: Keypad lock
P8: Factory reset
- the product is not an independently functional unit, it requires professional assembly.
