LCD1602A display with keyboard, 16x2 characters, blue backlight
Recommended
LCD displej s klávesnicí pro Arduino - 16 × 2 znaků, modré podsvícení, bílá písmena, řadič HD44780, 6 tlačítek (Select, Left, Right, Up, Down, Reset), napájení 5VDC, rozměry modulu 80 × 59 mm, informační plocha 64,5 × 16 mm, průmyslový standard, kompatibilní s Arduino shield rozhraním
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830063
LCD1602A display with keyboard, 16x2 characters, blue backlight
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
Product description

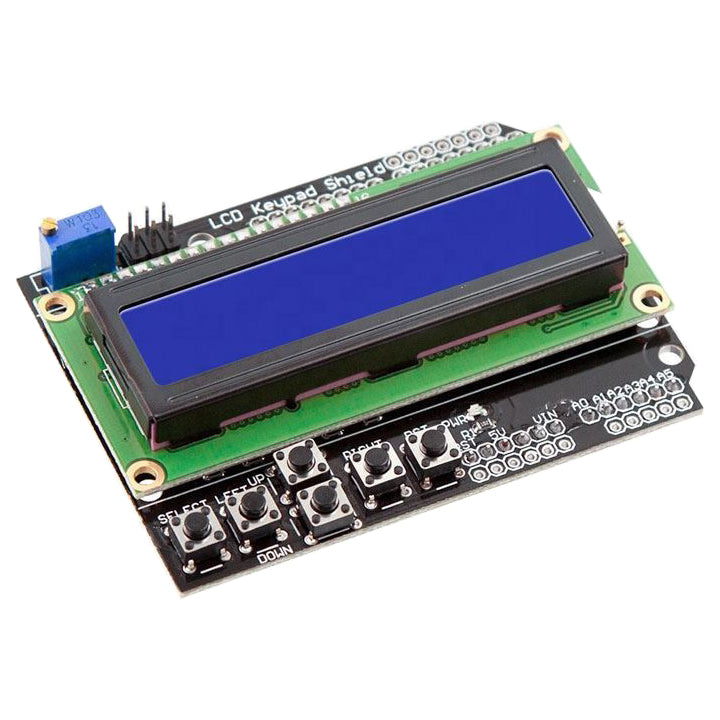

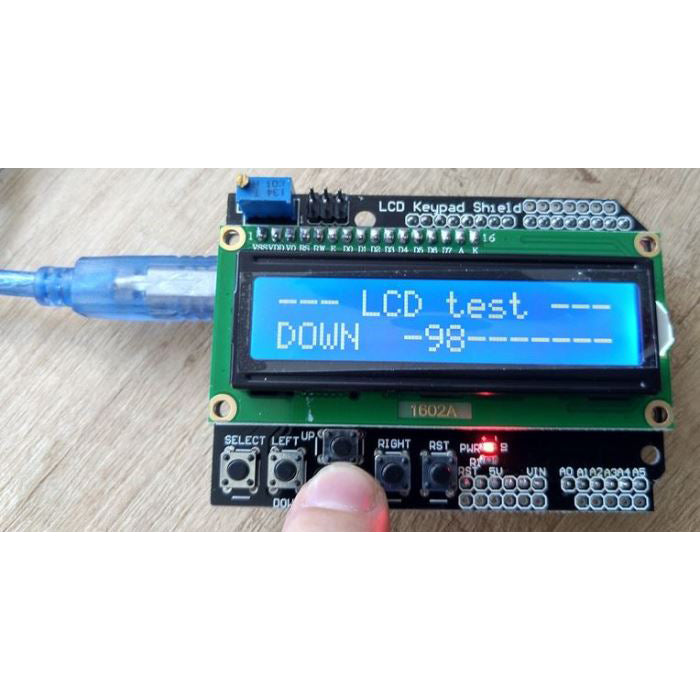

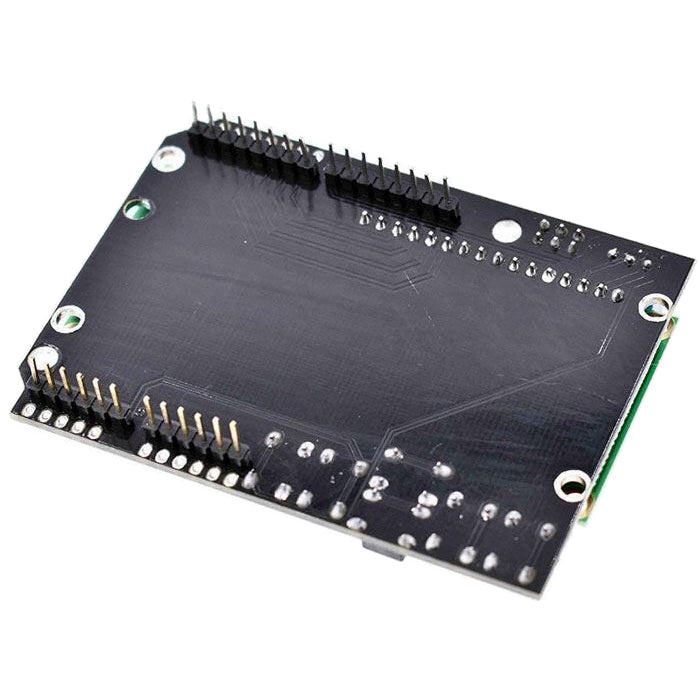

Arduino shield with 6 buttons. 16 × 2 display, blue backlight, white letters. HD44780 controller.
Technical parameters:

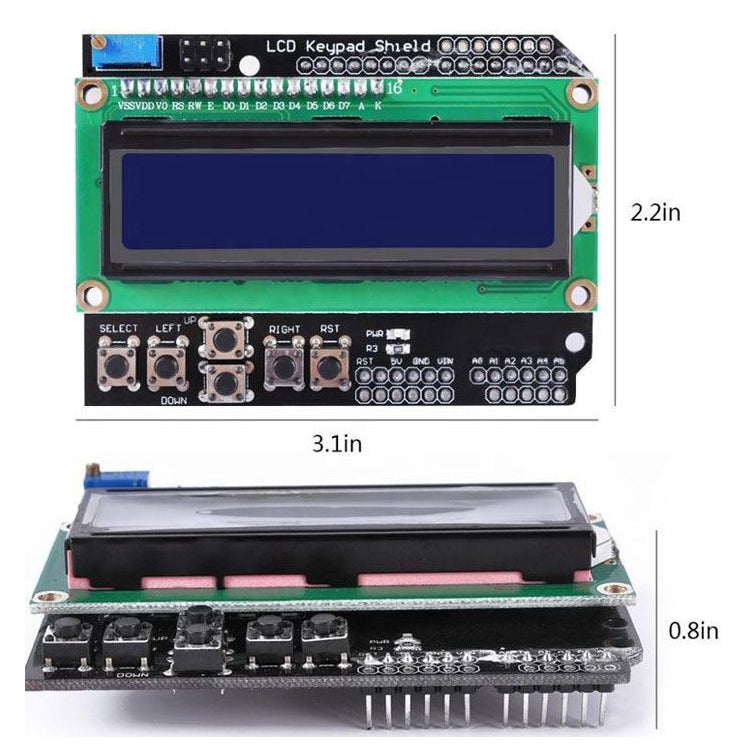

- module dimensions: 80 mm x 59mm
- the size of the information area itself: 64.5 × 16mm
- LCD display with blue backlight
- Select, Left, Right, Up, Down, Reset buttons
- industry standard HD44780
- power supply: 5VDC
- 2 lines, 16 characters
- backlight: A, K is at 5V, the stabilizer is on the PCB display
Technical parameters:
- module dimensions: 80 mm x 59mm
- the size of the information area itself: 64.5 × 16mm
- LCD display with blue backlight
- Select, Left, Right, Up, Down, Reset buttons
- industry standard HD44780
- power supply: 5VDC
- 2 lines, 16 characters
- backlight: A, K is at 5V, the stabilizer is on the PCB display
