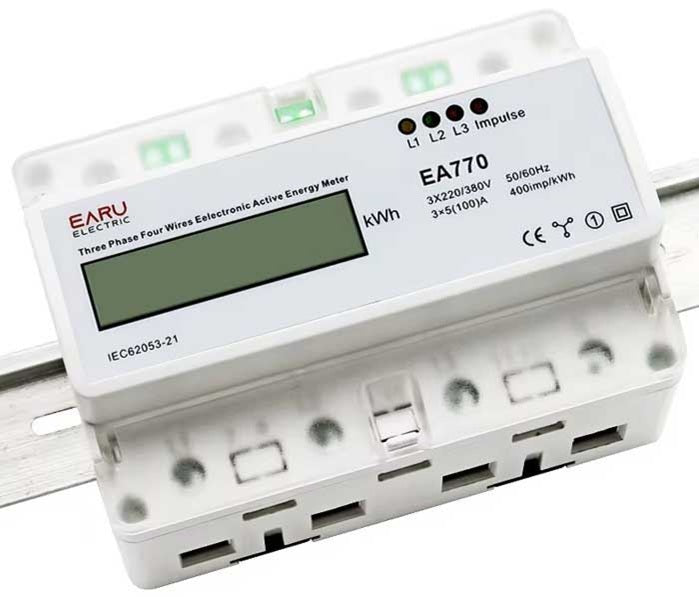

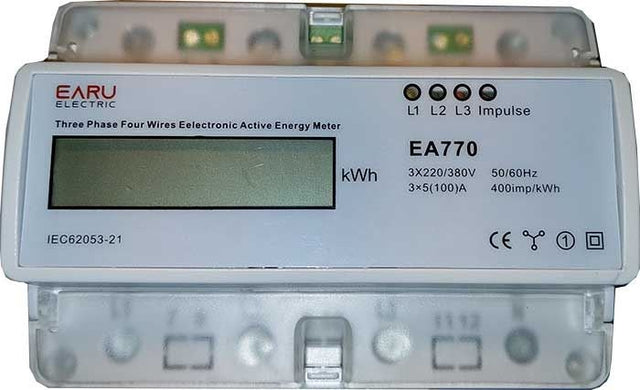

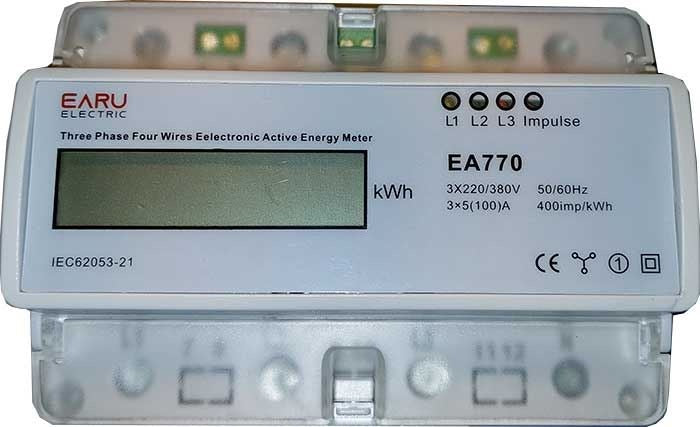

3F DIN rail meter EA770
New
Třífázový elektroměr na DIN lištu - napětí 3 × 230/400V, referenční proud 3 × 5A, max. proud 100A, třída přesnosti 1.0, frekvence 50–60Hz, rozsah měření 0–99999,9kWh, impulzní konstanta 400 imp/kWh, podsvícený LCD displej, pulsní výstup, vlastní spotřeba 2W, provozní teplota -30 až +65°C, šířka 125 mm, normy IEC62052-11 a IEC62053-21
Will be restocked
Expected shipping:
18.06.2026
at our place
Regular price
599,00 Kč
495,04 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
07750290
3F DIN rail meter EA770
Regular price
599,00 Kč
495,04 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Meter for continuous measurement of active power consumption from a three-phase power source. It measures consumption and overflows in the same ratio, registering overflows as consumption.
Technical parameters:
Voltage: 3x 230/400V
Reference current: 3x5A
Maximum current Imax: 100A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Pulse constant: 400imp/kWh
Display: LCD6+2 backlit
Self-consumption: 2W
Starting current: 0.004lb
Operating Temperature: -30°C - 65°C
Width: 125mm
Current measurement range: 0.04-100A,
Power measurement range: 0-99999.9kWh
Pulse output
Technical parameters:
Voltage: 3x 230/400V
Reference current: 3x5A
Maximum current Imax: 100A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Pulse constant: 400imp/kWh
Display: LCD6+2 backlit
Self-consumption: 2W
Starting current: 0.004lb
Operating Temperature: -30°C - 65°C
Width: 125mm
Current measurement range: 0.04-100A,
Power measurement range: 0-99999.9kWh
Pulse output
