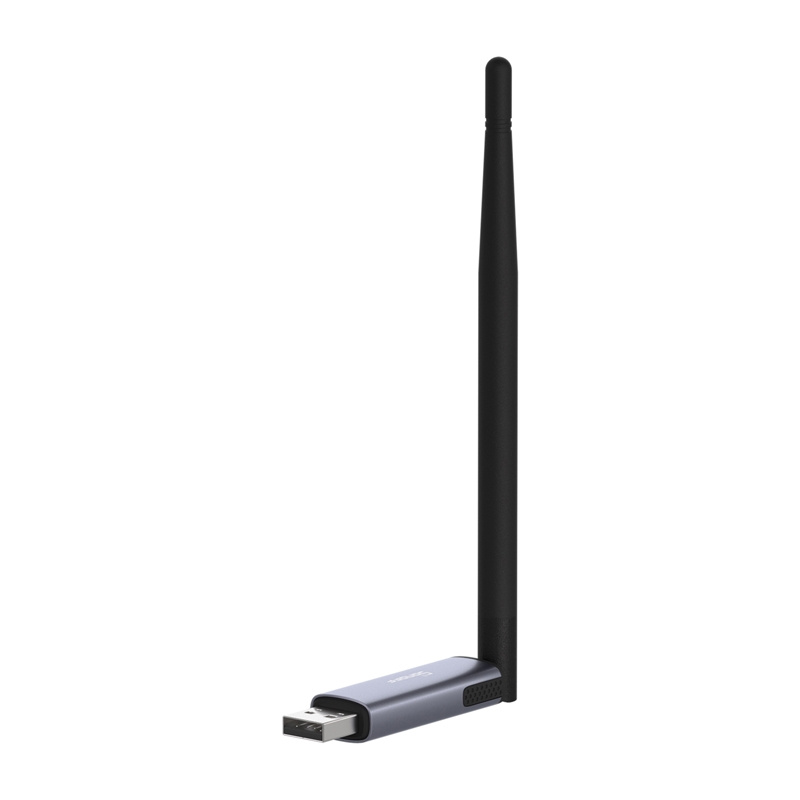

Gateway SONOFF Dongle Plus MG24 ZigBee
ZigBee/Thread USB gateway - čip EFR32MG24, 1536 KB Flash, 256 KB RAM, odnímatelná anténa se ziskem 4,5dBi, dosah až 200 m v otevřeném prostoru, rozhraní USB, kompatibilní s Home Assistant, Zigbee2MQTT, openHAB a ioBroker, podpora protokolů ZigBee i Thread, vhodná pro rozšíření sítě inteligentní domácnosti
In stock 2 pcs
Expected shipping:
15.06.2026
Regular price
950,00 Kč
785,12 Kč
excl. VAT
Unit price
/
Unavailable
SONOFF | SKU:
06445371
Gateway SONOFF Dongle Plus MG24 ZigBee
Regular price
950,00 Kč
785,12 Kč
excl. VAT
Unit price
/
Unavailable
Product description
SONOFF Dongle Plus MG24 is a universal USB gateway that allows you to integrate ZigBee and Thread devices with popular open source platforms. With it, you can easily expand your smart home system based on Home Assistant, Zigbee2MQTT, openHAB or ioBroker, gaining full control over your home automation and compatibility with multiple ecosystems.
Fast and stable operation
The device is based on a powerful EFR32MG24 chip, which offers 1536 KB of Flash memory and 256 KB of RAM. In practice, this means faster command processing, stable communication and the ability to support multiple connected ZigBee devices.
Range of up to 200 meters
The Dongle Plus MG24 is equipped with a detachable antenna with a maximum gain of 4.5 dBi, which significantly increases the communication range. In open space, the signal can reach up to 200 meters, making it easy to build a large-scale ZigBee network throughout your home or office. The kit also comes with a 1-meter USB extension cable, which allows for better placement of the gateway and reduces interference.
Flexible software

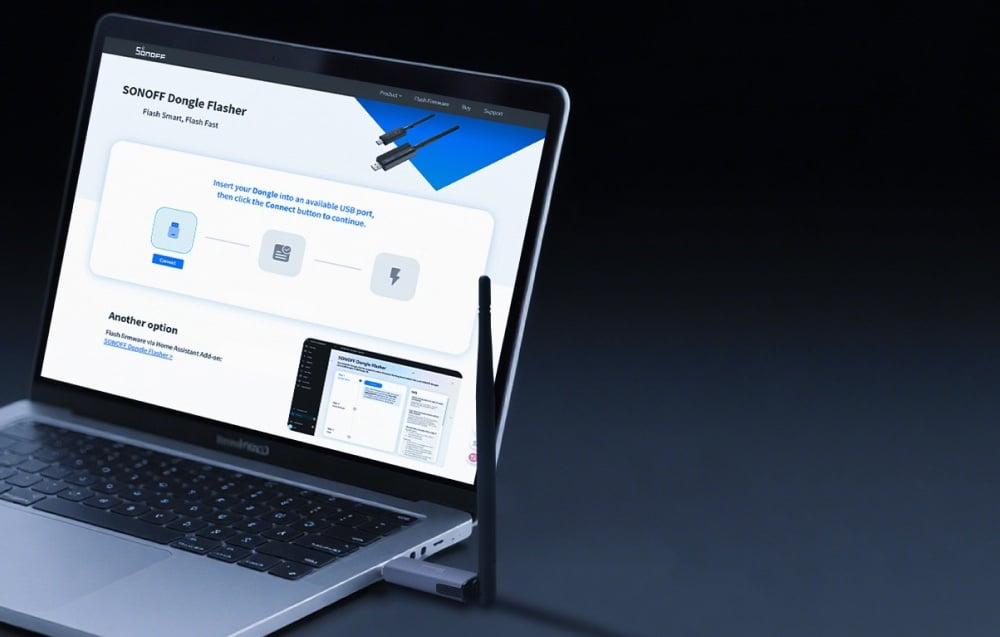

SONOFF Dongle Plus MG24 supports multiple operating modes - it can work as a ZigBee coordinator, ZigBee router, Thread RCP or in MultiPAN mode, which allows the simultaneous use of ZigBee and Thread. Uploading firmware is very easy thanks to the special SONOFF Dongle Flasher tool, which allows online updates in about a minute.
Robust and durable construction
The product housing is made of aluminum, which ensures durability and resistance to damage. The device has been tested in harsh conditions - including temperature and corrosion resistance tests or more than 500 USB plug-in and unplug cycles. This guarantees reliability in everyday use.
Technical parameters:
Input voltage: 5V / 500 mA
Zigbee: IEEE 802.15.4
Operating temperature: -10 °C ~ 60 °C
Material: aluminum, PC, ABS
Color: gray
Dimensions: 151.5 x 62.5 mm
Package contents:
Gateway
USB-A (male) to USB-A (female) cable
User manual
Fast and stable operation
The device is based on a powerful EFR32MG24 chip, which offers 1536 KB of Flash memory and 256 KB of RAM. In practice, this means faster command processing, stable communication and the ability to support multiple connected ZigBee devices.
Range of up to 200 meters
The Dongle Plus MG24 is equipped with a detachable antenna with a maximum gain of 4.5 dBi, which significantly increases the communication range. In open space, the signal can reach up to 200 meters, making it easy to build a large-scale ZigBee network throughout your home or office. The kit also comes with a 1-meter USB extension cable, which allows for better placement of the gateway and reduces interference.
Flexible software
SONOFF Dongle Plus MG24 supports multiple operating modes - it can work as a ZigBee coordinator, ZigBee router, Thread RCP or in MultiPAN mode, which allows the simultaneous use of ZigBee and Thread. Uploading firmware is very easy thanks to the special SONOFF Dongle Flasher tool, which allows online updates in about a minute.
Robust and durable construction
The product housing is made of aluminum, which ensures durability and resistance to damage. The device has been tested in harsh conditions - including temperature and corrosion resistance tests or more than 500 USB plug-in and unplug cycles. This guarantees reliability in everyday use.
Technical parameters:
Input voltage: 5V / 500 mA
Zigbee: IEEE 802.15.4
Operating temperature: -10 °C ~ 60 °C
Material: aluminum, PC, ABS
Color: gray
Dimensions: 151.5 x 62.5 mm
Package contents:
Gateway
USB-A (male) to USB-A (female) cable
User manual
