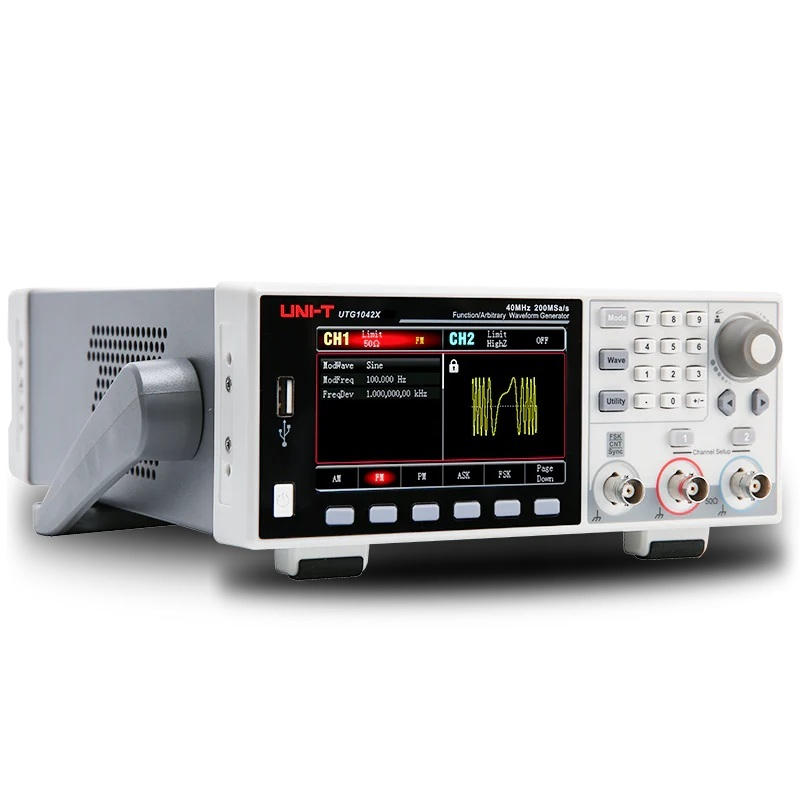

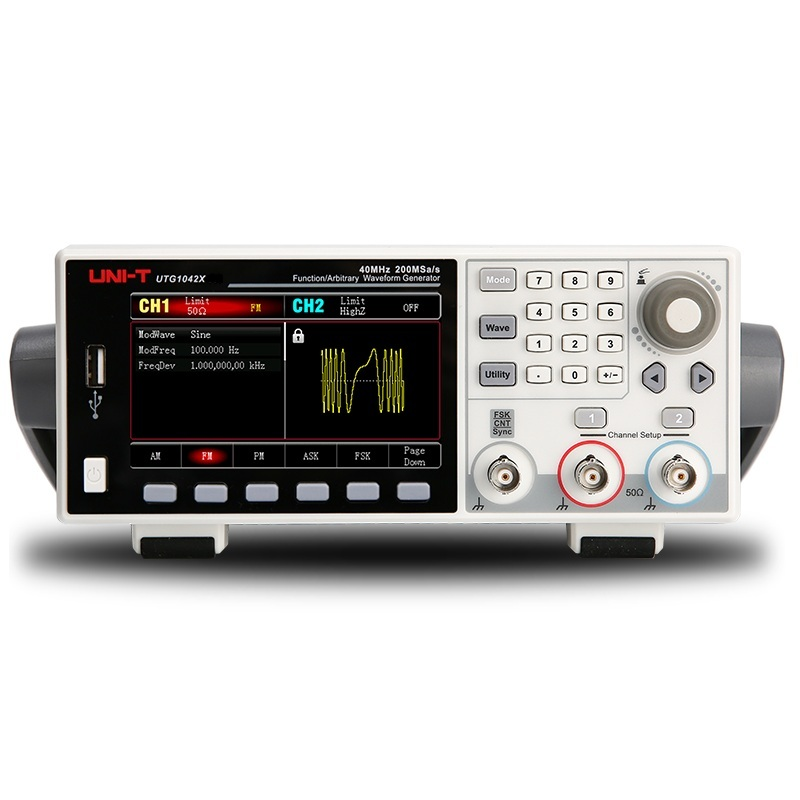

Generator UNI-T UTG1022X

This product comes with a 3-year warranty.

The UTG1022X function generator from the UTG1000X series has an accurate and stable output waveform with a resolution of up to 1 µHz. It is an economical, high-performance and multifunctional function/arbitrary waveform generator. It can generate accurate, stable, clean output signals with low distortion. With convenient operation, excellent technical indicators and user-friendly graphic display, it is a multi-purpose device that meets the needs of learning, testing and manufacturing.
The generator is expected to be used in teaching, designing, testing, troubleshooting and repairing electronic and electro-acoustic devices; testing semiconductor components, etc.


Product parameters:

- dual-channel system with equal power

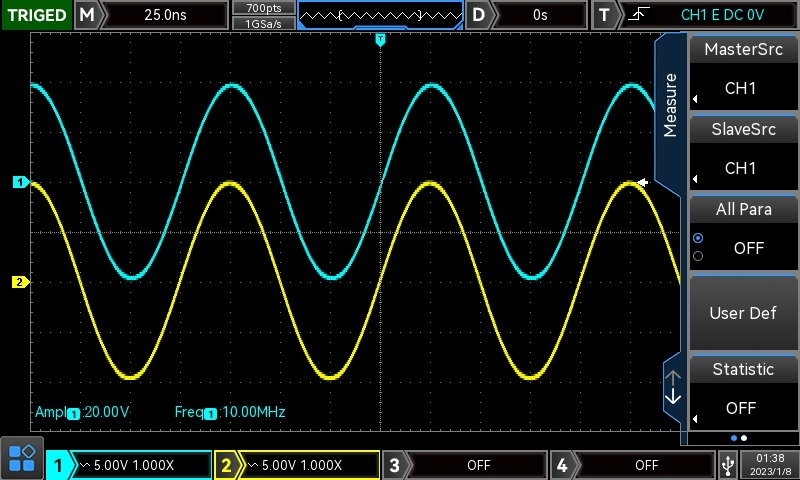

- simultaneously provides two channels with high power. High output amplitude is still guaranteed even at high frequencies

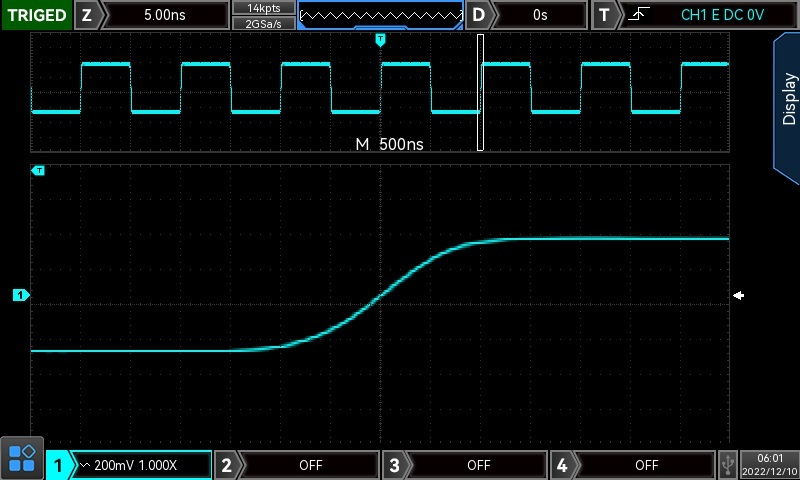

- Can generate a square wave up to 10MHz

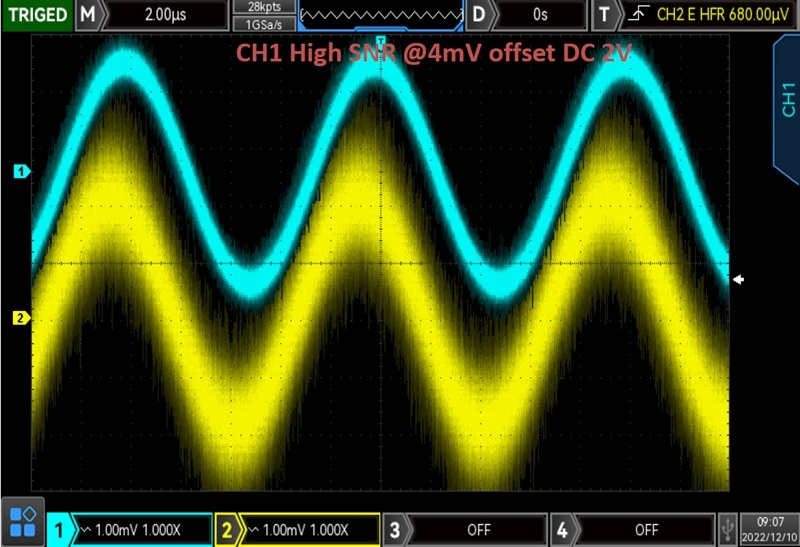

- High signal-to-noise ratio

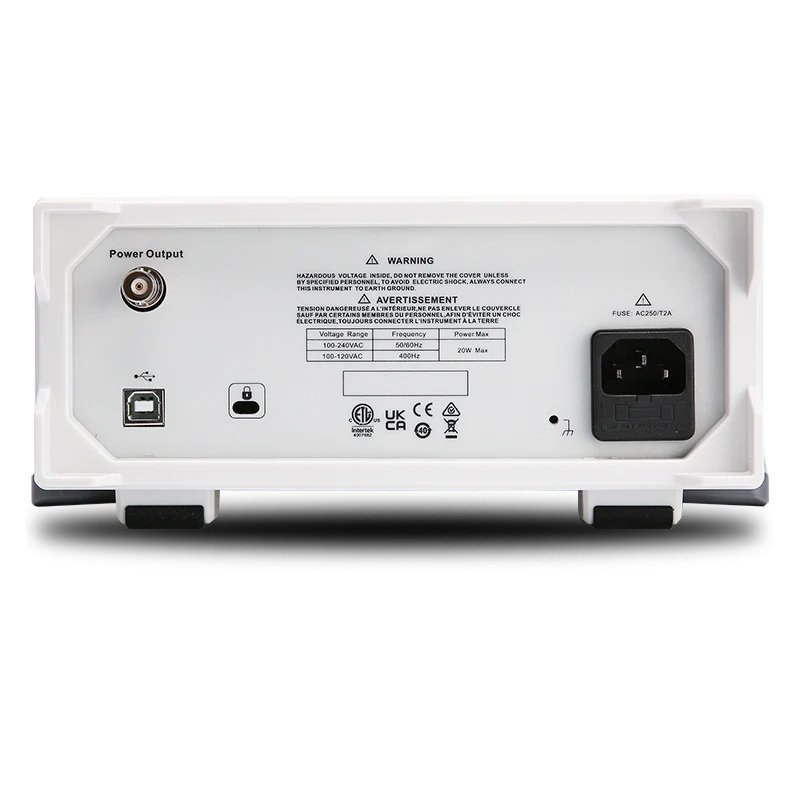

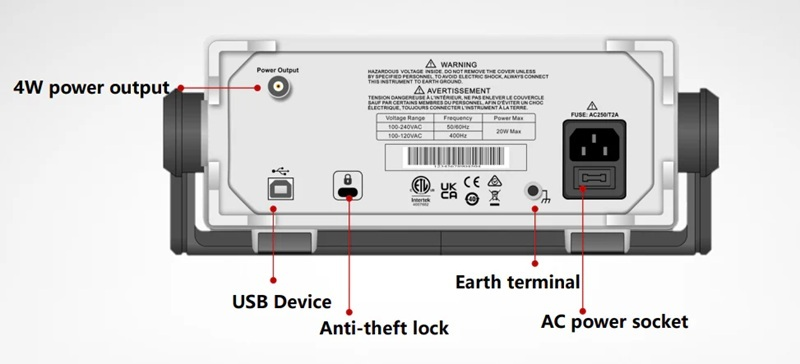

- Optional power amplifier module: The PA model is equipped with a standard power amplifier module, which can provide a maximum waveform signal of 4W to meet the test requirements of some power devices

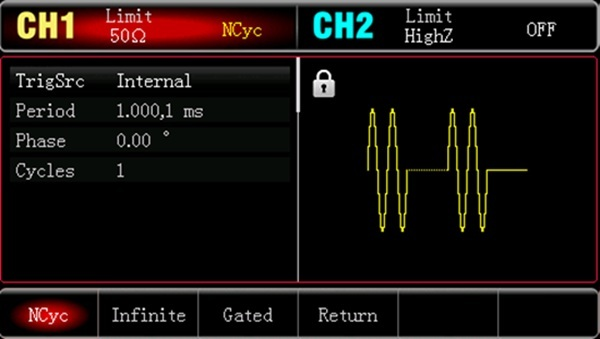

- Rich Burst function: nOffers three pulse train generation methods, allowing more flexible generation of various pulse trains
- Multiple modulation modes: Offers seven analog and digital modulation methods AM, FM, PM, FSK, ASK, PSK and PWM, allowing multiple fields to be used
- Sweep function: Supports two frequency sweep methods: "linear" and "logarithmic"
- 200MSa/s sampling rate and 16-bit vertical resolution

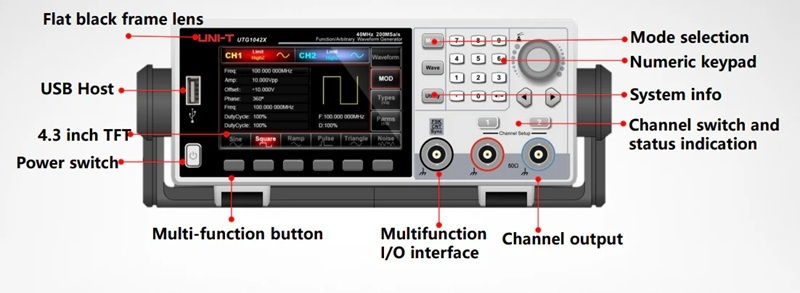

- Multifunction knob and numeric keypad for easy operation


Technical parameters:

- Maximum waveform frequency: 20MHz
- Power supply voltage: 220 - 240 V AC / 50Hz
- waveform frequency range: 1µHz...5MHz (arbitrary waveform), 1µHz...10MHz (pulse waveform), 1µHz...10MHz (square waveform), 1µHz...20MHz (sine waveform), 1µHz...400kHz (ramp waveform)
- type of display used: LCD TFT 4.3"
- display: LCD TFT with a diagonal of 4.3", 480 x 272 pixels
- number of channels: 2
- vertical resolution: 16 bits
- memory depth: 4 kpts
- output parameters: impedance: 50?
- dimensions: 215 x 103 x 316 mm
- interface: USB
- type of modulation: AM, ASK, FM, FSK, PM, PSK, PWM
- waveforms: arbitrary, square, DC, pulse, ramp, sine, noise
- sampling rate: 200MSa/s
- memory: 200 waveforms

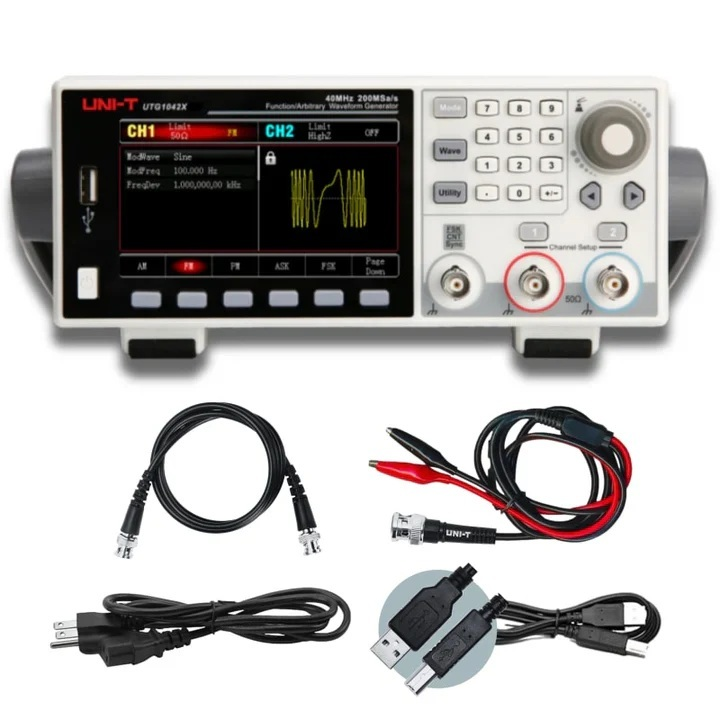

Package contents:
