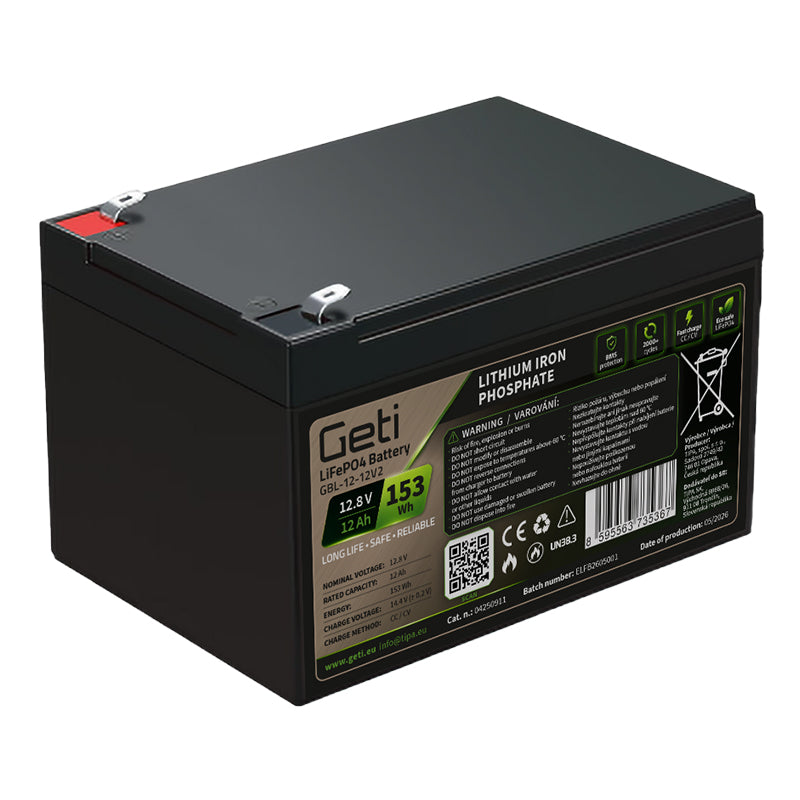

GETI GBL-12-12 12.8V 12Ah LiFePO4 battery

The GETI GBL series LiFePO4 battery is designed for solar systems, caravans, boats, recreational vehicles, scooters and other applications that require frequent and deep discharges. It is a modern, lightweight and high-performance battery with a built-in BMS (Battery Management System), which not only ensures fast charging and a long service life, but also protects the battery against overcharging, over-discharging or short-circuiting. The GETI LiFePO4 battery is therefore an ideal replacement for lead-acid batteries, offering a significantly longer service life (up to 6,000 cycles) whilst being lighter in weight. The LiFePO4 battery is an eco-friendly choice that offers long-term cost savings and is kind to the environment.


Product Description:

- LiFePO4 technology, which, compared to conventional AGM and GEL batteries, offers a much longer service life, smaller dimensions and lower weight whilst maintaining the same capacity.
- Integrated BMS ensuring protection of the cells against overcharging, undercharging or short-circuiting
- High performance
- Long service life
- Low weight
- Fast charging
- No memory effect
- Wide range of applications
- Battery orientation flexibility
- High safety

Technical specifications:

- Nominal voltage: 12.8 V
- Capacity: 12 Ah
- Energy: 153 Wh
- Charging voltage: 14.4 V (+/- 0.2 V)
- load cut-off: 10 V
- charging mode: CC/CV (1st phase: constant current, 2nd phase: constant voltage)
- recommended charging current: 3 A
- Max. continuous charging current: 12 A (max.)
- Max. continuous discharge current: 12 A (max.)
- Max. peak discharge current: 25 A (5 sec.)
- Service life: >2,000 cycles with a capacity loss of 0.2C (80% of new battery capacity)
- BMS: integrated
- Bluetooth: NO
- Self-discharge: ?2% per month
- Charging temperature: 0° to 45 °C
- Discharging temperature: –20° to 60 °C
- Storage temperature: –5° to 35 °C
- Terminals: 6.3 mm Faston
- Configuration: max. 4S4P
- Protection rating: IP65
- Warranty: 2 years
- Dimensions (L×W×H): 151.74 × 97.78 × 97.43 mm
- Weight: 1.4 kg

The batteries can be connected in series or in parallel – 4 in series and 4 in parallel (max.)

Packaging: 1 pc
