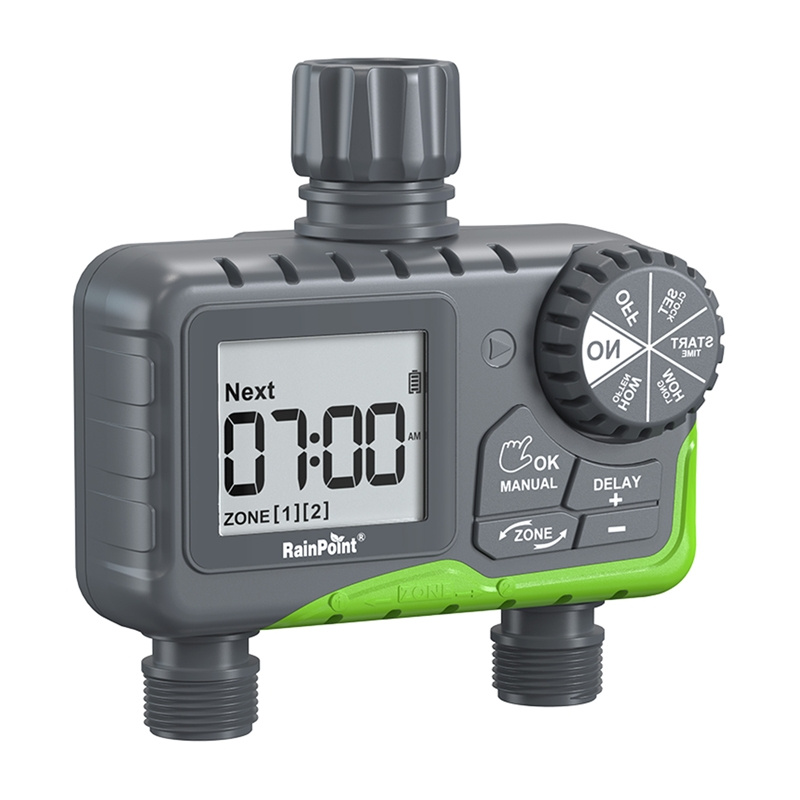

Irrigation clock RAINPOINT ITV205

The RainPoint ITV205-DLS Dual Zone Irrigation Controller allows you to program two areas of your garden separately. A large LCD screen (liquid crystal display) and an intuitive dial with zone selection function make it easy to set up schedules. Each zone can have its own start time, duration and frequency of irrigation. The manual control mode and rain delay function increase the flexibility of operation. Waterproofness with IP65 (International Protection Rating - degree of protection against dust and water jets) and a built-in filter ensure safe and durable outdoor use.

Dual Zone Programming
Each zone can be set separately - both the start time and duration (from 1 minute to 3 hours and 59 minutes) and the frequency of cycles (every 1-12 hours or every 1-7 days). This allows you to fine-tune irrigation for different types of plants or areas of the garden.

Delayed watering

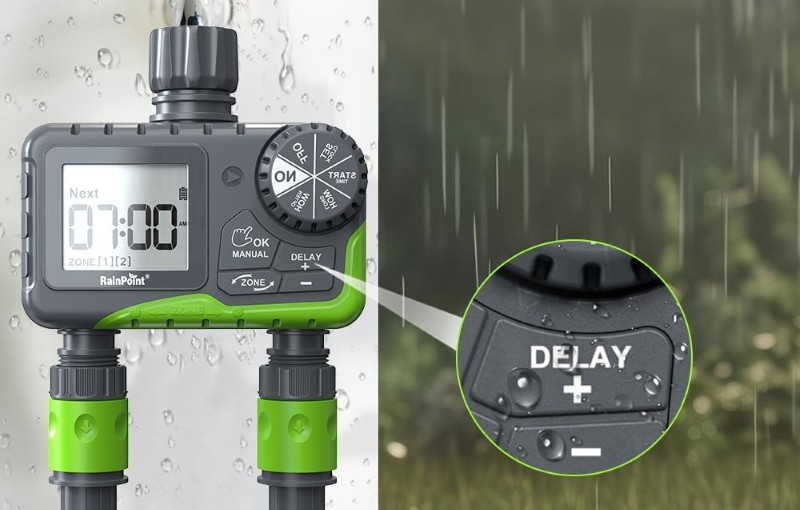

The rain delay function allows you to delay the watering cycle by 24, 48 or 72 hours. This solution comes in handy when rainfall is forecast and prevents the soil from becoming waterlogged.

Manual mode
Watering can be started manually at any time without disturbing the programmed schedule. The OK MANUAL button provides quick access to this function, which is useful, for example, when working in the garden or when watering is temporarily needed.

Easy configuration
Settings are changed using the selector and function buttons. On the clear LCD display, you can read the current mode, the schedule for each zone and the operating status. It is possible to select a 12-hour or 24-hour time format.

Durability and robustness
The regulator supports an operating pressure range of 0.5-8 bar and a flow rate of up to 35 l/min. BSP (British Standard Pipe) threads are suitable for standard 3/4" and 1" taps, and a built-in filter protects the system from dirt. The housing meets the IP65 standard, which means it is dust and water resistant.

Technical parameters:

Working pressure: 0.5-8 bar
Maximum flow rate: 35 l/min
Waterproof class: IP65
Working temperature range: 3 °C - 50 °C
Operating voltage: DC 2.3 V - 3.3 V
Watering frequency: Every 1-12 hours or every 1-7 days
Watering duration: from 1 minute to 3 hours 59 minutes
Water inlet: BSP for 3/4" or 1" tap
Water outlet: for 3/4" garden hose
Power supply: 2 x AA batteries (1.5 V, not included)

Package contents:

2-zone irrigation controller
Sealing tape
Spare gasket x2
Mounting nut
Quick start guide
User manual
