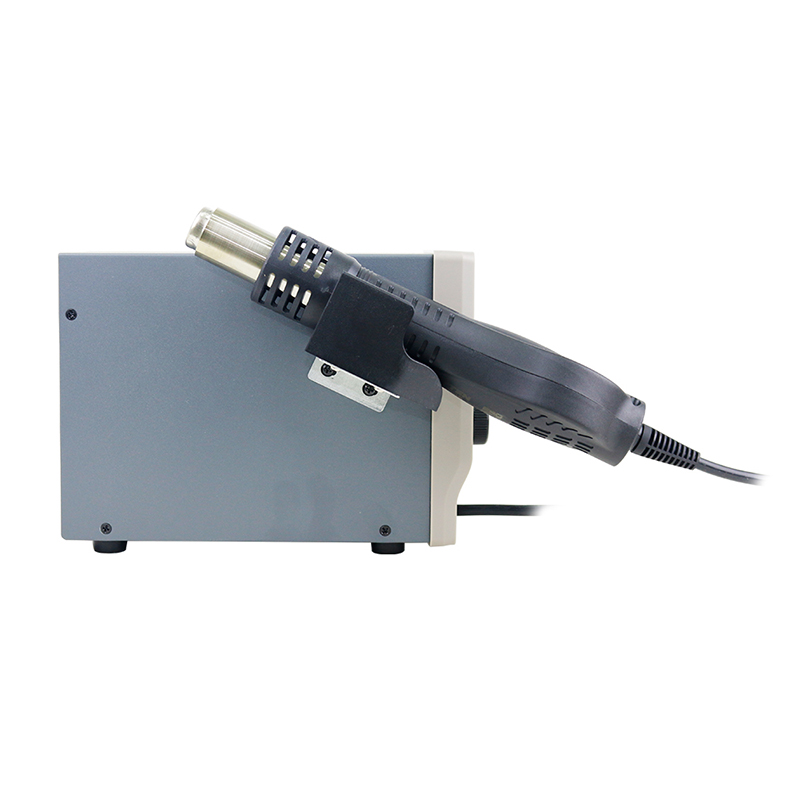

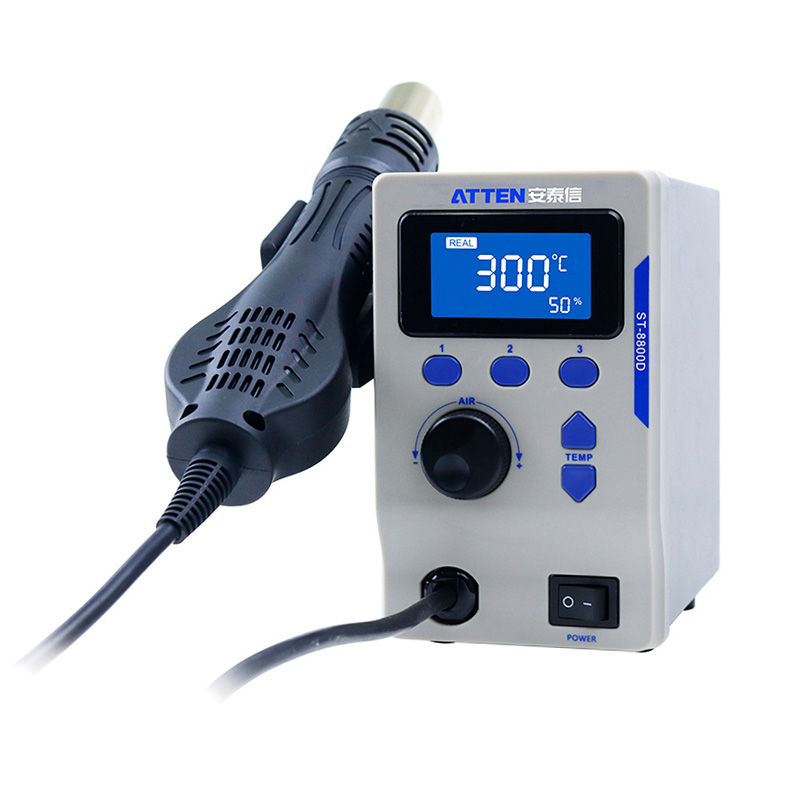

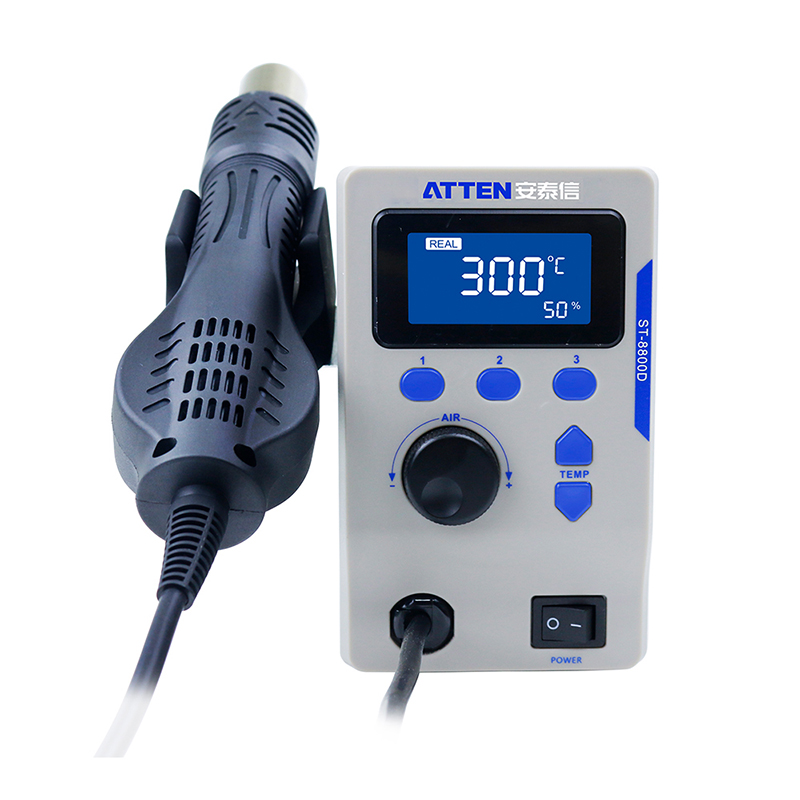

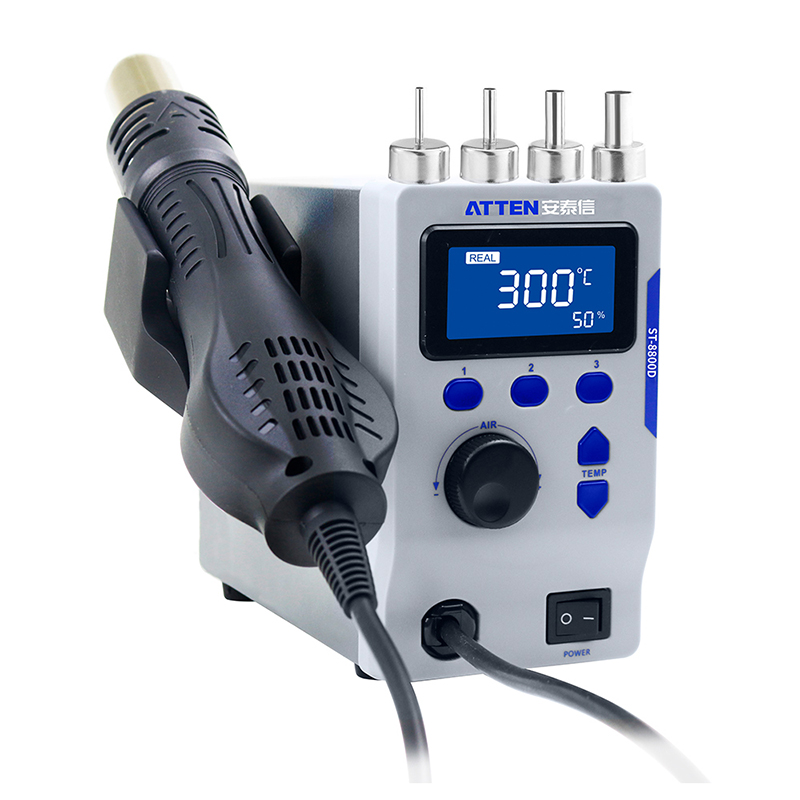

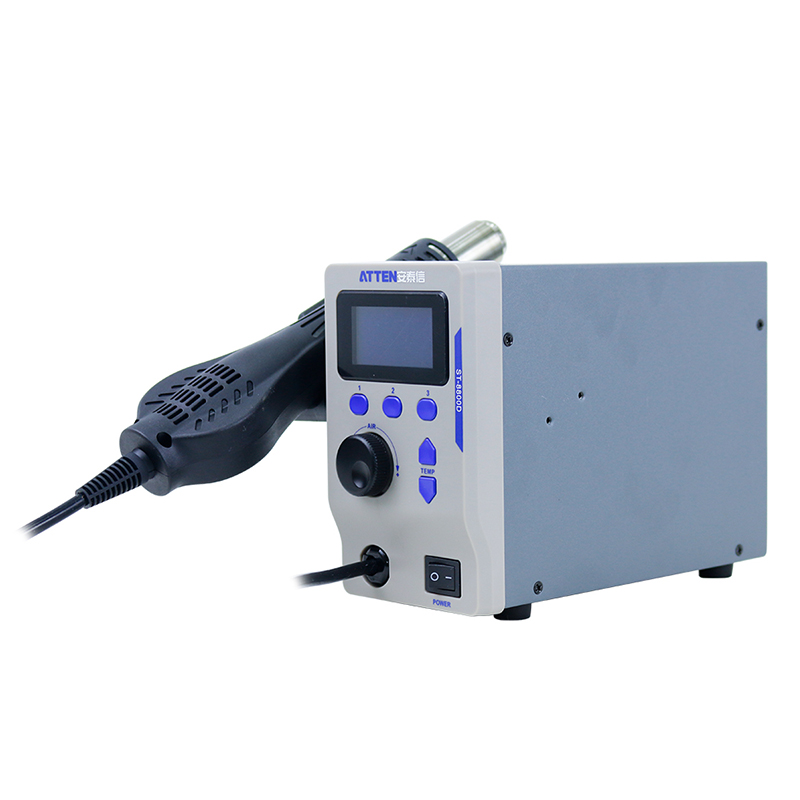

Hot Air Station ATTEN ST-8800D

The ST-8800D benchtop service station with display has a temperature range of 100°C - 500°C. This makes it ideal for desoldering sensitive SMD circuits such as QFP, PLCC, SOJ, BGA, CHIP, etc. However, it is also suitable for many other applications where a concentrated flow of hot air is important, such as cleaning 3D printers, hot mounting, heating materials during maintenance or assembly. Suitable for fast and accurate reheating or blowing off of components during service interventions, for workshops or service workplaces where variability and good air and temperature control are required.
Temperature can be set on the LCD display, quick warm up to operating temperature. The air quantity can be regulated continuously by controlling the mebran pump and using the four different spikes included. Three programmable quick settings for temperature and air flow - the user can have three combinations ready for different types of work.

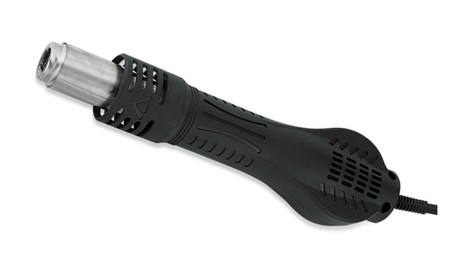

The handle is equipped with non-slip rubber to offer greater comfort and ease of handling. The handle of the heat gun has a built-in sensor. As soon as you pick it up, it immediately goes into working mode, and as soon as you return it to the holder, it goes into standby mode. The automatic standby function saves energy significantly.


Product parameters:

- Digital display: large clear LCD display, easy to adjust temperature/air.
- Temperature control: the user can accurately set the desired temperature from 100 °C to 500 °C, which is ideal for different types of components
- infinitely adjustable hot air quantity
- can be used for blowing and soldering SMD circuits with solder paste
- Automatic sleep function activates when the hot air gun is placed on the stand
- has an independent cold air function, can be used for special purposes
- compatibility of interchangeable attachments

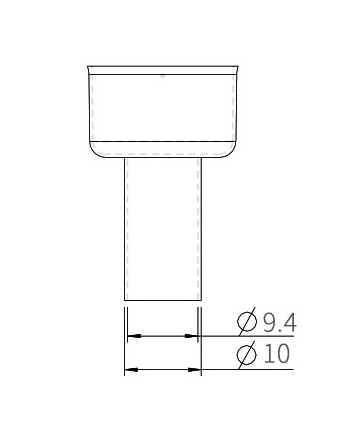

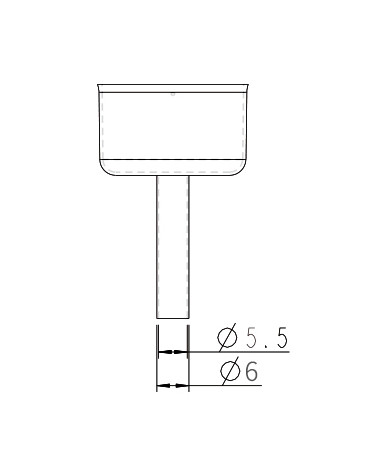

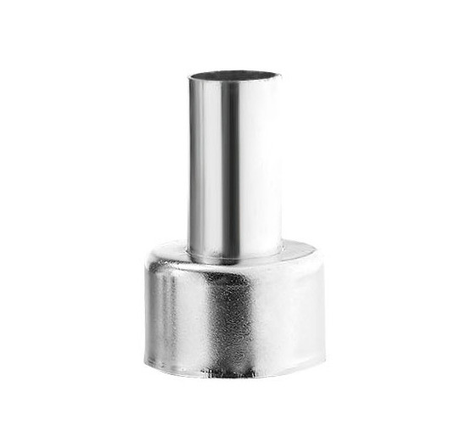

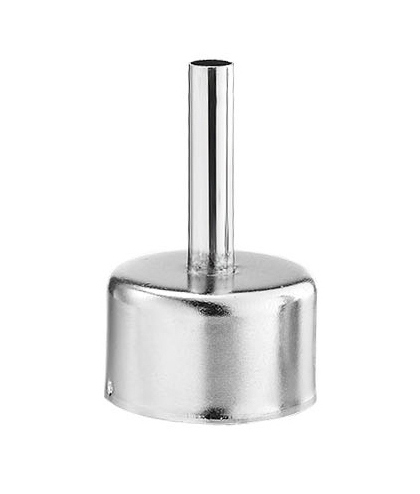

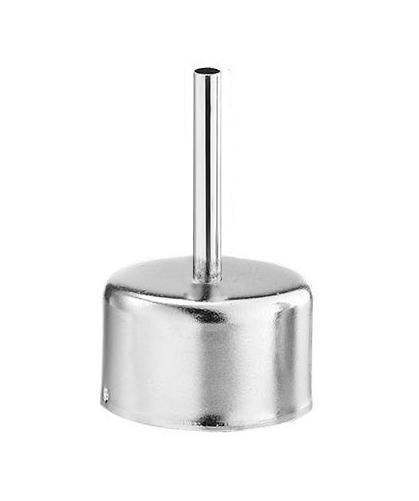

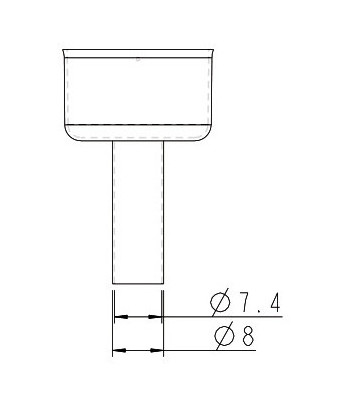

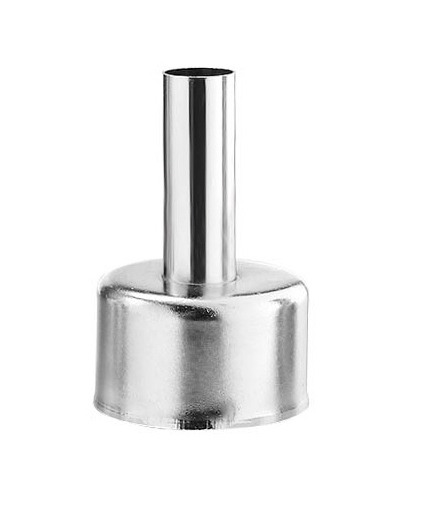

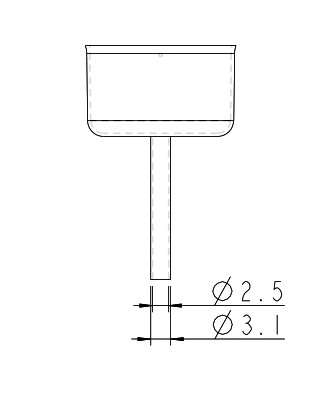

- 4 pcs of interchangeable attachments 3,1 + 6 + 8 + 10 mm diameter ( types: A-2102,A-2104,A-2105,A-2131) for concentrated air flow
- automatically cooling system


Technical parameters:

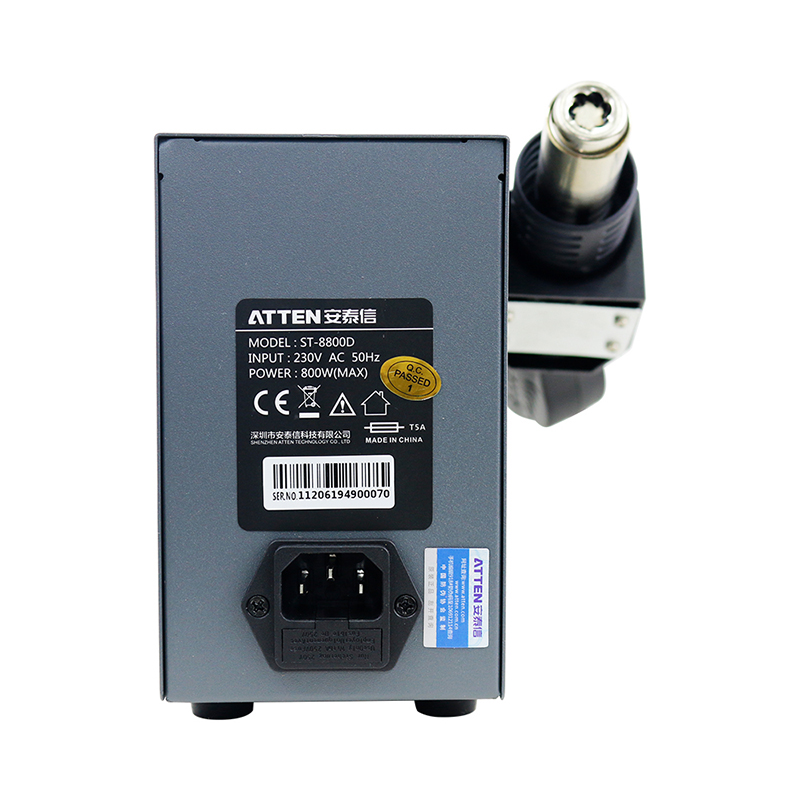

- operating voltage: 220-240V AC/50Hz
- power consumption (max.): 800 W
- temperature (min.): 100 °C
- temperature (max.): 500 °C
- Temperature accuracy: ±35 °C
- air volume adjustment range: 10% to 100%
- Air diaphragm compressor capacity: 30 to 120 l/min
- three quick temperature buttons that can be set and stored.
- Dimensions(LxWxH): 167 × 142 × 148 mm
- weight: 1.56 kg
- 4 × attachments (types: A-2102, A-2104, A-2105, A-2131)

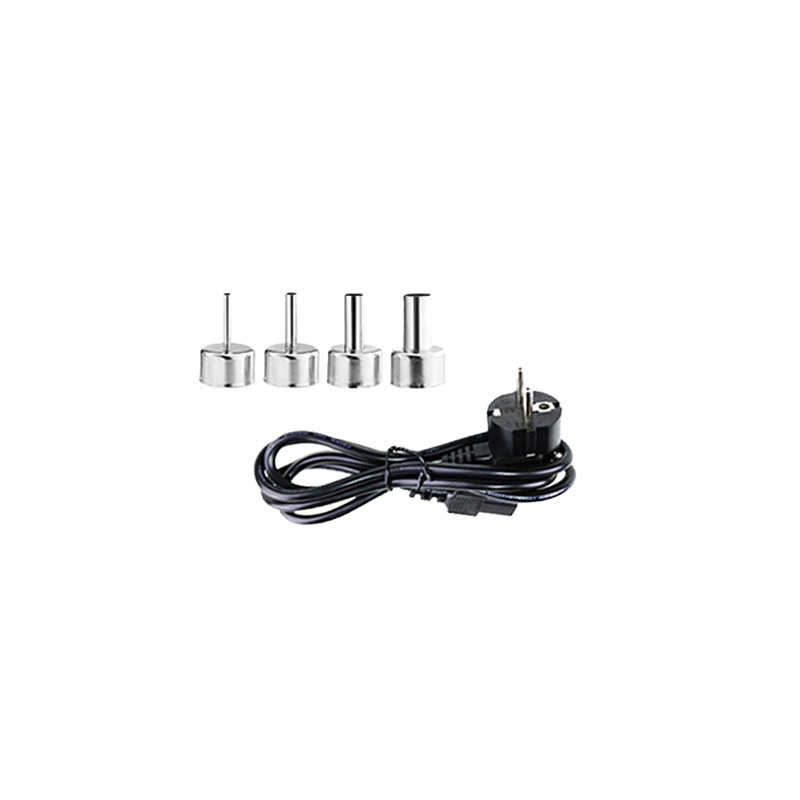

Package contents :
- Service station
- 4 interchangeable attachments
- storage stand
