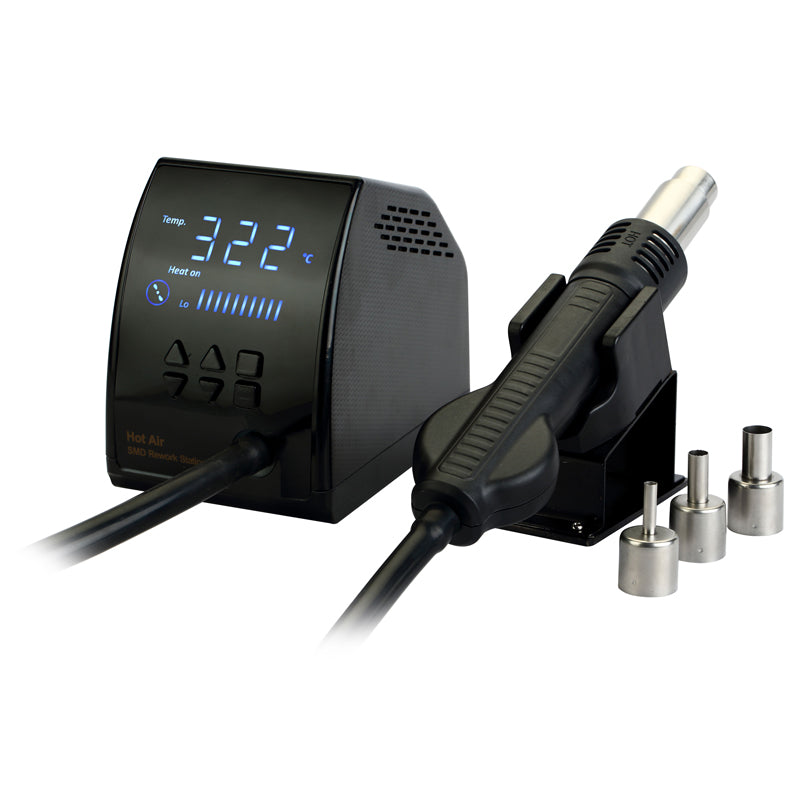

Hot air station ZD-8968

Hot air blower ZD-8968 has a temperature range of 100°C - 500°C. This makes it perfect for desoldering sensitive SMD circuits such as SOIC, CHIP, PLCC, BGA, etc. But it is also applicable in a number of other areas of use where a concentrated flow of hot air is important, e.g. when cleaning 3D printers, during hot fitting, shrink tubing, heating materials during maintenance or assembly. The temperature can be set on the LED display. The amount of air can be smoothly regulated by regulating the fan speed and using the three different tips that are included in the delivery. Additional tips-extensions according to the shape of the SMD component can be purchased. The pen is equipped with a non-slip rubber handle that offers greater comfort and ease of handling. The handle of the heat gun has a built-in sensor. As soon as you pick it up, it immediately goes into working mode, and as soon as you return it to the holder, it goes into standby mode. The automatic standby function significantly saves energy.


Product parameters:

- LED digital display for displaying the working temperature
- continuously adjustable air temperature
- continuous adjustment of the amount of hot air

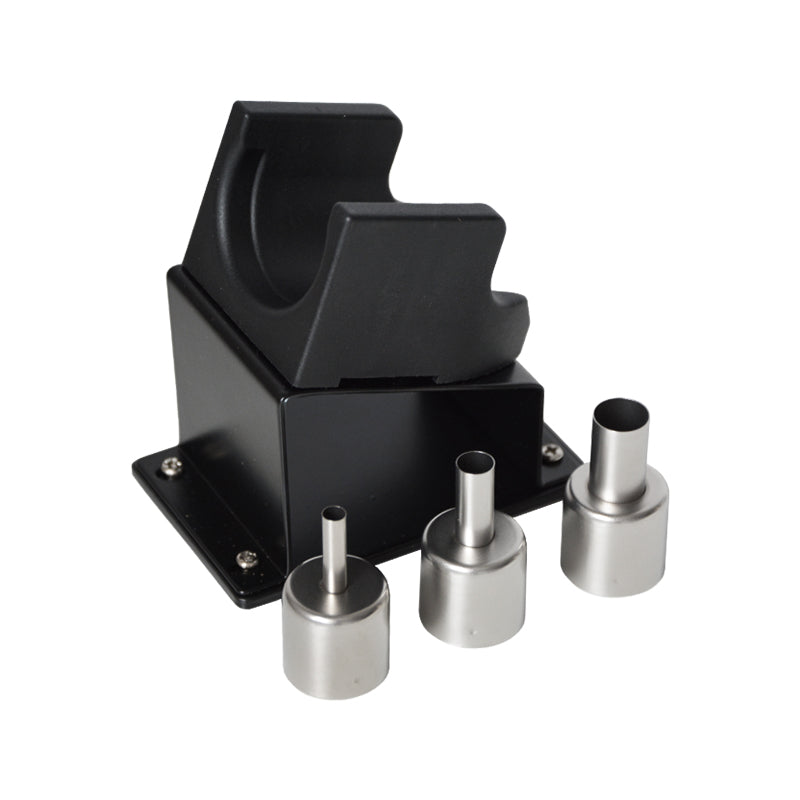

- 3 pcs of replaceable tips for concentrated air flow
- integrated into a single device
- can be used for blowing and for soldering SMD circuits using solder paste
- sleep mode - when the handle is placed in the holder, the heating and after a while the fan is automatically switched off
- high-quality heating element brings twice the work efficiency
- the motor fan ensures a gentle air flow, a long service life and very low noise during operation


Technical parameters:

- operating voltage: 220-240V AC/50Hz
- power (max.): 300 W
- temperature (min.): 100 °C
- temperature (max.): 500 °C
- weight: 1.2 kg
- soldering pen type: desoldering iron
- air pump capacity max. 20l/min
- 3 x attachment: diameter 4.4+8+12mm


Package contents :

- hot air blower ZD-8968 with handle
- 3 interchangeable attachments
- storage rack
