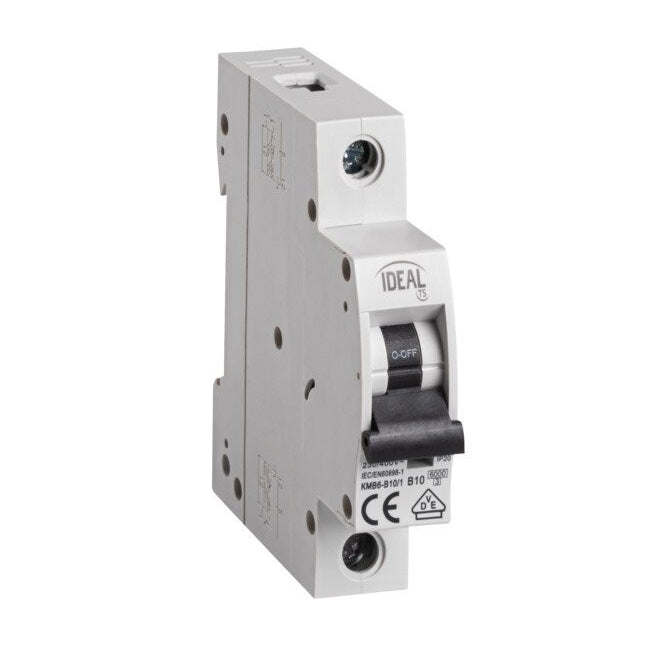

Circuit breaker 10A KANLUX KMB6-B10/1 23141
Jistič - jednopólový, jmenovitý proud 10A, vypínací charakteristika B, jmenovité napětí 230/400V AC, jmenovitá frekvence 50Hz, zkratový proud 6000A, krytí IP20, třída energetických omezení 3, průřez vodičů 1–25 mm2, šířka 17,5 mm, délka 76 mm, výška 82 mm, hmotnost 94 g, norma PN-EN 60898-1, barva bílá, 1 modul
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
KANLUX | SKU:
08773594
Circuit breaker 10A KANLUX KMB6-B10/1 23141
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The circuit breaker serves to protect against overloads and short circuits in installations and devices.
Technical parameters:
White color

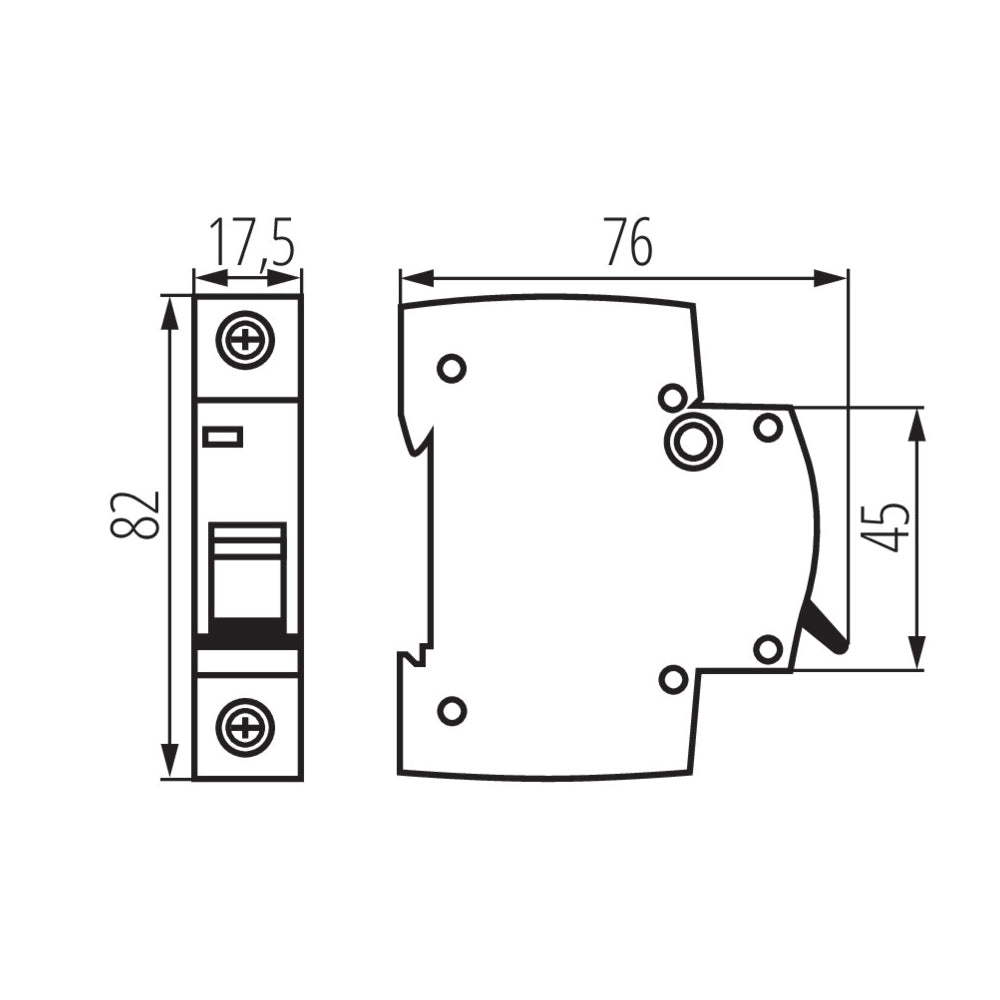

Length [mm]: 76
Nominal frequency [Hz]: 50
Nominal voltage [V]: 230/400 AC
Rated current [A]: 10
Rated short-circuit current [A]: 6000
Standard: PN-EN 60898-1
Number of modules: 1
Usage: 1
Range of ambient temperatures to which the product can be exposed [°C]: 5÷40
Range of diameters of used conductors [mm2]: 1÷25
Degree of protection IP: 20
Width [mm]: 17.5
Class of energy restrictions: 3
Weight[g]: 94
Trip characteristic: B
Height [mm]: 82
Technical parameters:
White color
Length [mm]: 76
Nominal frequency [Hz]: 50
Nominal voltage [V]: 230/400 AC
Rated current [A]: 10
Rated short-circuit current [A]: 6000
Standard: PN-EN 60898-1
Number of modules: 1
Usage: 1
Range of ambient temperatures to which the product can be exposed [°C]: 5÷40
Range of diameters of used conductors [mm2]: 1÷25
Degree of protection IP: 20
Width [mm]: 17.5
Class of energy restrictions: 3
Weight[g]: 94
Trip characteristic: B
Height [mm]: 82
