Circuit breaker KANLUX KRO6-2/B6/30 23220
Jistič-chránič kombinovaný - jmenovitý proud 6A, vypínací charakteristika B, jmenovité napětí 230V AC, frekvence 50Hz, diferenciální proud 30mA, typ chrániče AC, zkratová schopnost 6000A, třída omezení energie 3, krytí IP20, průřez vodičů 10–16 mm2, pracovní teplota -25 až +40°C, rozměry 35 × 75 × 81 mm, hmotnost 180 g, 2 moduly, norma PN-EN 61009-1, ochrana před zkratem, přetížením i úrazem elektrickým proudem
In stock 5 pcs
Expected shipping:
15.06.2026
Regular price
299,00 Kč
247,11 Kč
excl. VAT
Unit price
/
Unavailable
KANLUX | SKU:
08773561

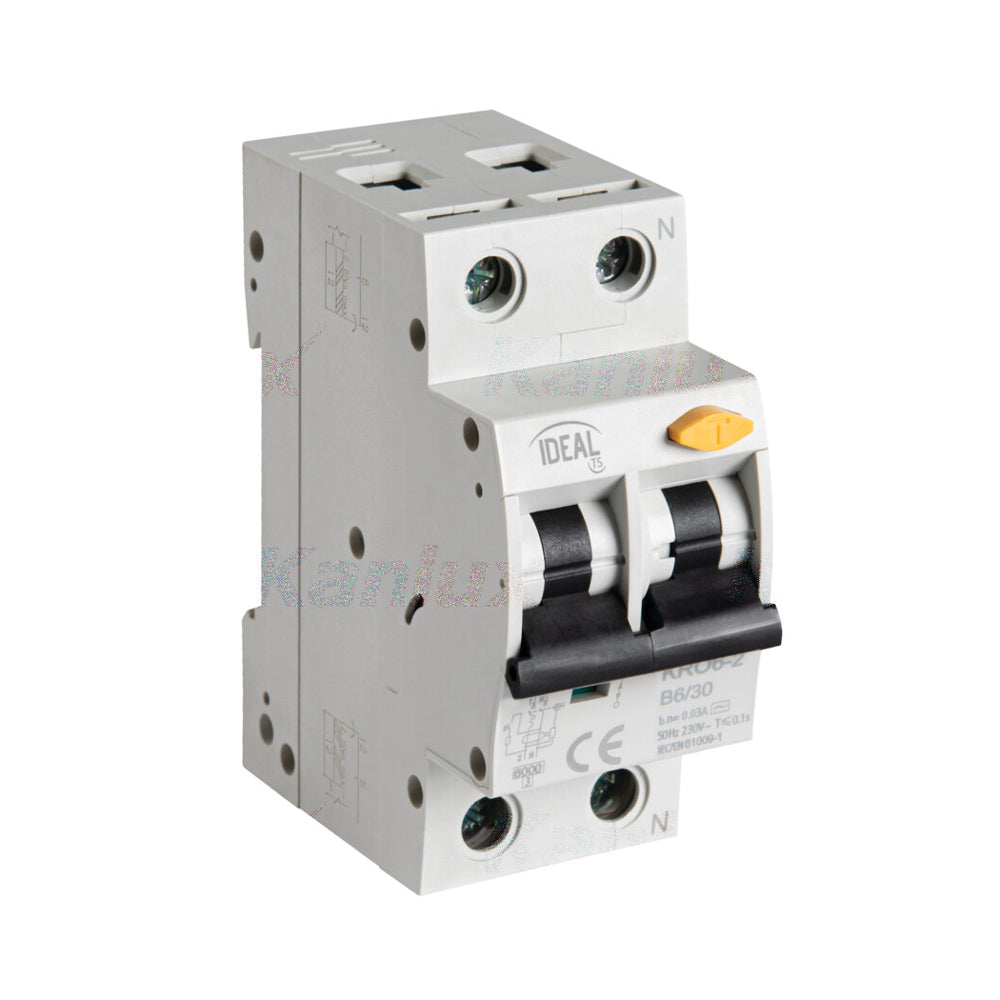

Circuit breaker KANLUX KRO6-2/B6/30 23220
Regular price
299,00 Kč
247,11 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The circuit breaker-current protector combination with overcurrent protection is used to protect against overloads and short circuits in installations and equipment, as well as to protect against electric shock.
Technical parameters:

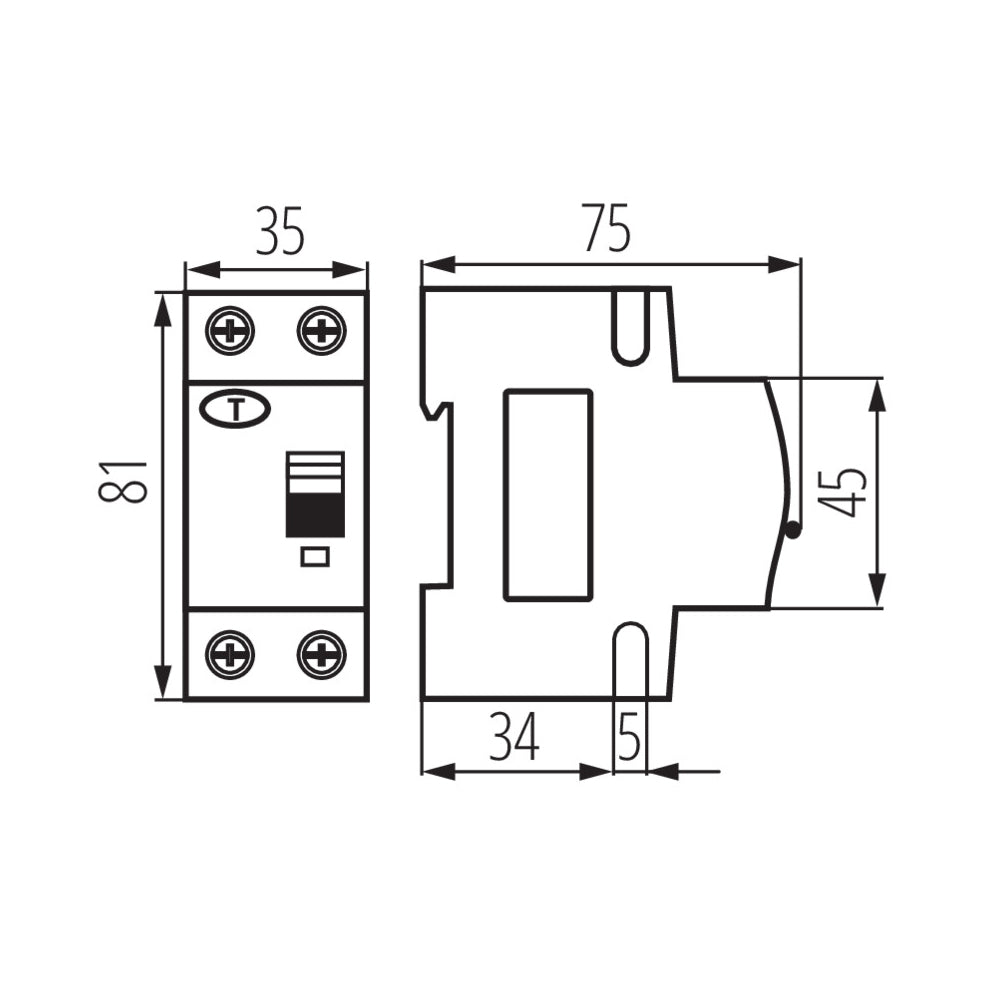

- Height [mm]: 81
- Width [mm]: 35
- Length [mm]: 75
- Weight: 180g
- Nominal voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Rated current [A]: 6
- Rated differential current [mA]: 30
- Range of diameters of used conductors [mm2]: 10÷16
- Range of ambient temperatures to which the product can be exposed [°C]: -25÷40
- Degree of protection IP: 20
- Current protector type: AC
- Rated short-circuit current [A]: 6000
- Class of energy restrictions: 3
- Switching characteristic: B
- Number of modules: 2, 2
- Usage: 2
- Standard: PN-EN 61009 -1
Technical parameters:
- Height [mm]: 81
- Width [mm]: 35
- Length [mm]: 75
- Weight: 180g
- Nominal voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Rated current [A]: 6
- Rated differential current [mA]: 30
- Range of diameters of used conductors [mm2]: 10÷16
- Range of ambient temperatures to which the product can be exposed [°C]: -25÷40
- Degree of protection IP: 20
- Current protector type: AC
- Rated short-circuit current [A]: 6000
- Class of energy restrictions: 3
- Switching characteristic: B
- Number of modules: 2, 2
- Usage: 2
- Standard: PN-EN 61009 -1
