Joystick with button KY-023
Modul joysticku s tlačítkem - typ KY-023, snímání pohybu ve dvou osách X a Y pomocí dvou trimrů 10k?, analogový výstup 0V–5V pro osy VRx a VRy, digitální výstup SW pro tlačítko aktivované stlačením, napájecí napětí 3,3V až 5V, piny GND/VCC/VRx/VRy/SW, rozměry 26 × 34 × 30 mm, vhodný pro RC modely, robotické aplikace a vlastní ovladače, vyžaduje odbornou montáž
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
15,00 Kč
12,40 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
02630057
Joystick with button KY-023
Regular price
15,00 Kč
12,40 Kč
excl. VAT
Unit price
/
Unavailable
Product description

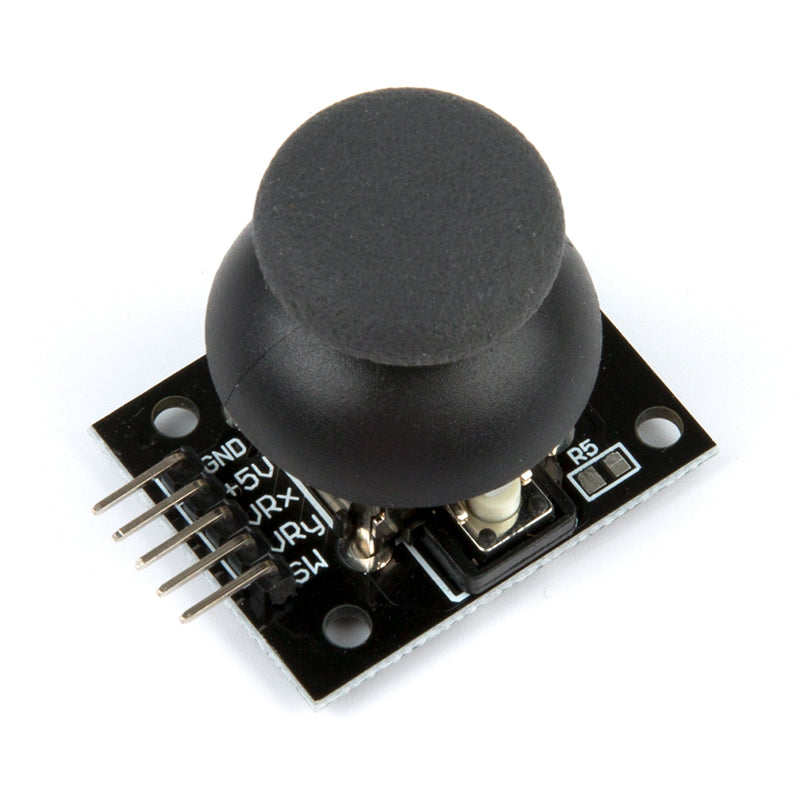

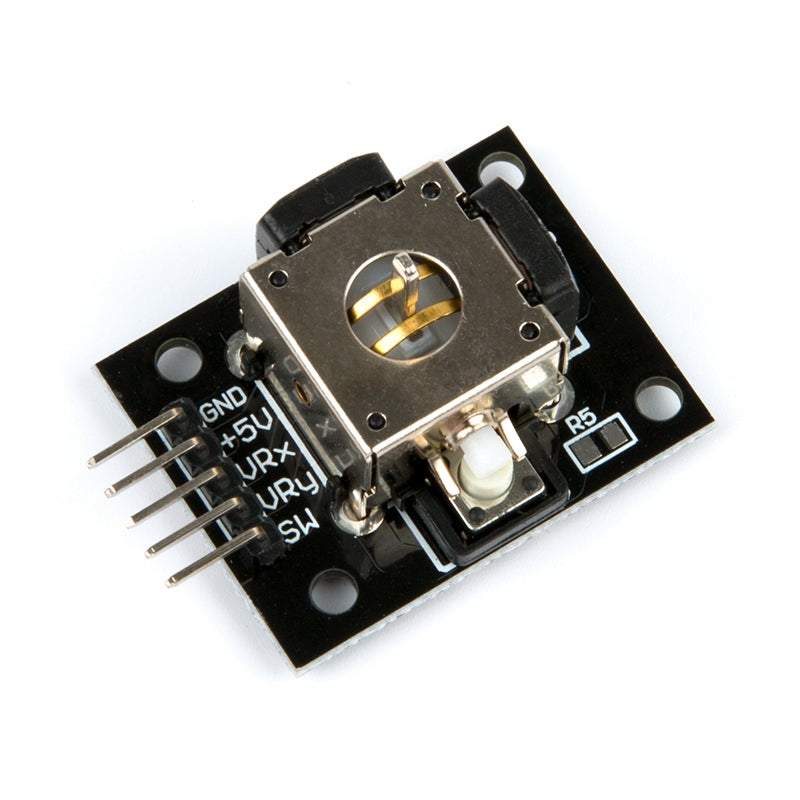

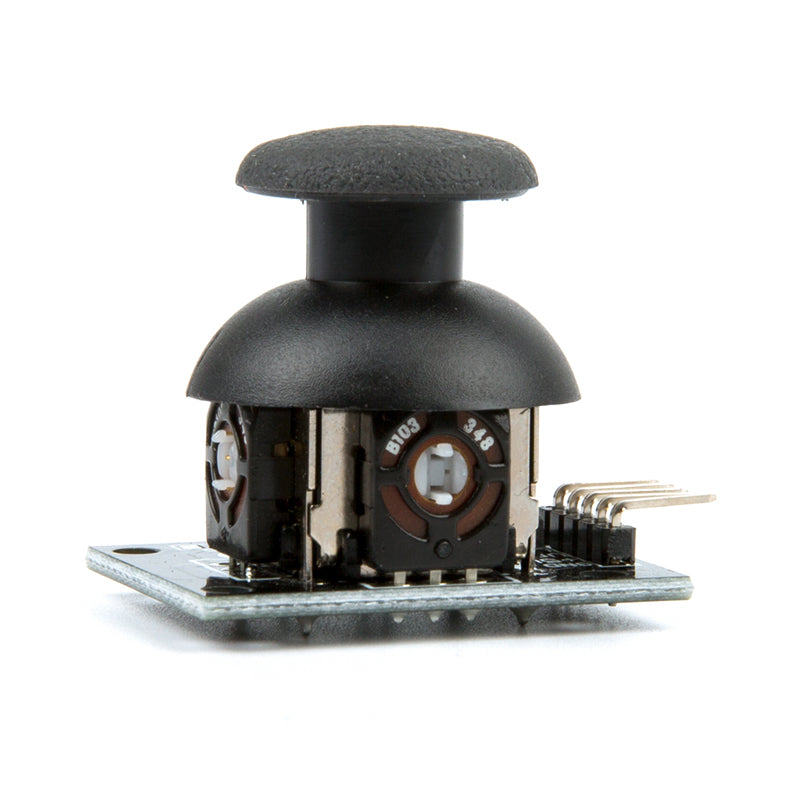

The KY-023 joystick module with a button allows for the detection of movement in two axes, X and Y, using two 10k? potentiometers. The button is activated when the joystick is pressed down. The X and Y values correspond to an output analog voltage level of 0V to 5V. It is suitable for use in RC models, robotic arms, or various controllers.

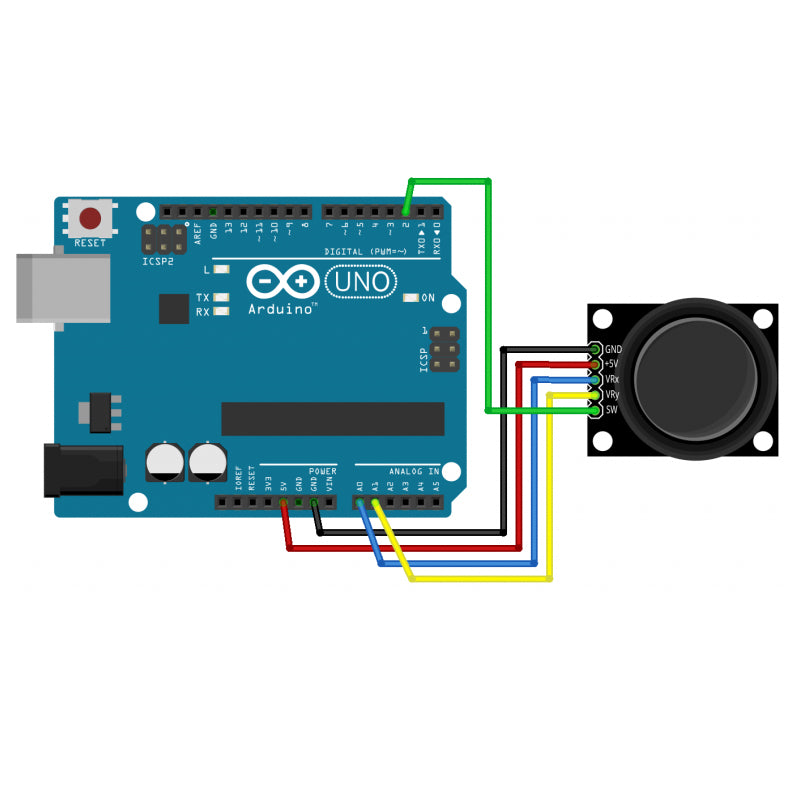

Pins:
- GND: (ground, 0V)
- VCC: (5V)
- VRx: (analog output X)
- VRy: (analog output Y)
- SW: (digital output, button)
Parameters:
- Power supply voltage: 3.3V to 5V
- Dimensions: 26 x 34 x 30 mm
This product is not a self-contained unit and may require professional assembly.
Pins:
- GND: (ground, 0V)
- VCC: (5V)
- VRx: (analog output X)
- VRy: (analog output Y)
- SW: (digital output, button)
Parameters:
- Power supply voltage: 3.3V to 5V
- Dimensions: 26 x 34 x 30 mm
This product is not a self-contained unit and may require professional assembly.
