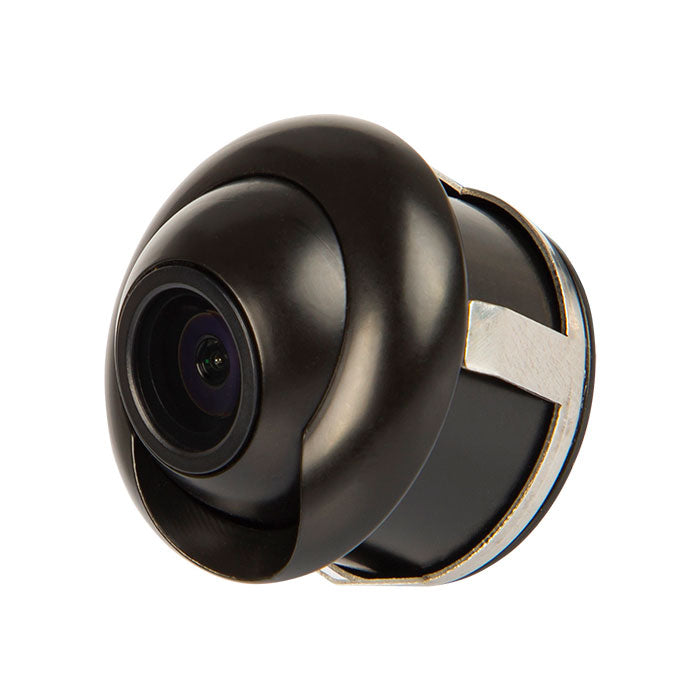

Parking camera BLOW BVS-545

The BLOW BVS-545 reversing camera is suitable for motor vehicles. Checks the space behind the vehicle when reversing the car. The device helps when reversing, but does not deprive the driver of the special attention required when reversing. The reversing camera is suitable for installation in passenger cars and light commercial vehicles. A monitor is not included in the package.

Properties:

- Image sensor: 1/3.6 inch CMOS
- Resolution: 648 x 488
- Measuring area: 4.9 x 3.7
- Lens: F = 1.9mm / F = 2.0
- Signal system: PAL
- Horizontal sync (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain control and backlight settings
- Horizontal resolution: 480 TV lines
- Minimum illumination: 0.01 lux
- Signal/Noise: < 48.0 [dB]
- Viewing angle of the image sensor: 170°
- Horizontal viewing angle: 120°
- Vertical viewing angle: 90°
- Diagonal viewing angle: 165°
- Water resistance class: IP67
- Voltage range: DC 9-15V

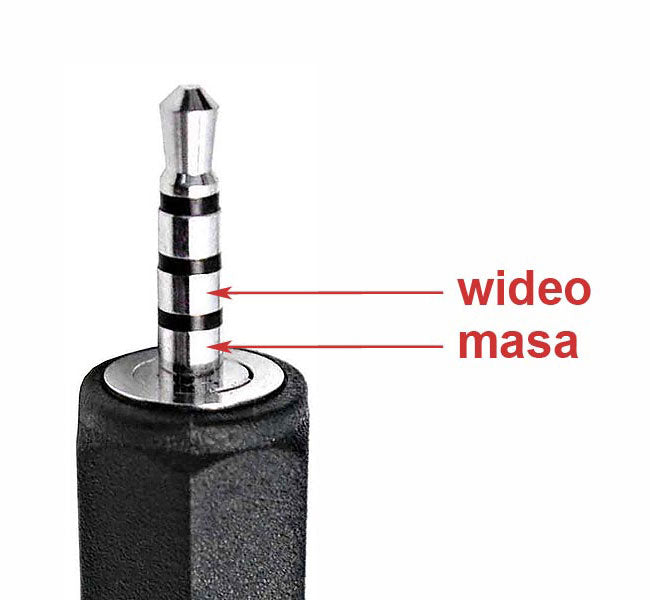

- Video output: 1.0 Vp-p / 75 ?
- Operating temperature: -20 ~ +70°C, RH 95% Max
- Storage temperature: -30 ~ +80°C, RH 95% Max
- Cable length at the camera: 55 cm
- Power cable length: 75 cm
- Length of the video cable to the monitor: 580 cm
