Parking camera BLOW BVS-548

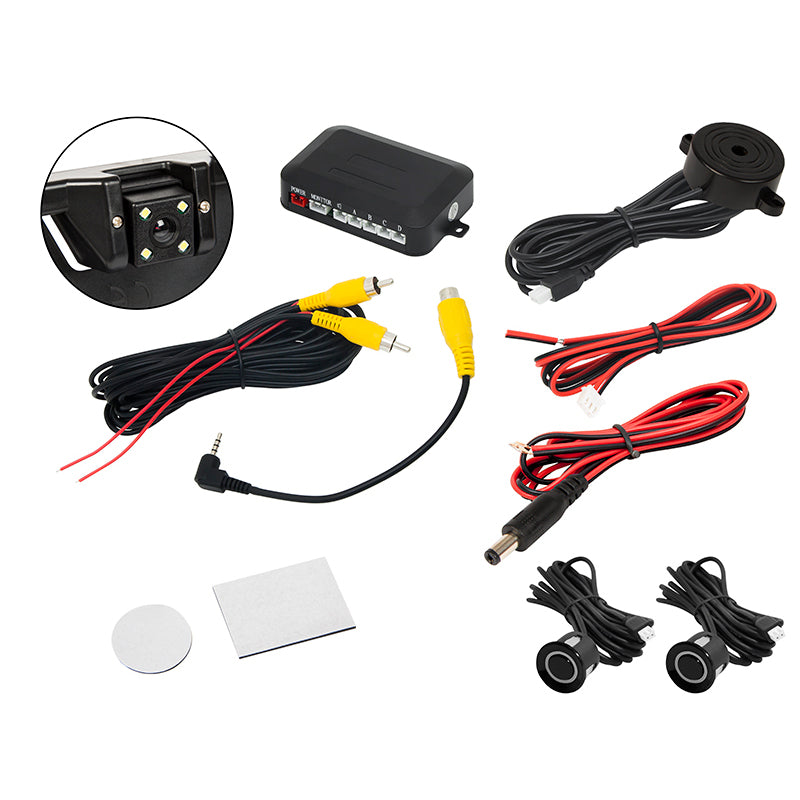

Wired reversing camera and two Blow parking sensors mounted in the license plate frame, intended for installation in cars and vans. The task of the camera is to transmit the current image behind the vehicle, which will definitely make parking and reversing in places with limited visibility much easier.

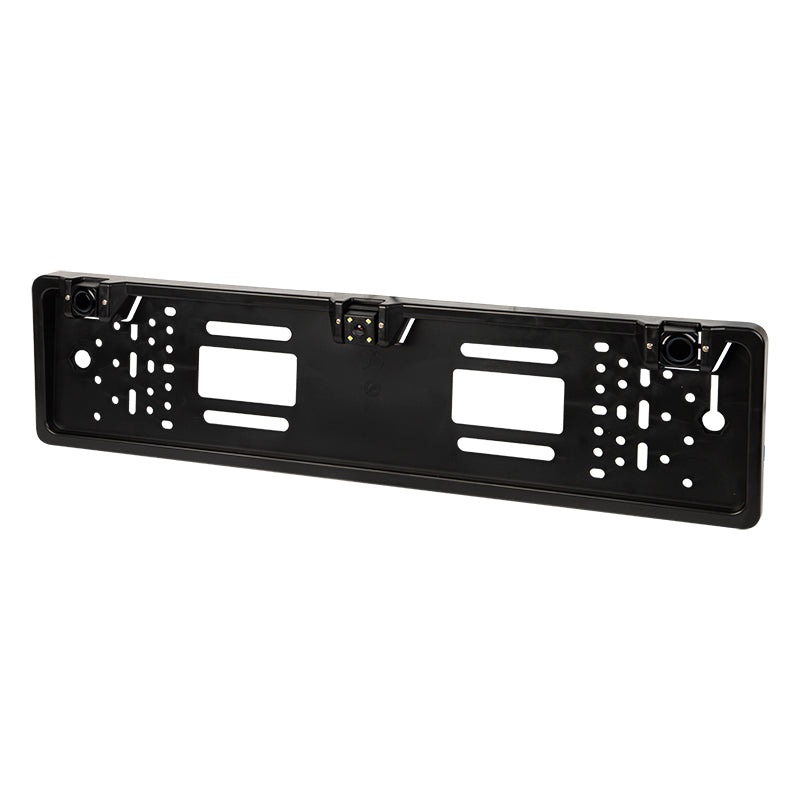

Camera in license plate frame
The modern way of mounting the camera in the license plate frame will definitely facilitate a quick and efficient installation in our car. We don't have to worry about preparing another place for the camera in the car or interfering too much with the appearance and adjustments.

Parking sensors
In addition to the camera, there are also parking sensors in the license plate frame - this means that all important elements supporting reversing and parking are in one place.

Technical parameters:

Image sensor: 1/3.6 inch CMOS
Resolution: 648x488
Measuring area: 4.9 x 3.7
Lens: F = 1.9mm / F = 2.0
Signal system: PAL
Horizontal sync (kHz): 15625/15734
V-Sync (Hz): 50/60
Automatic gain control and backlight control: YES
Horizontal resolution: 480 TV lines
Minimum illumination: 0.01 lux
Signal to Noise: < 48.0 [dB]
Viewing angle of the image sensor: 170 degrees
Horizontal viewing angle: 120°
Vertical viewing angle: 90°
Diagonal viewing angle: 165°
Water resistance class: IP67
Voltage range: DC 9-15V
Video output: 1.0 Vp-p / 75 ?
Operating temperature: -20 ~ +70°C, RH 95% Max
Storage temperature: -30 ~ +80°C, RH 95% Max
