Parking camera CCD 703
8% off
Parkovací CCD kamera - snímací čip 707/1086 CCD, rozlišení 420 TV řádků, snímací úhel 90°, TV systém PAL, min. osvětlení 0,1–0,5 lux, zrcadlový/přímý výstup (přestřižení modré smyčky), zobrazení parkovacích trajektorií (vypnutí přestřižením bílé smyčky), krytí IP66, napájení 12V/60mA, délka kabelu 5 m, pracovní teplota -20 až +90°C, video výstup CINCH, montáž vrtáním o 18 mm, automatické vyvážení bílé, AGC a BLC
In stock 2 pcs
Expected shipping:
16.06.2026
Sale price
748,00 Kč
Regular price
815,00 Kč
618,18 Kč
excl. VAT
Unit price
/
Unavailable
STU | SKU:
06438758
Parking camera CCD 703
Sale price
748,00 Kč
Regular price
815,00 Kč
618,18 Kč
excl. VAT
Unit price
/
Unavailable
Product description

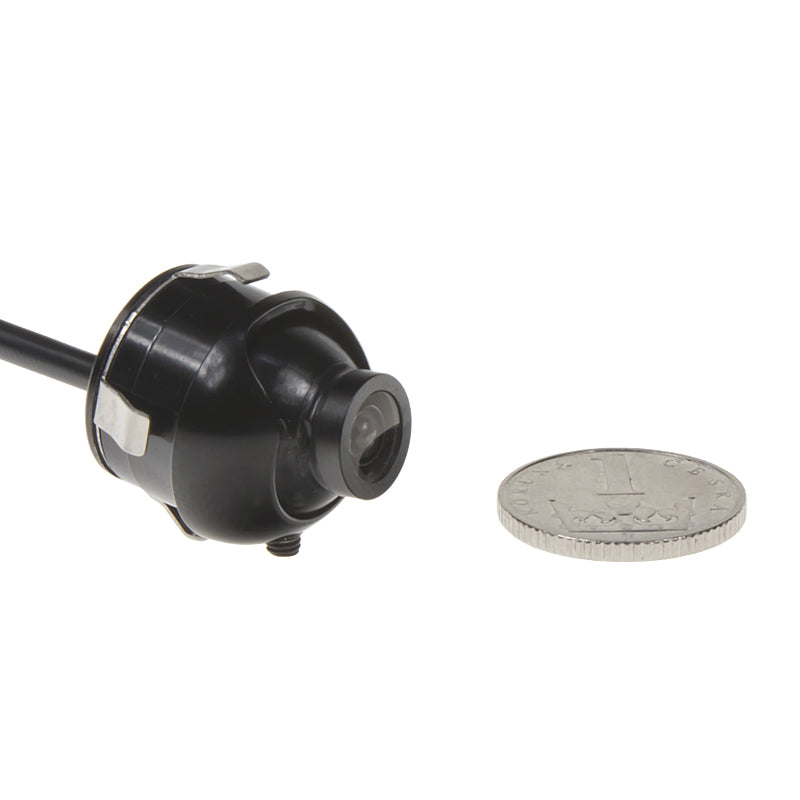

A miniature CCD color camera designed for drilling preferably above the vehicle's rear license plate. The camera allows you to adjust the lens according to the direction angle you need. The camera optionally displays auxiliary trajectories for parking.
Technical parameters:
- scanning angle 90°
- PAL TV system
- min. lighting 0.1-0.5 LUX
- 707/1086 CCD sensor chip
- resolution of 420 TV lines
- mirror output image, directly after cutting the blue loop
- displays auxiliary trajectories for reversing, after cutting the white loop the trajectories disappear
- waterproof protection IP 66
- 12 V / 60 mA power supply
- working temperature from - 20 °C to + 90 °C
- cable length 5 m
- automatic white balance, AGC and BLC

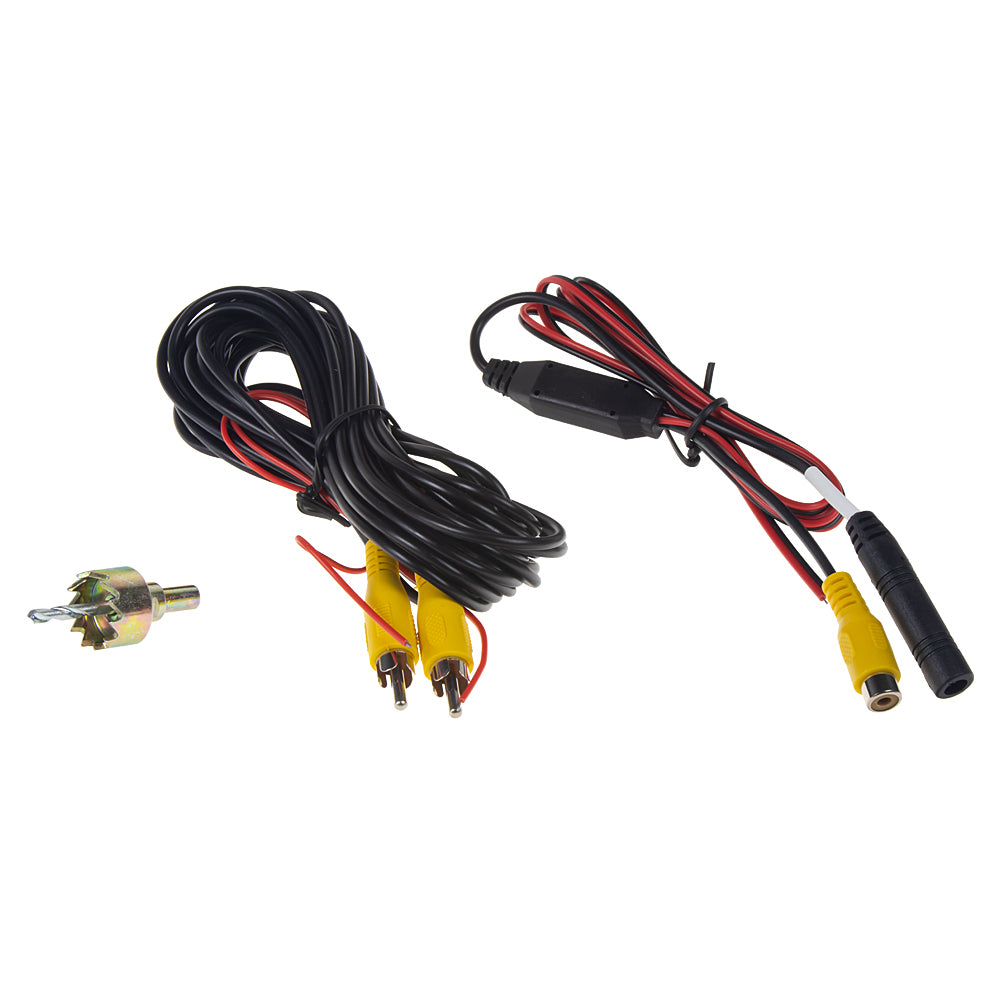

- connection connectors: video output - CINCH female, power supply - loose wires. Disconnect connector on the camera
- dimensions: drill o 18 mm, camera o 22 mm, max height from drilling 15 mm
Technical parameters:
- scanning angle 90°
- PAL TV system
- min. lighting 0.1-0.5 LUX
- 707/1086 CCD sensor chip
- resolution of 420 TV lines
- mirror output image, directly after cutting the blue loop
- displays auxiliary trajectories for reversing, after cutting the white loop the trajectories disappear
- waterproof protection IP 66
- 12 V / 60 mA power supply
- working temperature from - 20 °C to + 90 °C
- cable length 5 m
- automatic white balance, AGC and BLC
- connection connectors: video output - CINCH female, power supply - loose wires. Disconnect connector on the camera
- dimensions: drill o 18 mm, camera o 22 mm, max height from drilling 15 mm
