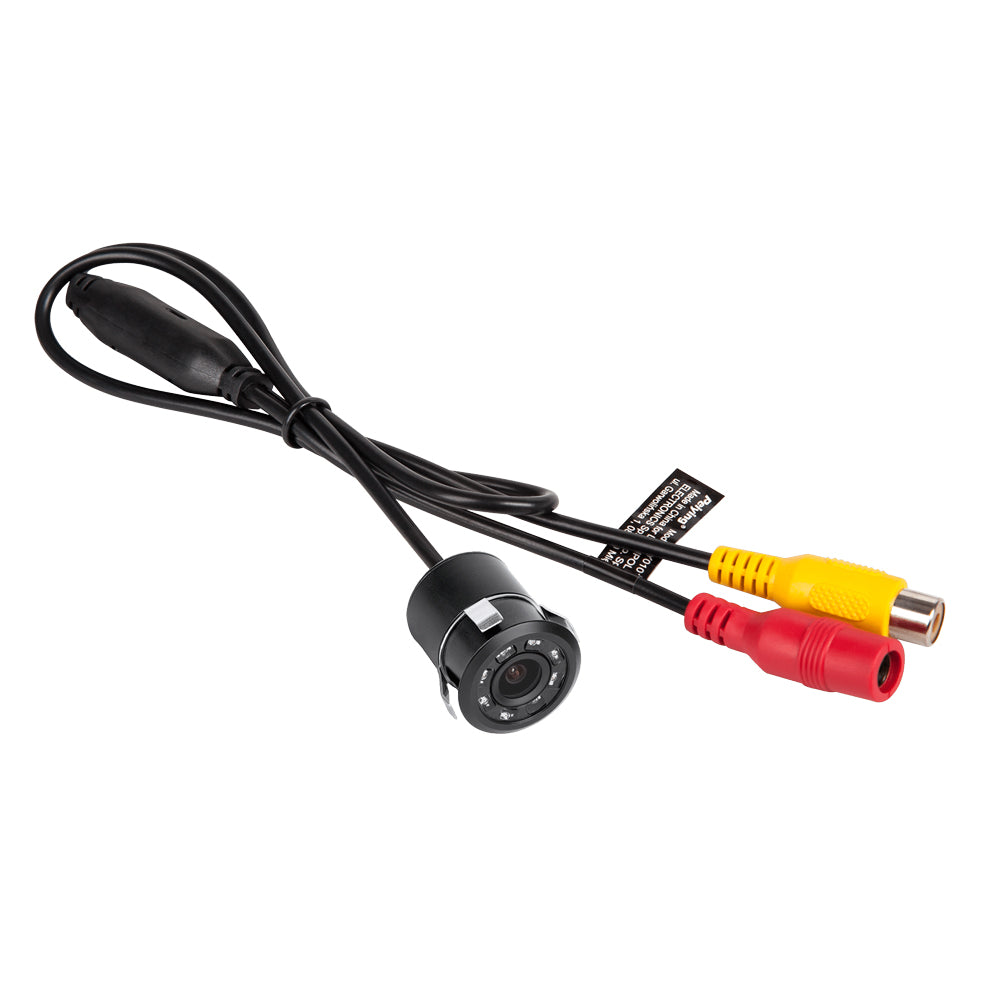

Parking camera PEIYING PY0101

The Peiying reversing camera with a resolution of 628x586 px will allow you to avoid unnecessary stress when reversing or parking. The device has a wide viewing angle of 140°, which allows you to see objects in the field that are not visible through the rear-view mirror. The system starts automatically when reverse gear is engaged, and in addition to the image from the camera, guide lines are displayed on the screen, which will greatly facilitate all maneuvers. Another advantage of the device is the possibility of mounting it both in the front and rear of the car - decide where you need it more!

The Peiying camera has an IP67 protection rating, which means that it is resistant to any weather and can easily cope with the conditions of Polish roads.

Technical parameters:

Sensor: 1/4 CMOS (color)
Resolution: 628x586 px
Viewing angle: 140 degrees
Power consumption: max.
Min. 0.5 W illumination: 0.3 Lux
Video output: CVBS 1.0 V (pp) / 75 Ohms
TV system: PAL
Night vision function: yes
IR diodes: 8
Mirror image
Automatic power on when reversing
Guide lines
Line range: 0.4 - 2 m
Protection class: IP67
Mounting: rear of the vehicle
Operating temperature: -20°C~50°C
Storage temperature: -30°C~60°C
Power supply: 12 V DC

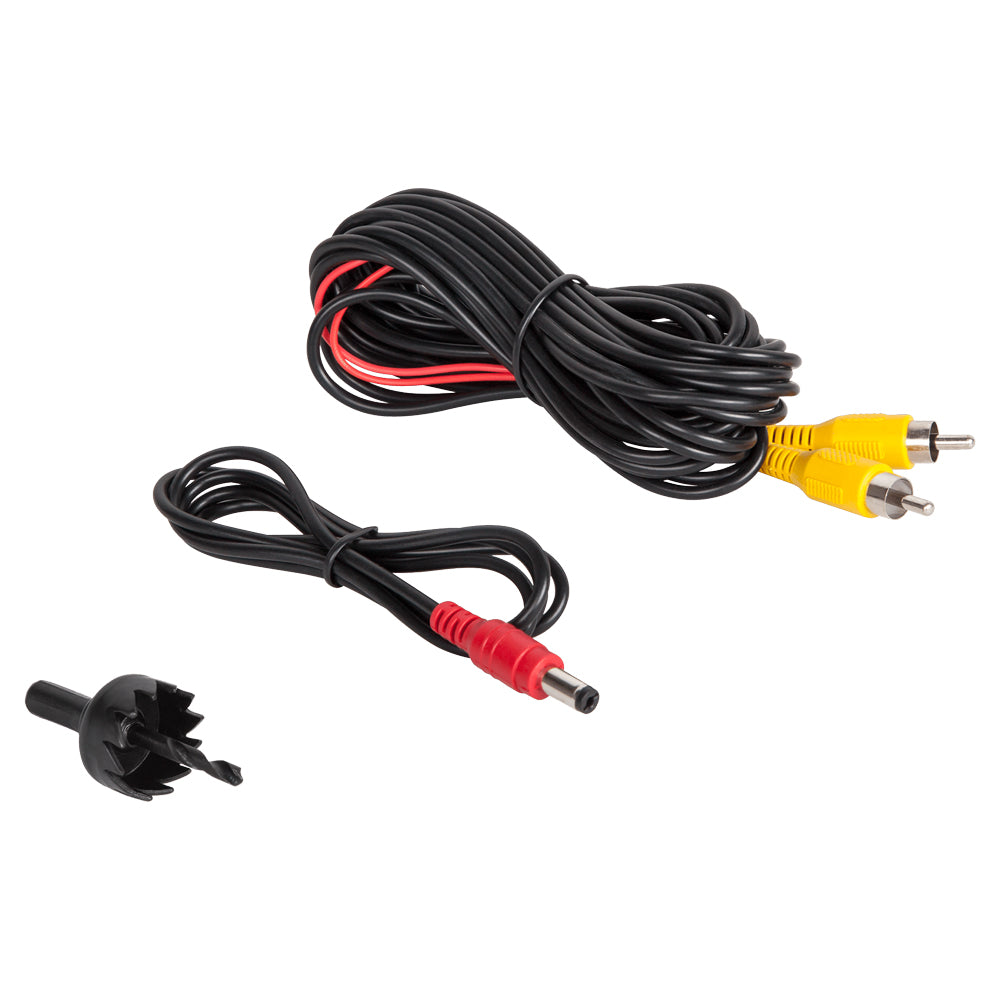

Package includes: camera, AV cable (6 m), power cable (1 m), drill, user manual
