Parking camera PEIYING PY0105N

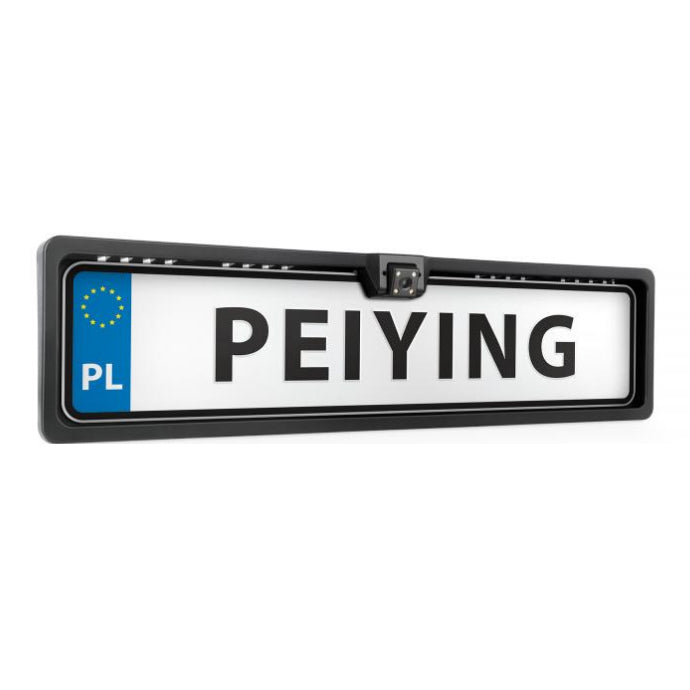

For safety and convenience when reversing, the Peiying license plate frame night vision rear camera offers excellent visibility day and night. Its advanced features and easy installation make it the perfect solution for any vehicle.

High image quality
The Peiying camera is equipped with 1 CMOS (color) sensor and 628x586 px resolution, which provides a clear and detailed image. The 140° viewing angle provides wide coverage of the area behind the vehicle, which increases safety when maneuvering. The minimum illumination of 0.3 lux and the night vision function, supported by 4 infrared LEDs, allow you to see clearly in poor lighting conditions and in complete darkness.

Functionality and ease of use
The camera automatically turns on when reverse gear is engaged, making parking and reversing easier. The mirror reflection and guide lines with a range of 0.4-2 m help to accurately estimate the distance to obstacles. The PAL television system ensures compatibility with most vehicle screens.

Durability and durability
The model features an IP67 rating, which guarantees water and dust resistance, and a wide range of operating temperatures (-20°C ~ 50°C) and storage temperatures (-30°C ~ 60°C), ensuring reliable operation in various weather conditions. The camera is powered by 12 V and consumes a maximum of 1.5 W.

Technical parameters:

Auxiliary lines
Line range: 0.4 - 2 m
TV system: PAL
Night vision function: yes
IR diodes: 4
Mirror image
Automatic switching on when reversing
Mounting: rear of the vehicle
Protection class: IP67
Operating temperature: -20°C~50°C
Storage temperature: -30°C~60°C

Camera:
Sensor: 1 CMOS (color)
Resolution: 628x586 px
Viewing angle: 140°
Min. illumination: 0.3 Lux
Video output: CVBS 1.0 V (pp) / 75 Ohm
Power consumption: max. 1.5 W
Power supply: 12 V; 100 mA

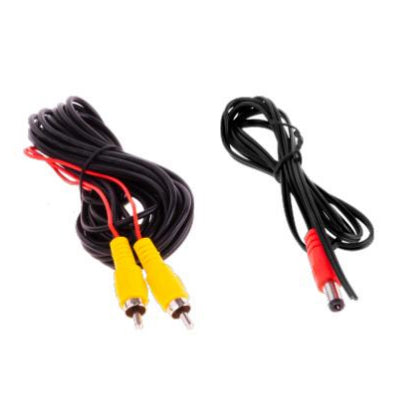

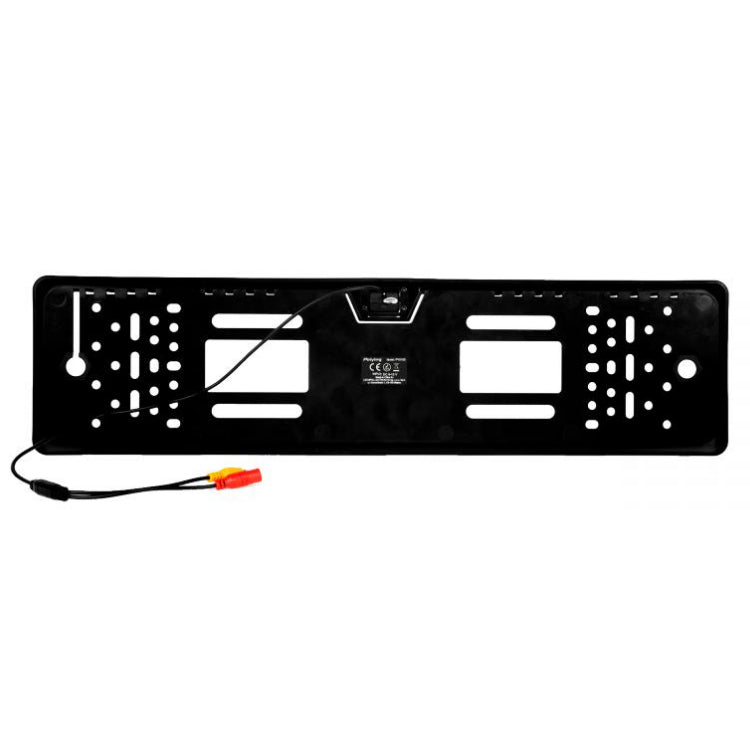

Package includes: license plate frame camera, AV cable (6 m), power cable (0.8 m), user manual
