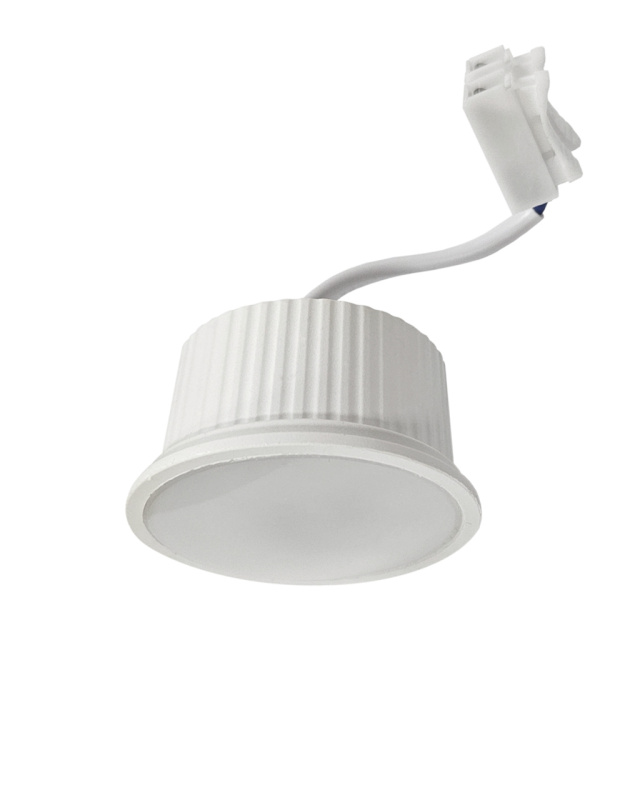

LED module TRIXLINE TR-10A
LED modul - alternativa k patici GU10, nízkoprofilový design výška 25 mm, okamžitý start <0,02 s, CRI >80, přímé připojení k elektrické instalaci pomocí kabelu s WAGO svorkou, vhodný pro vestavná svítidla a montáž do nábytku s omezeným prostorem mezi podhledem a stropem
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
49,00 Kč
40,50 Kč
excl. VAT
Unit price
/
Unavailable
TRIXLINE | SKU:
04182513
LED module TRIXLINE TR-10A
Regular price
49,00 Kč
40,50 Kč
excl. VAT
Unit price
/
Unavailable
Product description

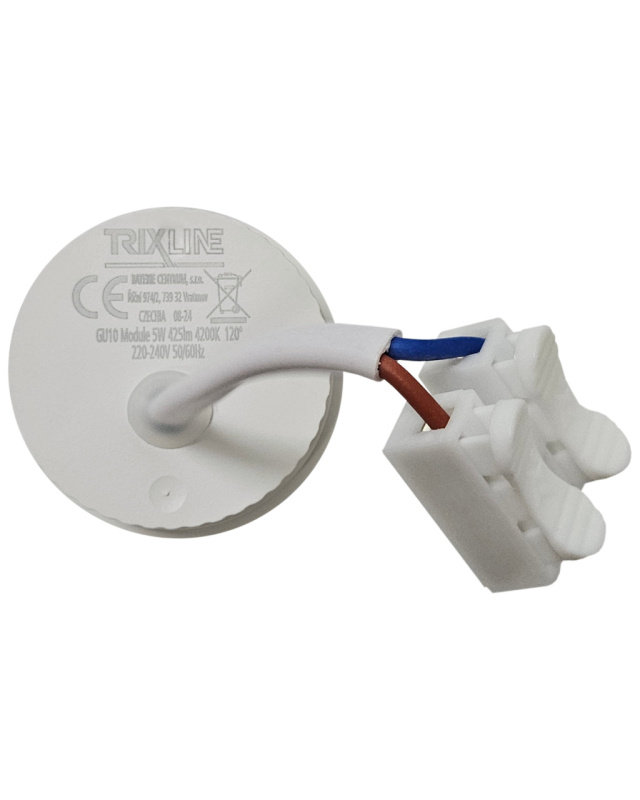

The TRIXLINE TR-10A LED module is an alternative to GU10 base light sources. The module connects directly to the electrical installation using a cable that includes a WAGO terminal for easy and safe connection. It is suitable for installation in furniture or recessed lighting fixtures where limited space between the ceiling and the suspended ceiling does not allow the use of a standard GU10 source. Thanks to its low-profile design of 25mm, it is a great solution for installations with limited space.
Compact dimensions – suitable even for installations with minimal installation space
Instant start – LED technology ensures lighting without delay (<0.02 s)
Faithful color rendering – CRI >80 allows for natural display of shades
Energy saving – lower electricity consumption with a positive impact on the environment
Easy installation – direct connection without the need for an additional socket
Technical parameters:
Power: 5W
Luminous flux: 425lm
Color temperature: 4200K (neutral white)
Beam angle: 120°
Voltage: 220-240V AC / 50-60Hz
Material: Alum+PC
Lifespan: 25,000 hours
Temperature range: -20 °C to +40 °C
Color rendering index (CRI): ?80Ra
Dimensions: o50x25mm
Net weight: 26g
Compact dimensions – suitable even for installations with minimal installation space
Instant start – LED technology ensures lighting without delay (<0.02 s)
Faithful color rendering – CRI >80 allows for natural display of shades
Energy saving – lower electricity consumption with a positive impact on the environment
Easy installation – direct connection without the need for an additional socket
Technical parameters:
Power: 5W
Luminous flux: 425lm
Color temperature: 4200K (neutral white)
Beam angle: 120°
Voltage: 220-240V AC / 50-60Hz
Material: Alum+PC
Lifespan: 25,000 hours
Temperature range: -20 °C to +40 °C
Color rendering index (CRI): ?80Ra
Dimensions: o50x25mm
Net weight: 26g
