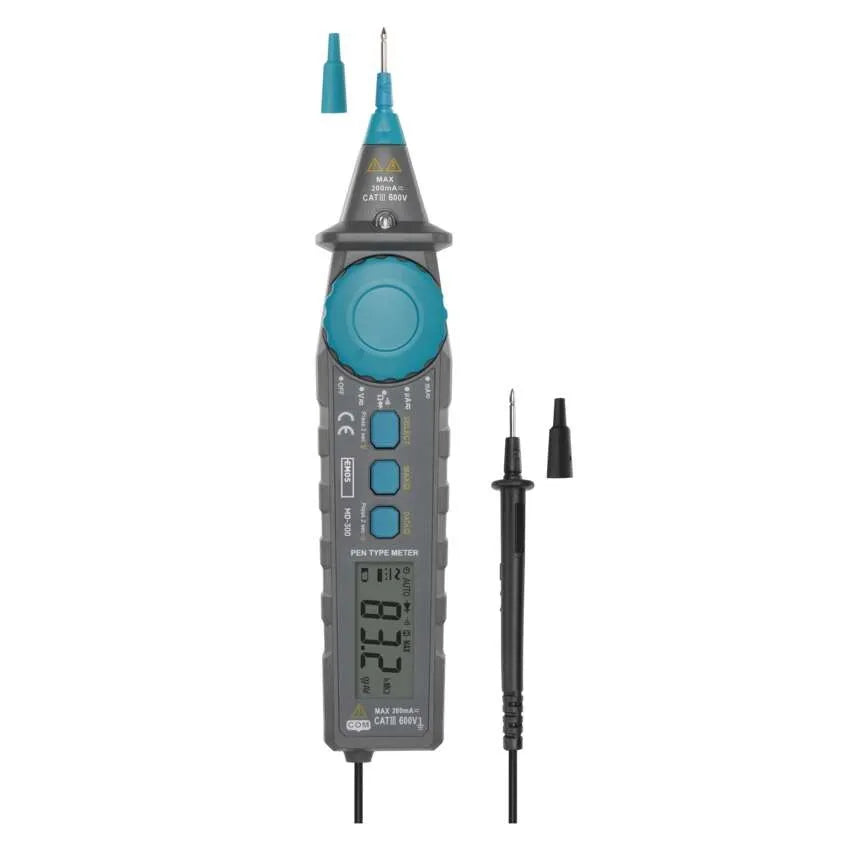

MD-300 Digital Multimeter

With the MD-300 digital multimeter, you’ll have a reliable, high-precision tool to assist you when working on electrical equipment or installing new electrical wiring.

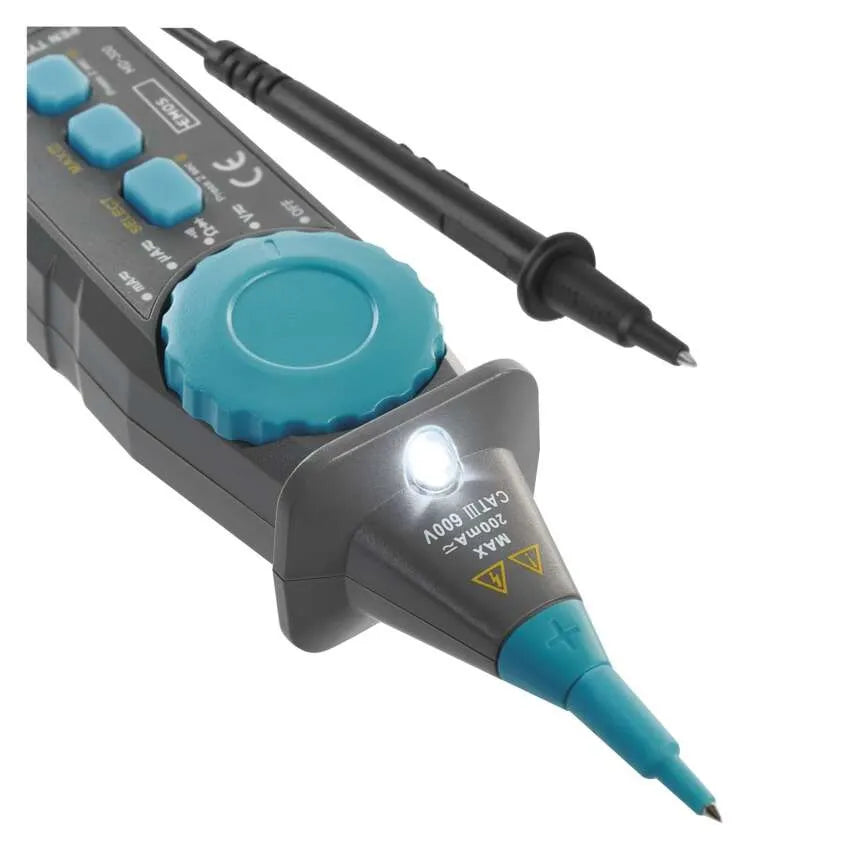

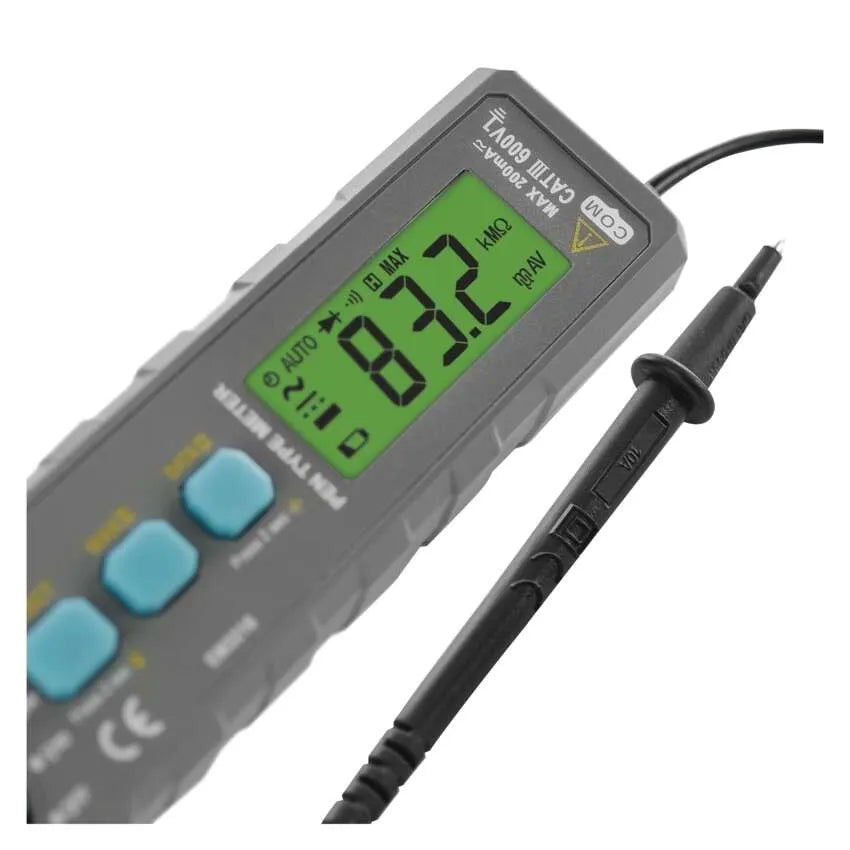

Practical features Thanks to the backlit display, you can see the measured values even in poor lighting conditions. You can also use the LED to illuminate the area being measured. When using the MD-300 digital multimeter, you’re sure to make use of the many functions it offers. These include, for example, an audible continuity test for detecting broken circuits, automatic range selection and an audible alarm.

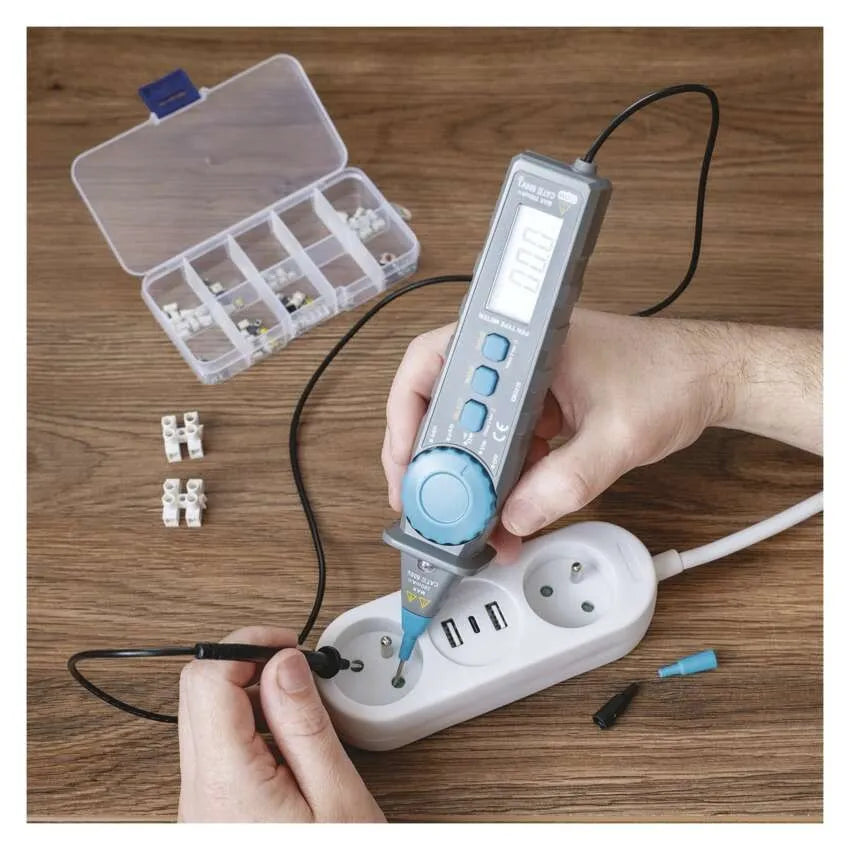

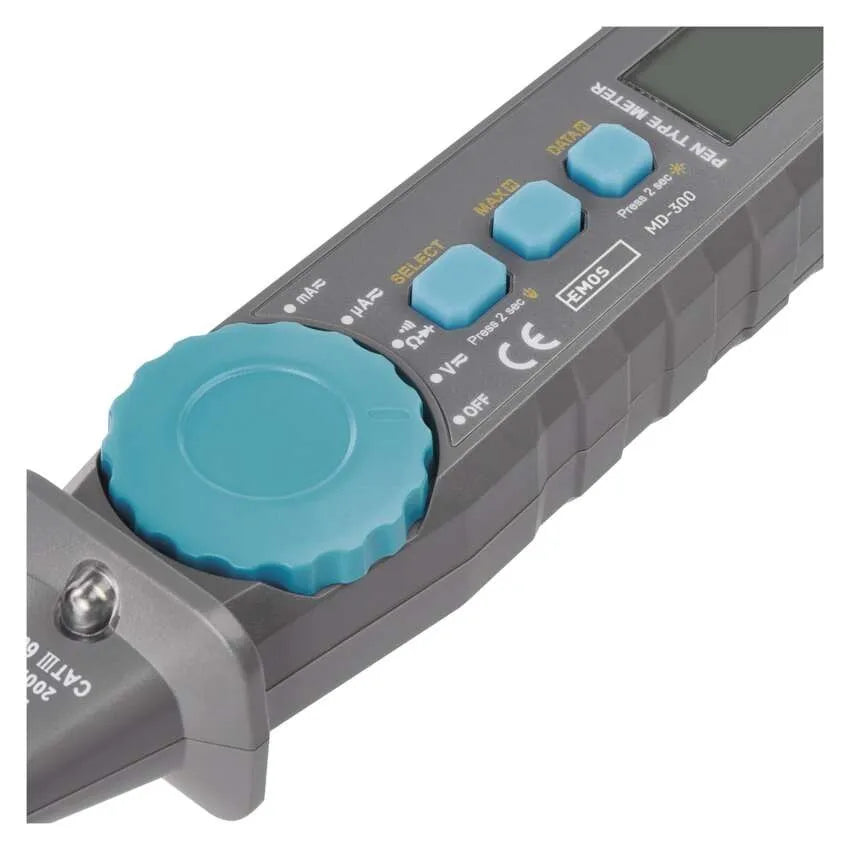

Easy handling and removable caps Simple one-handed operation via the rotary dial ensures accurate measurement of both AC and DC voltage up to 600 V, DC current and resistance, and you can also carry out diode tests. The removable cap on the test probe makes it easier to access electrical sockets. All measured and maximum values are stored, so you can review your measurements whenever you need to.

Ready to use straight away Power is supplied by 2× AAA batteries, which are included in the pack along with the test leads, so the multimeter is ready to use straight away. What’s more, thanks to the automatic switch-off and low-battery indicator, you won’t have to interrupt your work. Technical specifications: range selection: automatic AC voltage: 2–600 V
AC current: 200 µA – 200 mA DC voltage: 200 mV – 600 V DC current: 200 µA – 200 mA
Electrical resistance: 200 ? – 20 M? Circuit continuity test: yes Diode test: yes Transistor test: no Non-contact AC voltage detection: no Contact AC voltage detection: no
Battery test: no Temperature measurement: no Maximum value recording: yes Measured value recording: yes Automatic switch-off: yes Display: 3 1/2 digits Display backlight: yes

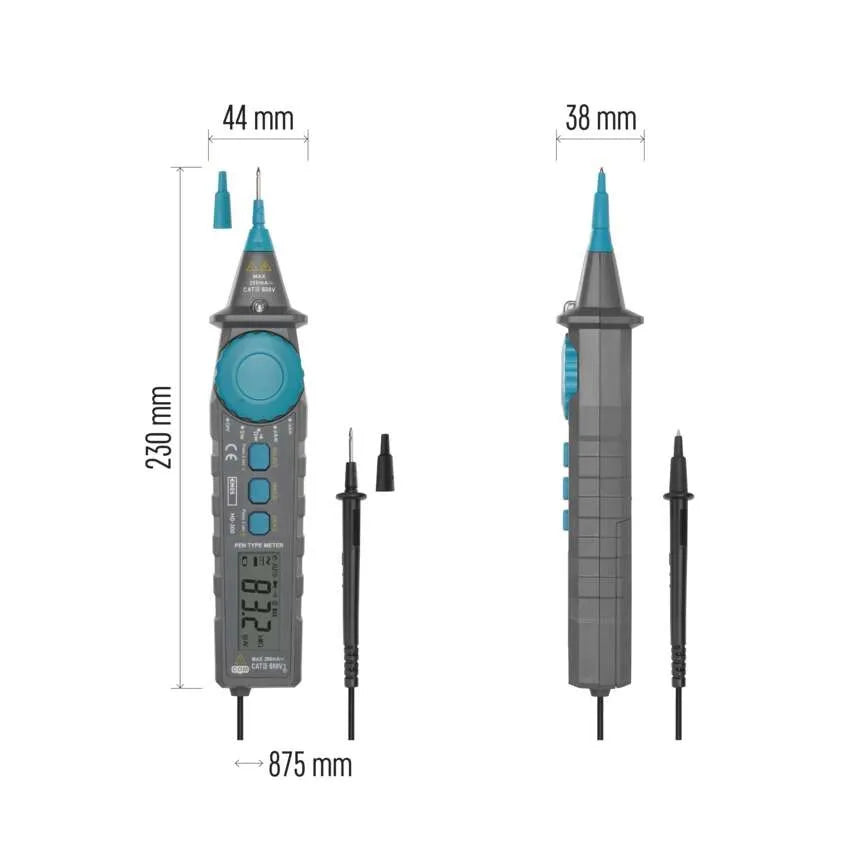

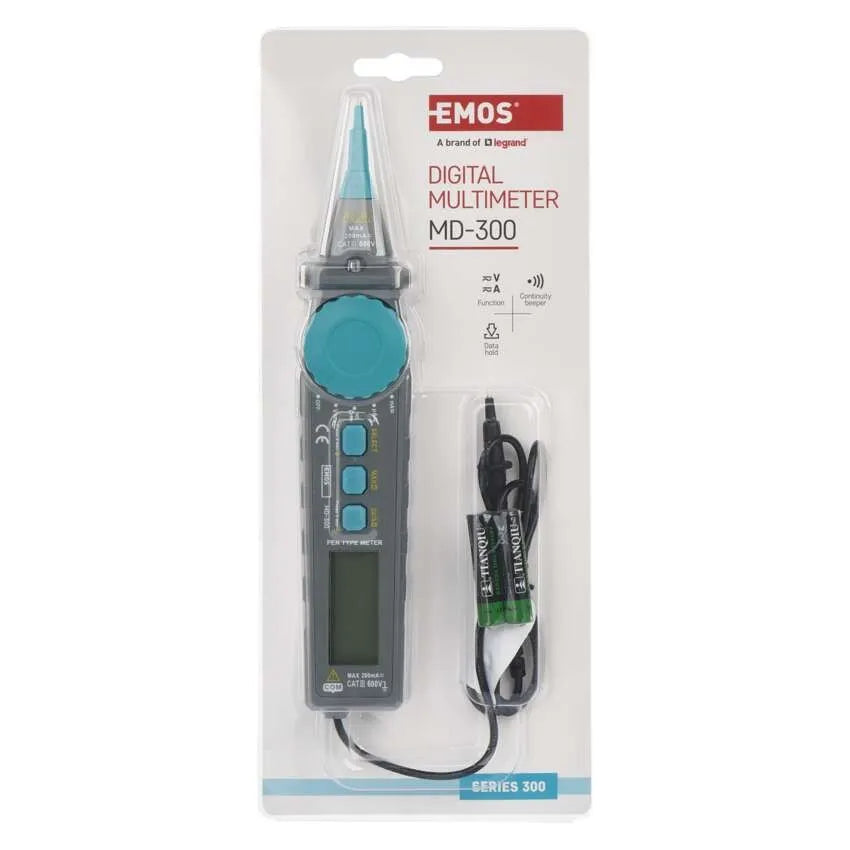

low battery indicator: yes dimensions: 44 × 38 × 230 mm power supply: 2 × 1.5 V AAA (included) Package contents: batteries, instructions, test leads
