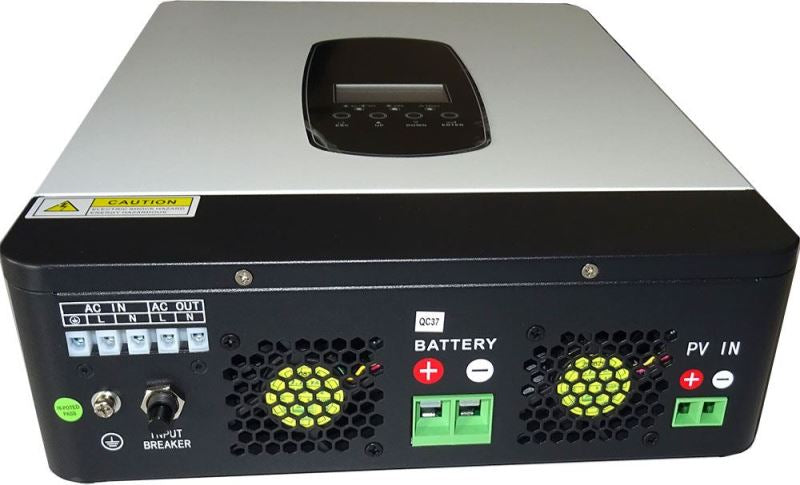

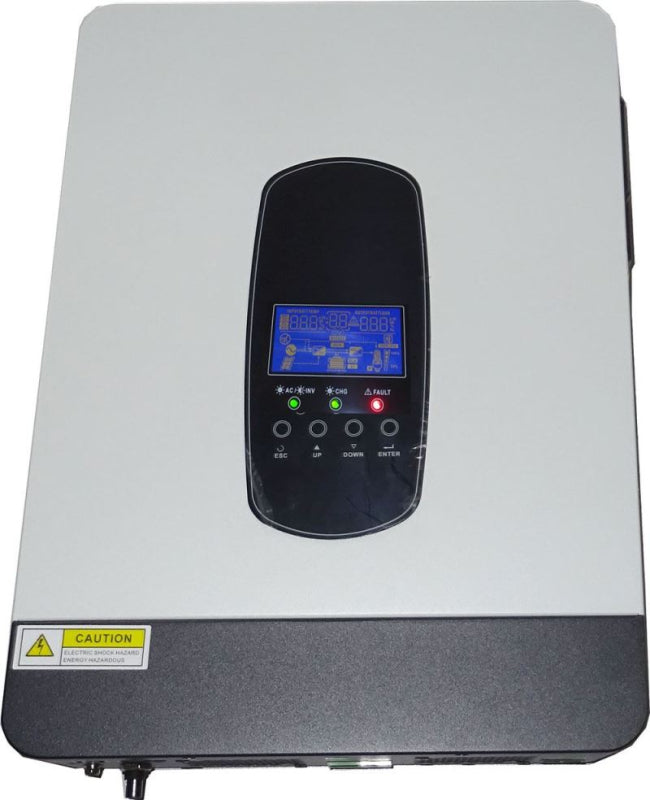

Hybrid voltage converter CARSPA MKS-2.2K, DC/AC 12V/1800W, regulated by MPPT
New
Wholesale price
Hybridní měnič napětí pro solární panely - model MKS-2.2K, vstupní napětí 12V DC, výkon 1800W, čistá sinusovka, integrovaný MPPT solární regulátor, funkce UPS se zálohováním ze sítě nebo generátoru, nastavitelná priorita zdrojů, jednofázový ostrovní výstup, LCD displej, integrovaný jistič proti zkratu, ochrany proti přehřátí a přebíjení, volitelné pracovní režimy a nastavitelné provozní parametry
Last piece
Expected shipping:
30.07.2026
Regular price
5.490,00 Kč
4.537,19 Kč
excl. VAT
Unit price
/
Unavailable
CARSPA | SKU:
04230715
Hybrid voltage converter CARSPA MKS-2.2K, DC/AC 12V/1800W, regulate...
Regular price
5.490,00 Kč
4.537,19 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Product description: hybrid voltage converter CARSPA MKS-2.2K, DC/AC 12V/1800W,regul.MPPT
The device is a combination of a pure sine wave inverter, UPS and MPPT controller for solar panels. It is therefore a backup power supply with public grid backup or generator, battery charger and MPPT solar controller, while the priority of backup can be set inversely, i.e. priority of public grid and backup from batteries or PV panels.
Product parameters:
- pure sine wave, suitable for all appliances
- MPPT solar controller for maximum yield
- single-phase islanded output without overflow (cannot be connected in parallel to DS)

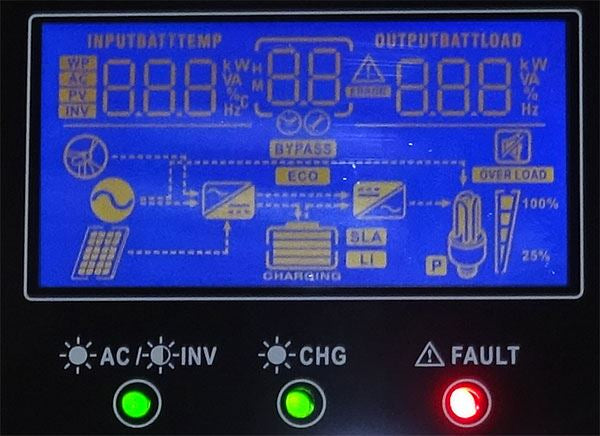

- clear and adjustable LCD display
- selectable operating modes and priority of power supplies
- adjustable operating parameters as required
- integrated short circuit / overload circuit breaker
- protection against overheating, overcharging and excessive battery discharge
- AGM and GEL batteries or LiFePO4 batteries can be used (for experienced users only)
- battery can be automatically recharged from the mains if solar power is not available
- audible warning of faulty status and malfunction
- cold start and power saving mode function
- powerful active cooling
Specifications:
- mains input voltage: 90-280 V AC
- Frequency: 50/60 Hz (auto detection)
- output: 1 phase, 230 V AC +- 5%
- inverter power: 1800 W / 2200 VA
- Peak power: 3600 W / 4000 VA for 5 sec.
- 10-20 ms switching delay.
- output waveform: pure sine wave
- battery voltage: 12 V
- maintenance voltage: 13.5 V
- Battery overvoltage: 16 V
- Battery type: AGM, GEL, LiFePO4 (must be set correctly!)
- max. charging current from mains: 60 A
- max. current of MPPT controller: 80 A
- max. panel power: 2000 W
- max. solar panel voltage (Voc): 450 V DC
- MPPT controller operating voltage range: 55 - 430 V
- Inverter power priority: solar/UPS/network-backed battery only
- Charging priority: solar / grid / solar + grid / solar only
- self-consumption: 2 W
- efficiency: 98%
- dimensions: 405 x 286 x 96 mm
- operating temperature: 0 to 55°C
- weight: 5 kg
- degree of protection: IP20
This product requires professional installation.
The device is a combination of a pure sine wave inverter, UPS and MPPT controller for solar panels. It is therefore a backup power supply with public grid backup or generator, battery charger and MPPT solar controller, while the priority of backup can be set inversely, i.e. priority of public grid and backup from batteries or PV panels.
Product parameters:
- pure sine wave, suitable for all appliances
- MPPT solar controller for maximum yield
- single-phase islanded output without overflow (cannot be connected in parallel to DS)
- clear and adjustable LCD display
- selectable operating modes and priority of power supplies
- adjustable operating parameters as required
- integrated short circuit / overload circuit breaker
- protection against overheating, overcharging and excessive battery discharge
- AGM and GEL batteries or LiFePO4 batteries can be used (for experienced users only)
- battery can be automatically recharged from the mains if solar power is not available
- audible warning of faulty status and malfunction
- cold start and power saving mode function
- powerful active cooling
Specifications:
- mains input voltage: 90-280 V AC
- Frequency: 50/60 Hz (auto detection)
- output: 1 phase, 230 V AC +- 5%
- inverter power: 1800 W / 2200 VA
- Peak power: 3600 W / 4000 VA for 5 sec.
- 10-20 ms switching delay.
- output waveform: pure sine wave
- battery voltage: 12 V
- maintenance voltage: 13.5 V
- Battery overvoltage: 16 V
- Battery type: AGM, GEL, LiFePO4 (must be set correctly!)
- max. charging current from mains: 60 A
- max. current of MPPT controller: 80 A
- max. panel power: 2000 W
- max. solar panel voltage (Voc): 450 V DC
- MPPT controller operating voltage range: 55 - 430 V
- Inverter power priority: solar/UPS/network-backed battery only
- Charging priority: solar / grid / solar + grid / solar only
- self-consumption: 2 W
- efficiency: 98%
- dimensions: 405 x 286 x 96 mm
- operating temperature: 0 to 55°C
- weight: 5 kg
- degree of protection: IP20
This product requires professional installation.
