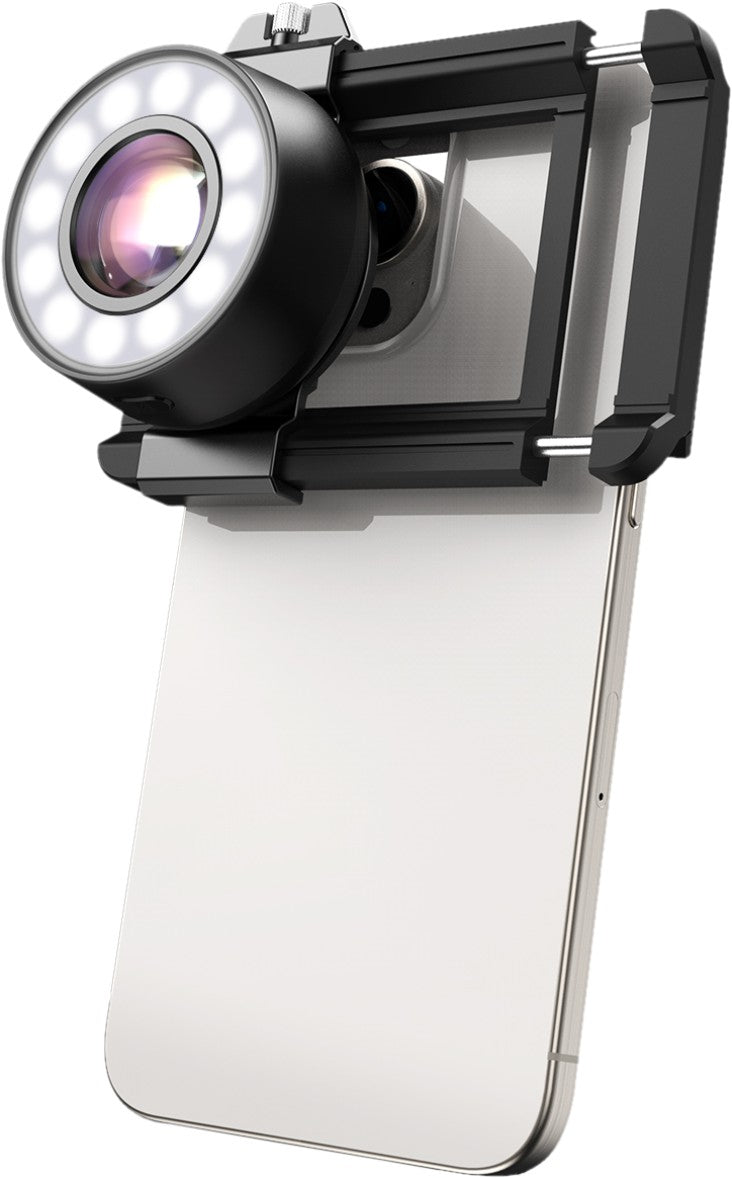

LEVENHUK Kelvin TMC20 smartphone microscope

The Levenhuk Kelvin TMC20 is a smartphone microscope with a clip-on microscope that offers 120x optical magnification. It easily attaches to your phone and allows you to capture details that are invisible to the naked eye: the texture of materials, the fine details of jewelry, the texture of a print or extreme macro images of food. Your images will be instantly ready for social media posts, for Reels and live streaming.

If you need the whole subject to be sharp without a blurry background, you can use a disc aperture to increase the depth of field. When you put it on the lens, everything from the foreground to the background will be perfectly sharp.

With 19 lighting modes, you have full control over the light. You can change direction, brightness and colour temperature. The warm light of 3500 K is suitable for organic objects, while the cold light of 6500 K is ideal for metals. UV light reveals safety features and enhances the beauty of minerals. With this product, you always have everything you need on hand to create professional content.

The light lasts up to 2 hours on a single charge. You can charge it as needed from a power bank, computer or AC adapter. The microscope can also be used while charging.

The Kelvin TMC20 microscope can also be used without a smartphone: just attach the eyepiece and you can use the device as a powerful magnifier.

120x optical magnification for smartphone without digital zoom - clear details without software distortion
Multi-lens optics with fully multiple anti-reflective coatings preserve natural colours and brightness
Easy depth of field adjustment with physical disc aperture
19 lighting modes for full control over the image - adjust brightness, color temperature and light direction; UV mode helps reveal hidden marks and blemishes
Support for additional lens filters that provide better results than smartphone software filters
Can be charged from a computer, power bank or AC adapter
Easily attaches to your phone using an adapter with EVA pads for scratch protection and a secure fit
Can also be used without a smartphone - the microscope can be used as a powerful magnifier when the eyepiece is attached
Compatible with any iPhone or Android smartphone

Kit contents:

Microscope for smartphone
Adapter for smartphone
Disk aperture
Eyepiece
Case
Cleaning cloth
USB Type-C cable
Soft EVA spacers (9 pieces)
Instructions for use and warranty card

Use the soft EVA spacers to adjust the smartphone adapter to the thickness and width of your phone.

Specifications:

Type: smartphone microscope
Compatible devices iPhone and Android smartphones
Optical design: 6 elements in 4 groups
Optics material: optical glass
Optics surface treatment: multiple anti-reflective coating on all optical elements
Magnification, x: 120
Lens diameter (aperture), mm: 22
Focusing distance, mm: 10
LED illumination: 3 modes: full circle, left half circle, right half circle
Visible light color temperature: 2 modes: warm light (3500 ± 200 K), cold light (6500 ± 200 K)
UV light: 1 mode: full circle
Brightness: 3 levels
Compatible lenses: 67 mm
Filter compatibility: 37 mm
Power: Built-in 3.7 V, 110 mA-h lithium-ion battery; rechargeable via USB Type-C cable (included) from a 5 V / 1 A DC source (power bank, computer, AC adapter)
Charging time: 90 min
Operating time: 70-120 min
Charging indicator
Ports: USB Type-C
