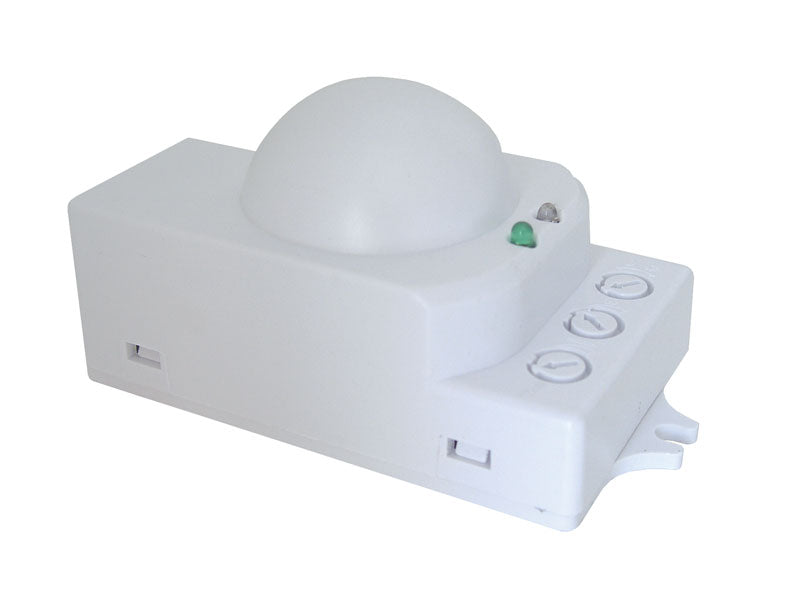

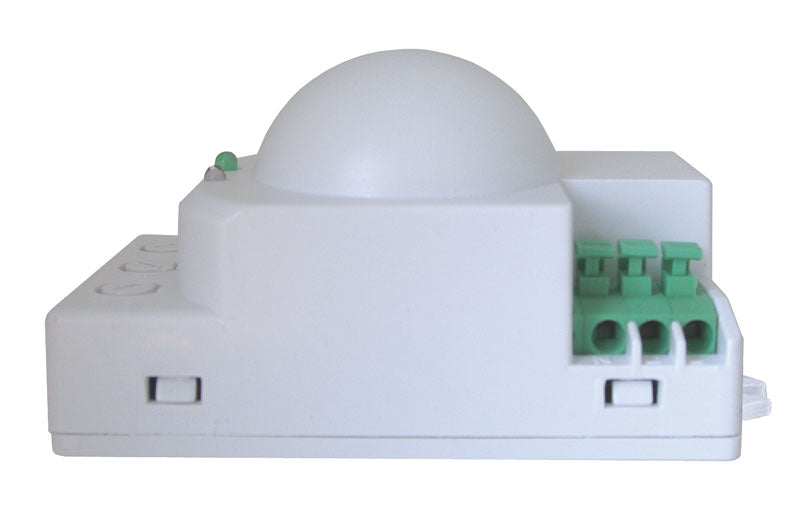

Microwave motion sensor ST701

It works on the principle of radar - it emits 5.8GHz microwave radiation, monitors its reflections and is activated in case of space disturbance. It works even through thin walls or doors. Ideal for lighting complex areas where conventional PIR motion sensors are not effective.


Technical parameters:

- Power supply: 200-240 V AC
- load: 1200 W - resistive, 300 W inductive
- standby power consumption: 0.9 W
- transmitting microwave power: <0.2 mW
- transmission frequency: 5.8GHz
- detection angle: 360 ° vertically, 180 ° horizontally
- ambient light blocking:> 3LUX to> 2000LUX (optional)
- light time: 10s-12min (optional)
- installation height: wall 1.5–3.5 m, ceiling 2–8 m
- sensor sensitivity control: 10–100%
- dimensions: 72 × 46 × 42 mm
