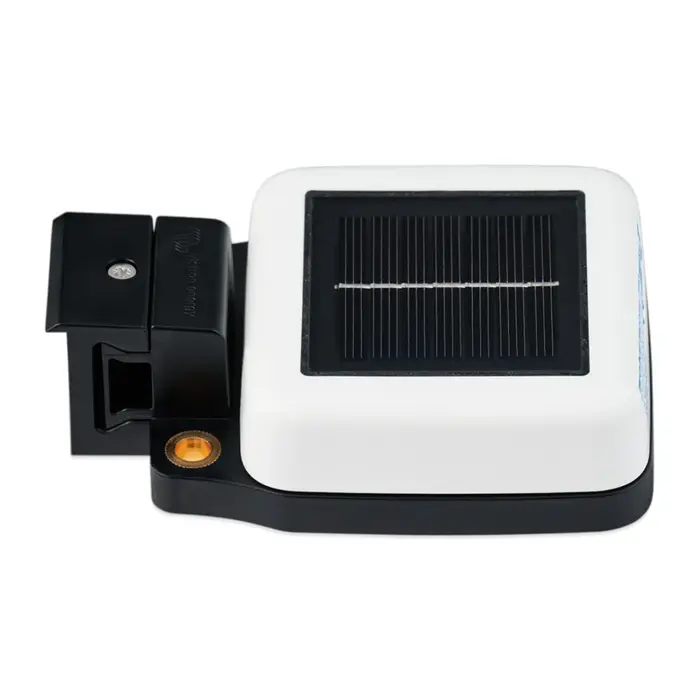

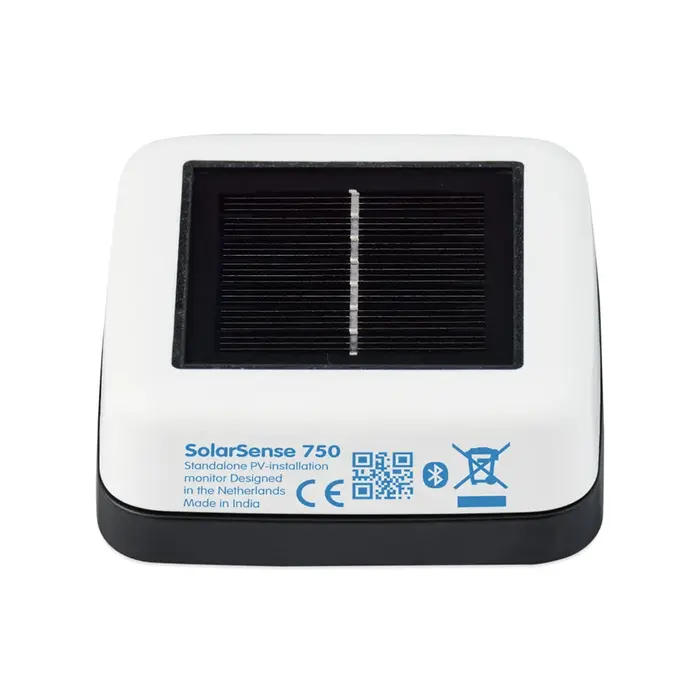

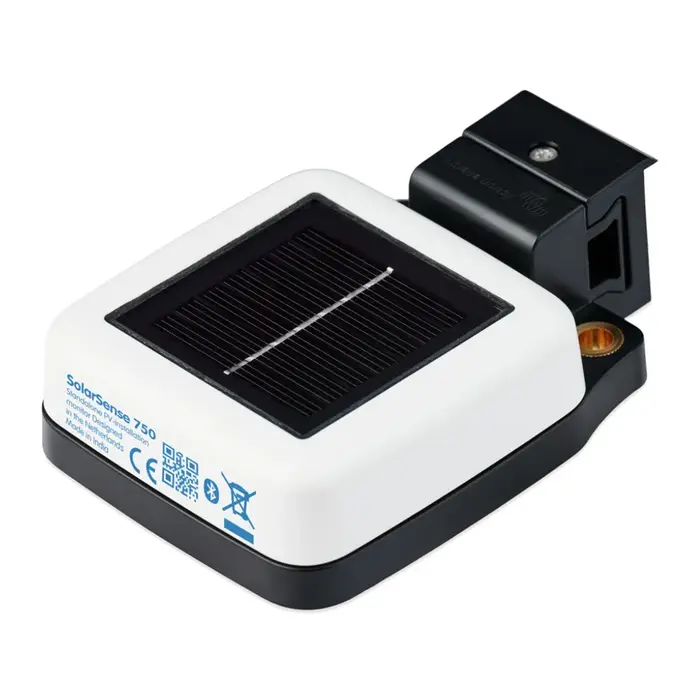

Victron Energy SolarSense 750 PV Installation Monitor
New
Monitor fotovoltaické instalace - měření intenzity slunečního záření, teploty článku a odhadovaného výkonu FV systému, bezdrátová komunikace Bluetooth BLE (Instant Readout), energeticky soběstačný díky integrovanému solárnímu panelu, bez nutnosti kabeláže, vhodný pro ostrovní i síťové systémy, rychlá instalace
Last piece
Expected shipping:
15.06.2026
Regular price
2.199,00 Kč
1.817,36 Kč
excl. VAT
Unit price
/
Unavailable
VICTRON ENERGY | SKU:
06446984
Victron Energy SolarSense 750 PV Installation Monitor
Regular price
2.199,00 Kč
1.817,36 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The Victron Energy SolarSense 750 is a stand-alone device designed for monitoring photovoltaic installations. It provides accurate data on solar intensity, cell temperature and estimated system output, allowing you to optimize solar energy use and monitor the status of your PV installation.
The device is fully wireless and energy self-sufficient thanks to the integrated solar panel. Communication is via Bluetooth technology (Instant Readout via BLE ads), allowing for fast installation without the need for cabling. SolarSense 750 is suitable for both island and networked systems.
Main features and functions:
Optimization of PV energy utilization.
Provides real data on available solar power, allowing you to manage consumption efficiently and use surplus energy for example for additional loads.
Support for PV system design
Can be used as a pilot device to measure yield in different locations, panel orientations and seasons.
Fully wireless operation
Integrated solar panel provides power without an external power source. Data transmission is via Bluetooth (BLE).
Configuration via the VictronConnect app
Setting the installation peak power (STC) and temperature compensation of the system.
Monitoring of current irradiation, estimated power, daily yield and cell temperature.
Monitoring via GX device
After activating the Bluetooth sensor in the GX device, the values can be monitored in the device menu (irradiance, cell temperature, installation power, daily yield, internal battery voltage).
Internal data storage
Trends (irradiation, power, temperature): 31 days
History (max daily irradiation, min/max daily power, min/max temperature, daily yield): 730 days
Durable design
IP65 protection for outdoor installations.
Technical parameters:
Power supply:
Self-powered (integrated solar panel).
Internal battery: rechargeable 40 mAh / 3.6 V
Operating conditions:
Operating temperature: -40 to +85 °C
Protection rating: IP65
Measurement and resolution:
Irradiance: 0.1 W/m2
Estimated solar power: 1 W
Daily yield: 1 Wh
Temperature: 0.1 °C
Data storage - trends:
Stored data: irradiance, estimated output, temperature
Storage time: 31 days
Data storage - history:
Data stored: max. daily irradiance, min./max. daily estimated power, min./max. daily temperature, daily estimated yield
Storage time: 730 days
Mechanical design:
Material and color: Black PPO / PPE, White PC
Mounting holes: 2 × 6.5 mm ?
Dimensions (h × w × d): 110 × 78 × 32 mm
Weight: 200 g (including package)
Standards:
Emissions, resistance: EN-IEC 62052-11
